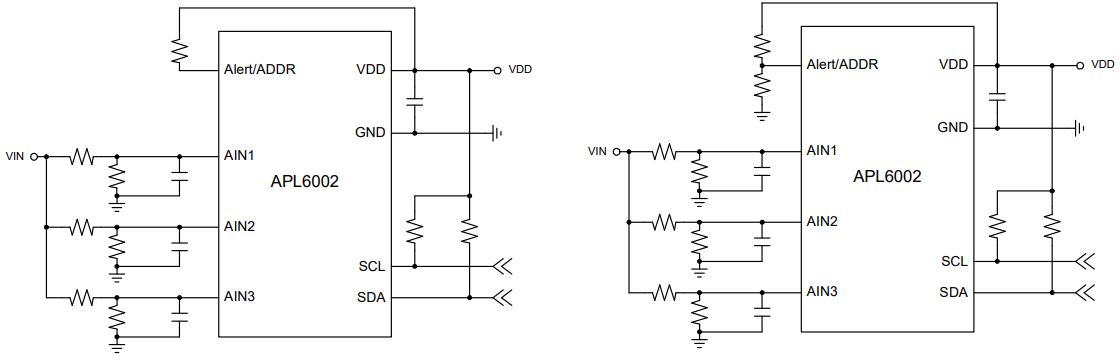

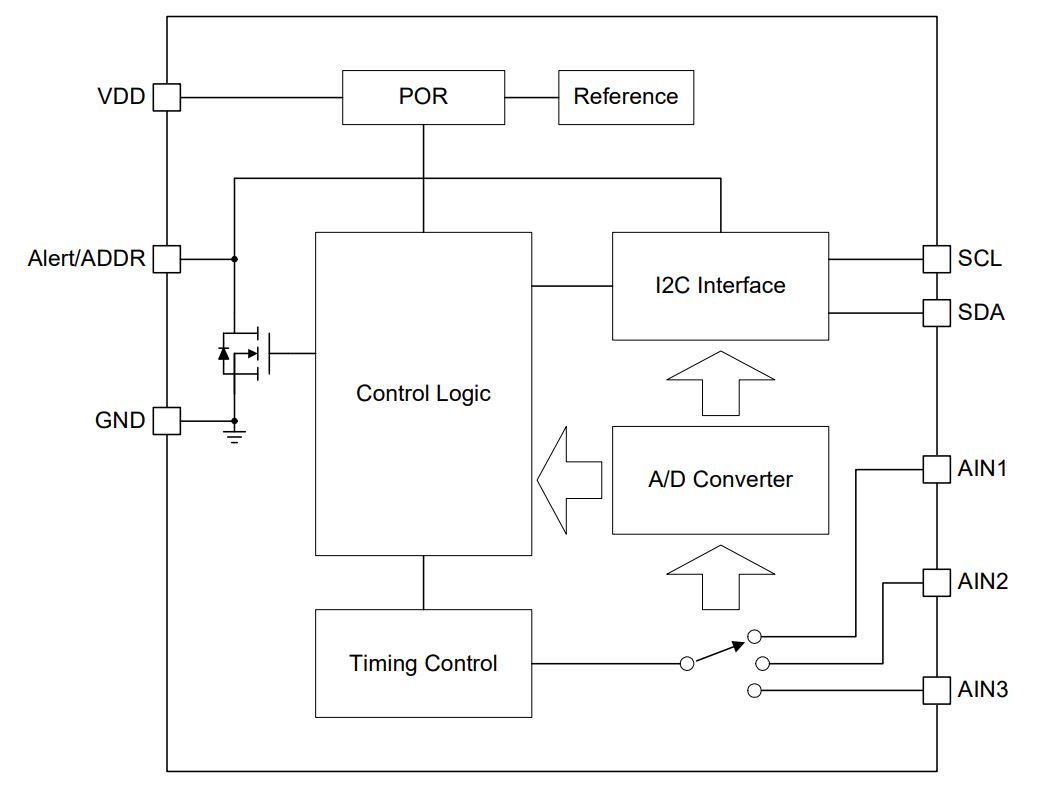

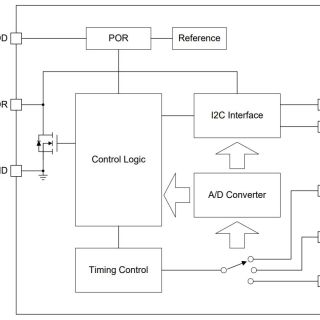

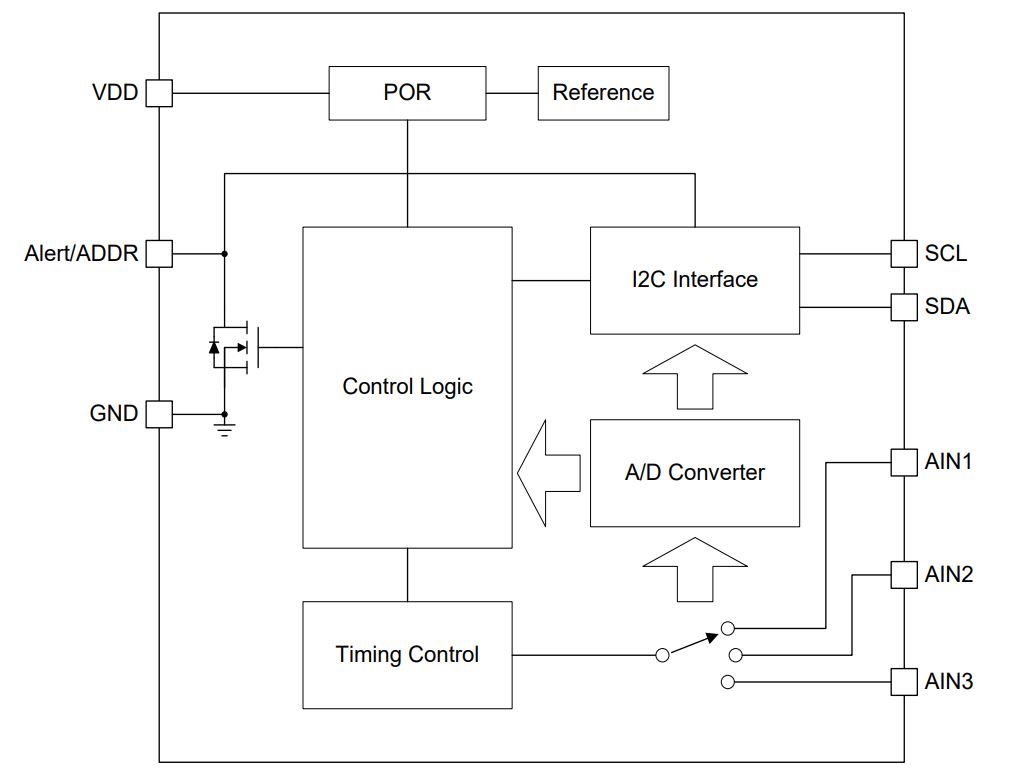

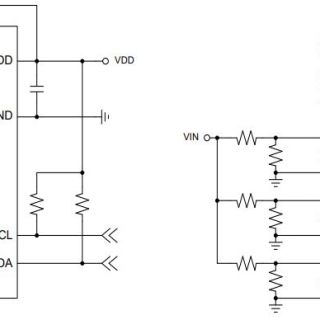

APL6002
Active
Low-Power, 8-bit, 3-Channel Analog to Digital Converters
Features
General Description
The APL6002 is a precision analog-to-digital converters (ADCs) with 8 bits of resolution, which designed with precision, low power and ease of implementation in mind. Data are transferred via an I2C-compatible serial interface. Three voltage sensing inputs are available for monitoring the temperature of the system. It measures voltage form the monitor place to GND by NTC resistor divider voltages. The sensed voltages are digitized and interfaced with microprocessor by I2C bus for advanced power management procedures. The APL6002 operates from a single power supply ranging from 2.8V to 5.5V. This APL6002 is available in SOT-23-8 package.
Features
- Supply Input Voltages Range: 2.8V to 5.5V
- 100uA Low Supply Current
- 3-Ch Analog Voltage Input: AIN1, AIN2, AIN3
- High Accuracy Nonlinearity: ±1.5LSB
- High Accuracy A/D Resolution: 10mV
- High Accuracy A/D Full Scale Range: 1 ~ 3.56V
- Built-in Alert Flag Functions
- Built-in I2C Address Programming Functions
- I2C interface with 8-bit AD converter
- SOT-23-8 with Lead Free & RoHS compliant
General Description
The APL6002 is a precision analog-to-digital converters (ADCs) with 8 bits of resolution, which designed with precision, low power and ease of implementation in mind. Data are transferred via an I2C-compatible serial interface. Three voltage sensing inputs are available for monitoring the temperature of the system. It measures voltage form the monitor place to GND by NTC resistor divider voltages. The sensed voltages are digitized and interfaced with microprocessor by I2C bus for advanced power management procedures. The APL6002 operates from a single power supply ranging from 2.8V to 5.5V. This APL6002 is available in SOT-23-8 package.

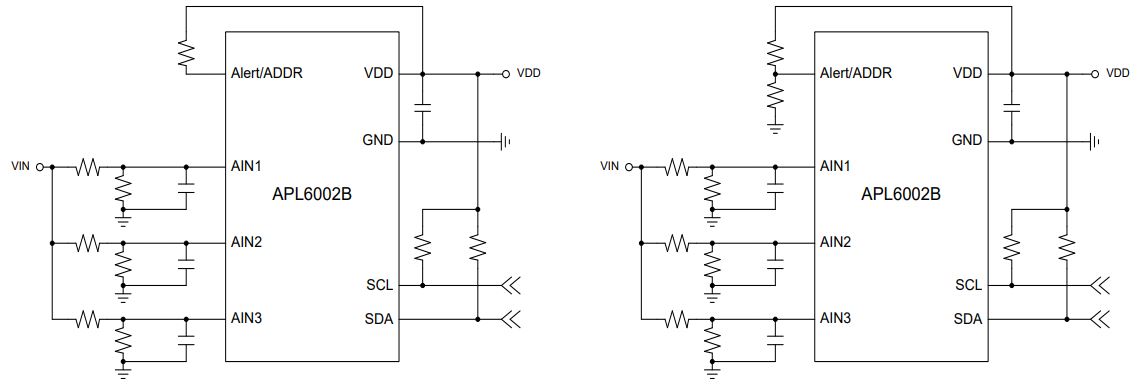

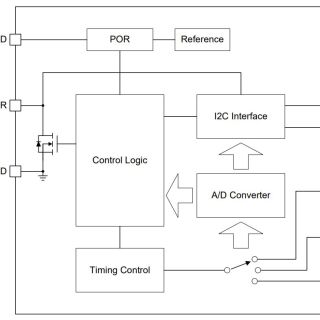

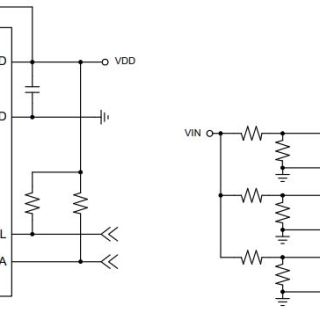

APL6002B
Active
Low-Power, 8-bit, 3-Channel Analog to Digital Converters
Features
General Description
The APL6002B is a precision analog-to-digital converters (ADCs) with 8 bits of resolution, which designed with precision, low power and ease of implementation in mind. Data are transferred via an I2C-compatible serial interface. Three voltage sensing inputs are available for monitoring the temperature of the system. It measures voltage form the monitor place to GND by NTC resistor divider voltages. The sensed voltages are digitized and interfaced with microprocessor by I2C bus for advanced power management procedures. The APL6002B operates from a single power supply ranging from 4.5V to 5.5V. This APL6002B is available in SOT-23-8 package.
Features
- Supply Input Voltages Range: 4.5V to 5.5V
- 100uA Low Supply Current
- 3-Ch Analog Voltage Input: AIN1, AIN2, AIN3
- High Accuracy Nonlinearity: ±1.5LSB
- High Accuracy A/D Resolution : 10mV
- High Accuracy A/D Full Scale Range: 1 ~ 3.56V
- Built-in Alert Flag Functions
- Built-in I2C Address Programming Functions
- I2C interface with 8-bit AD converter
- SOT-23-8 with Lead Free & RoHS compliant
General Description
The APL6002B is a precision analog-to-digital converters (ADCs) with 8 bits of resolution, which designed with precision, low power and ease of implementation in mind. Data are transferred via an I2C-compatible serial interface. Three voltage sensing inputs are available for monitoring the temperature of the system. It measures voltage form the monitor place to GND by NTC resistor divider voltages. The sensed voltages are digitized and interfaced with microprocessor by I2C bus for advanced power management procedures. The APL6002B operates from a single power supply ranging from 4.5V to 5.5V. This APL6002B is available in SOT-23-8 package.

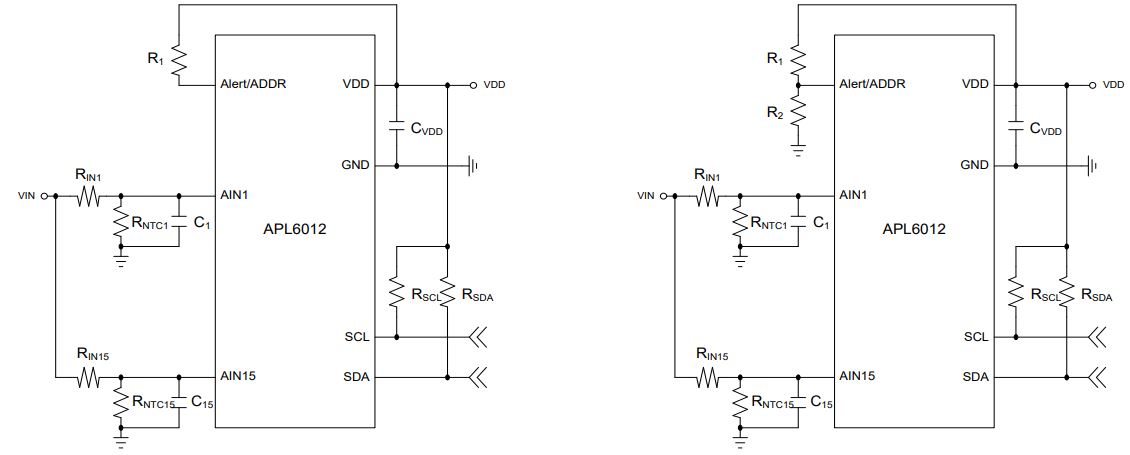

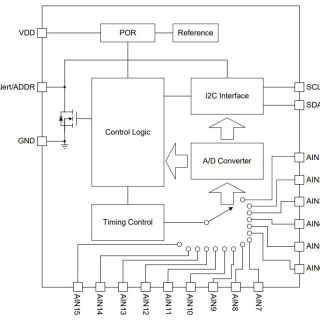

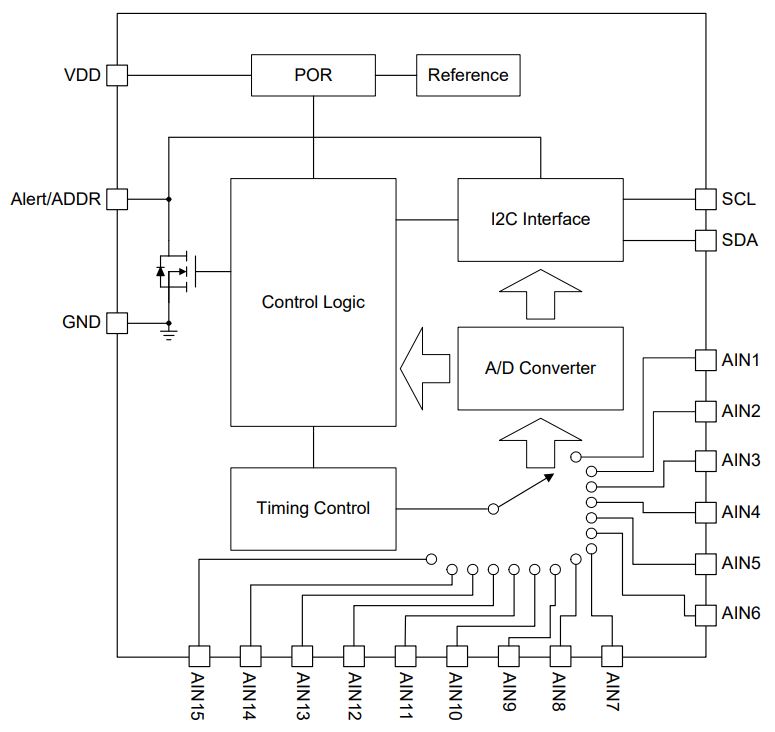

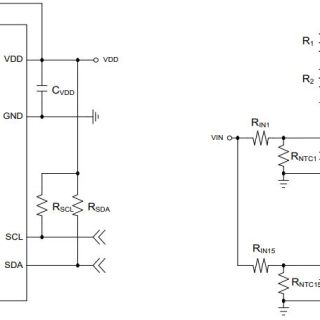

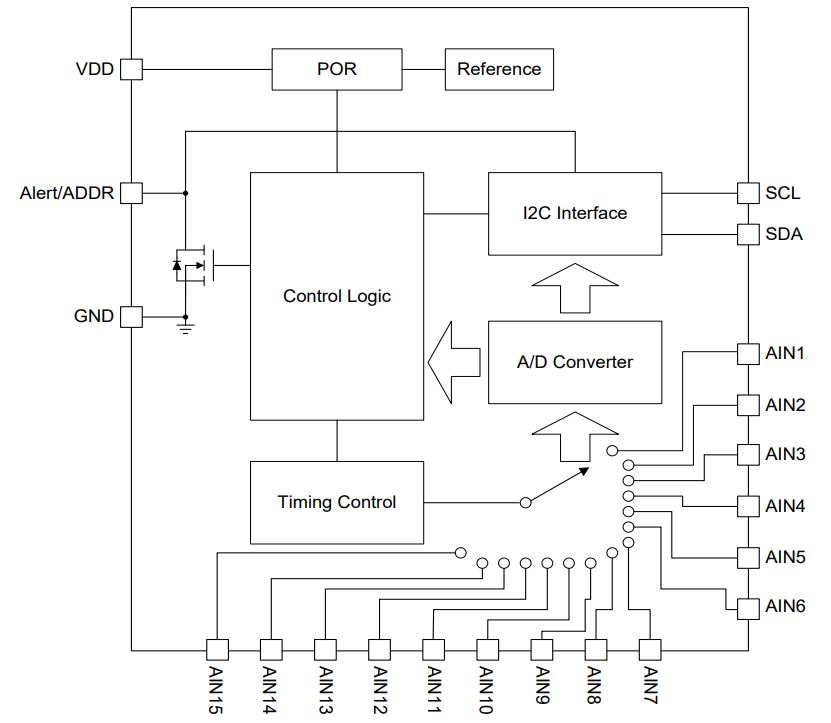

APL6012
Active
Low-Power, 8-bit, 15-Channel Analog to Digital Converters
Features
General Description
The APL6012 is a precision analog-to-digital converters (ADCs) with 8 bits of resolution, which designed with precision, low power and ease of implementation in mind. Data are transferred via an I2C-compatible serial interface. Three voltage sensing inputs are available for monitoring the temperature of the system. It measures voltage form the monitor place to GND by NTC resistor divider voltages. The sensed voltages are digitized and interfaced with microprocessor by I2C bus for advanced power management procedures. The APL6012 operates from a single power supply ranging from 2.8V to 5.5V. This APL6012 is available in TQFN3x3-20P package.
Features
- Supply Input Voltages Range: 2.8V to 5.5V
- 100uA Low Support Current
- 15-Ch Analog Voltage Input: AIN1, AIN2, AIN3, AIN4, AIN5, AIN6, AIN7, AIN8, AIN9, AIN10, AIN11, AIN12, AIN13, AIN14, AIN15
- High Accuracy Nonlinearity: ±1.5LSB
- High Accuracy A/D Resolution: 10mV
- High Accuracy A/D Full Scale Range: 1 ~ 3.56V
- Built-in Alert Flag Functions
- Built-in I2C Address Programming Functions
General Description
The APL6012 is a precision analog-to-digital converters (ADCs) with 8 bits of resolution, which designed with precision, low power and ease of implementation in mind. Data are transferred via an I2C-compatible serial interface. Three voltage sensing inputs are available for monitoring the temperature of the system. It measures voltage form the monitor place to GND by NTC resistor divider voltages. The sensed voltages are digitized and interfaced with microprocessor by I2C bus for advanced power management procedures. The APL6012 operates from a single power supply ranging from 2.8V to 5.5V. This APL6012 is available in TQFN3x3-20P package.

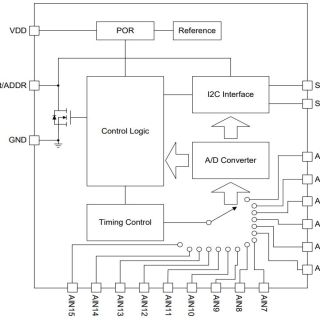

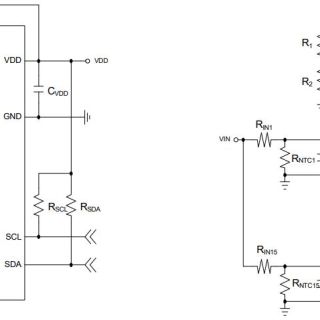

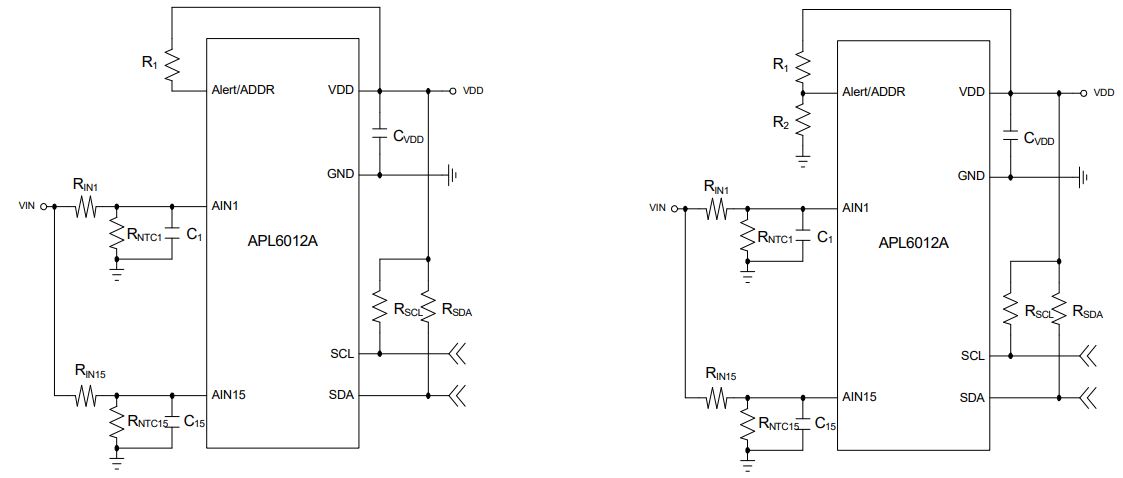

APL6012A
Active
Low-Power, 8-bit, 15-Channel Analog to Digital Converters
Features
General Description
The APL6012A is a precision analog-to-digital converters (ADCs) with 8 bits of resolution, which designed with precision, low power and ease of implementation in mind. Data are transferred via an I2C-compatible serial interface. Three voltage sensing inputs are available for monitoring the temperature of the system. It measures voltage form the monitor place to GND by NTC resistor divider voltages. The sensed voltages are digitized and interfaced with microprocessor by I2C bus for advanced power management procedures. The APL6012A operates from a single power supply ranging from 2.8V to 5.5V. This APL6012A is available in TQFN3x3-20P package.
Features
- Supply Input Voltages Range: 2.8V to 5.5V
- 100uA Low Support Current
- 15-Ch Analog Voltage Input: AIN1, AIN2, AIN3, AIN4, AIN5, AIN6, AIN7, AIN8, AIN9, AIN10, AIN11, AIN12, AIN13, AIN14, AIN15
- High Accuracy Nonlinearity: ±3LSB
- High Accuracy A/D Resolution: 10mV
- High Accuracy A/D Full Scale Range: 0 ~ 2.56V
- Built-in Alert Flag Functions
- Built-in I2C Address Programming Functions
General Description
The APL6012A is a precision analog-to-digital converters (ADCs) with 8 bits of resolution, which designed with precision, low power and ease of implementation in mind. Data are transferred via an I2C-compatible serial interface. Three voltage sensing inputs are available for monitoring the temperature of the system. It measures voltage form the monitor place to GND by NTC resistor divider voltages. The sensed voltages are digitized and interfaced with microprocessor by I2C bus for advanced power management procedures. The APL6012A operates from a single power supply ranging from 2.8V to 5.5V. This APL6012A is available in TQFN3x3-20P package.
