APL3693
Active
9V to 18V eFuse With Fast Overvoltage Response Time
Features
General Description

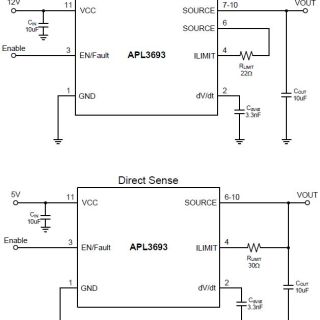

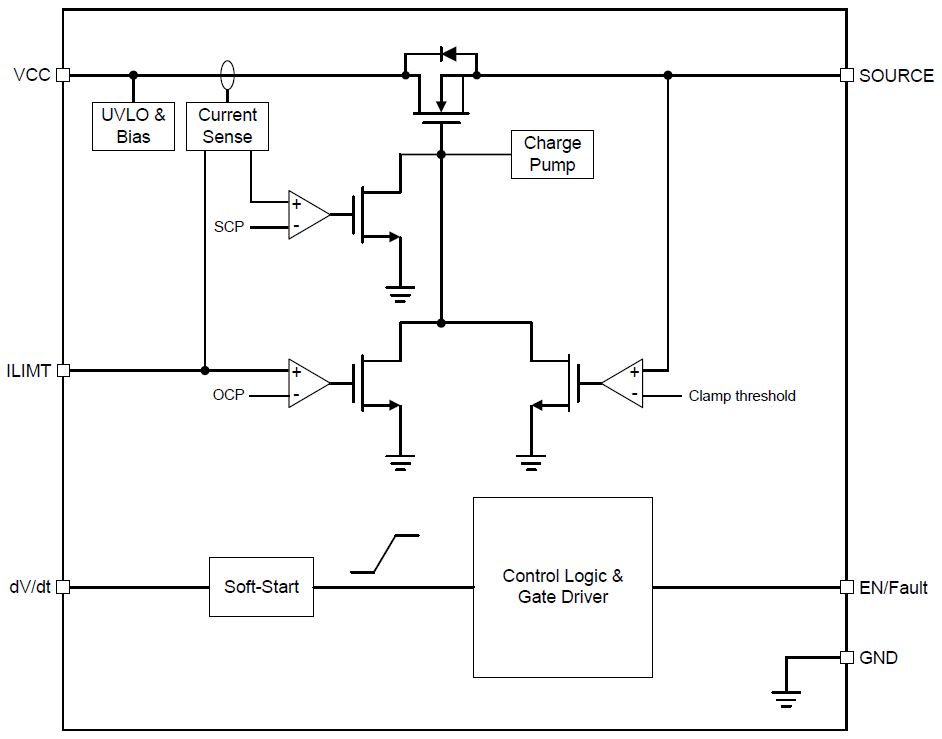

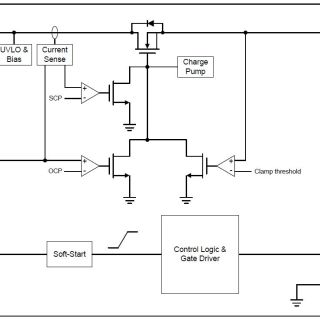

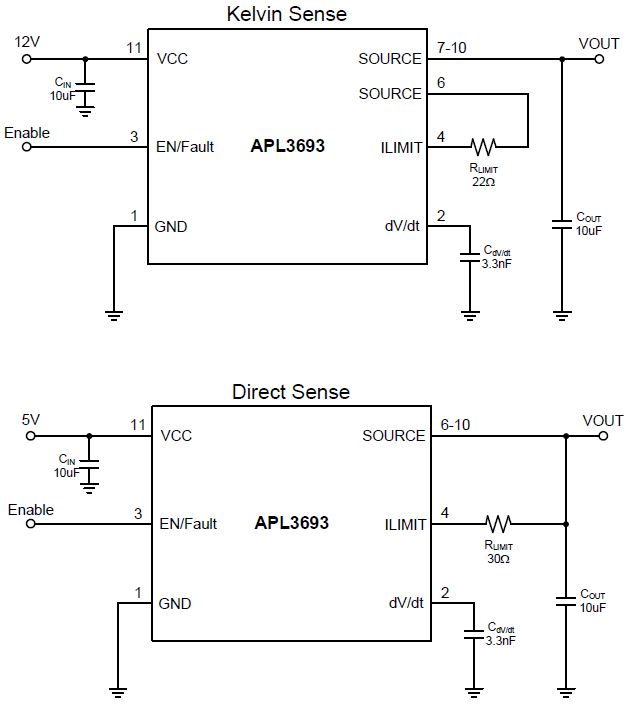

APL3693 is a high-performance power protecting and management solution electronic fuse in DFN 3x3 package type. Have wide operation voltage range from 9V to 18V and integrate enable function, internal MOSFET have very low on resistance 40mΩ. The output voltage slew rate can be set with a single capacitor (CdV/dt) and also can floating the dV/dt pin and the output slew rate by internal setting. And output current limit is fixed with a single resistor (RLIMIT). Output voltage have a clamping voltage 13.5V with quickly response time 0.5μs when VCC voltage rising to over voltage clamp threshold 13.7V. APL3693 operation temperature from -40oC to 125oC. And turn off the output when temperature exceeds 150oC.
Features
- Wide operating voltage range from 9V to 18V
- Low on-resistance RON=40mΩ
- Fast output over voltage response time 0.5us
- Adjustable output slew rate
- Fixed output over voltage clamp 13.5V
- Short circuit protection
- Over temperature protection 150oC
- Normal operation temperature -40oC ~ 125oC
General Description
APL3693 is a high-performance power protecting and management solution electronic fuse in DFN 3x3 package type. Have wide operation voltage range from 9V to 18V and integrate enable function, internal MOSFET have very low on resistance 40mΩ. The output voltage slew rate can be set with a single capacitor (CdV/dt) and also can floating the dV/dt pin and the output slew rate by internal setting. And output current limit is fixed with a single resistor (RLIMIT). Output voltage have a clamping voltage 13.5V with quickly response time 0.5μs when VCC voltage rising to over voltage clamp threshold 13.7V. APL3693 operation temperature from -40oC to 125oC. And turn off the output when temperature exceeds 150oC.
APA2192
Active
Shut Mode Audio Click-and-Pop Eliminator
Features
General Description

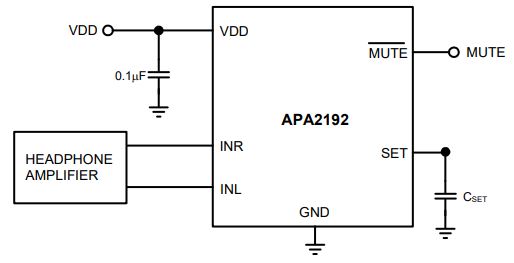

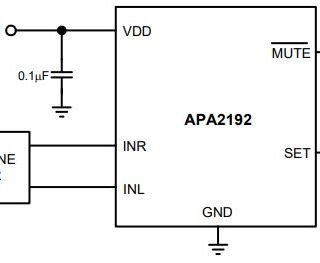

The APA2192 is an audio click-and-pop eliminator for portable multimedia devices. Operating from a 1.7V to 3.6V supply, the APA2192 connects to the output of the existing system amplifier and provides a low-impedance path to ground during startup and shutdown. The inputs INL and INR accept voltage swings from VDD to 5.5V below VDD. See the Setting the Supply Voltage section for more information. The power-up and power down transients are shunted to ground to prevent clicks and pops from becoming audible. The APA2192 features two low-impedance analog switches controlled by MUTE that opens and closes the switches. The switches are open during normal operation and have no impact on the output signal. During startup and shutdown of the amplifier, the APA2192 can be activated to short the outputs to ground and prevent clicks and pops from pulling current through the headphones.
Features
- Wide supply voltage range from 1.7V to 3.6V
- Low quiescent current 1µA
- Adjustable turn off time by SET pin
- Fast turn on time: 100us (typ)
- Low switch resistance: 0.3Ω
- Distortion-Free, Click-and-Pop Elimination
- Available in WLCSP1.42x0.92-6 and DFN2x2-6 Packages
- Lead Free Green Devices Available (RoHS Compliant)
General Description
The APA2192 is an audio click-and-pop eliminator for portable multimedia devices. Operating from a 1.7V to 3.6V supply, the APA2192 connects to the output of the existing system amplifier and provides a low-impedance path to ground during startup and shutdown. The inputs INL and INR accept voltage swings from VDD to 5.5V below VDD. See the Setting the Supply Voltage section for more information. The power-up and power down transients are shunted to ground to prevent clicks and pops from becoming audible. The APA2192 features two low-impedance analog switches controlled by MUTE that opens and closes the switches. The switches are open during normal operation and have no impact on the output signal. During startup and shutdown of the amplifier, the APA2192 can be activated to short the outputs to ground and prevent clicks and pops from pulling current through the headphones.
APL3157
Active
High-Density, +5.5V Capable DPDT Analog Switches
Features
- On-Resistance 0.2Ω (typ)
- +2.9V to +5.5V Single-Supply Range
- Click-and-Pop Suppression
- High-Impedance Mode When VCC Not Applied
General Description

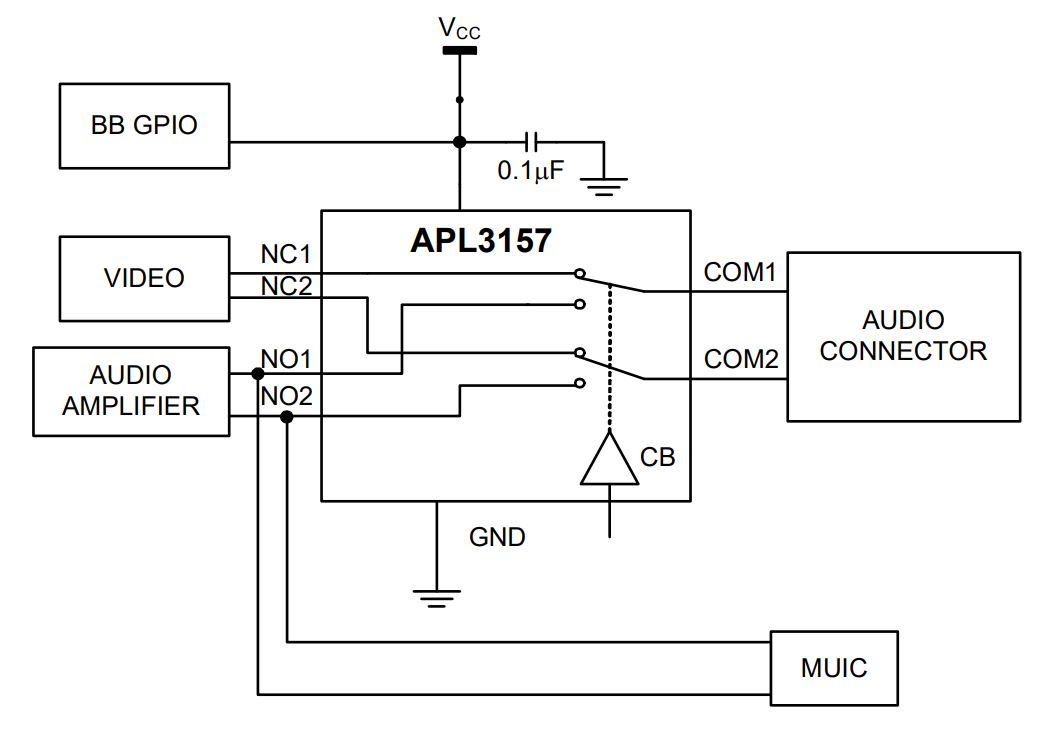

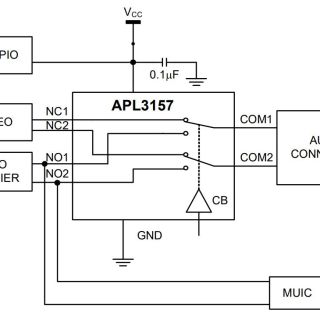

The APL3157 is a high-density, double-pole/ double-throw (DPDT) analog switch which allows signals from -0.3V to +5.5V to pass without distortion even when the power supply is below the signal range. The low RON resistance (0.2Ω) makes the devices ideal for low-distortion switching, such as audio. The APL3157 has internal shunt switches that discharge the audio amplifier AC-coupling capacitance at the normally open (NO1 and NO2) terminals. This feature reduces click-and-pop sounds that occur when switching audio signals between precharged points. The switches are fully specified to operate from a single +2.9V to +5.5V power supply. Because of the low supply current requirement, VCC can be provided by a GPIO. When the power is not applied, switches go to a high-impedance mode and all analog signal ports can withstand signals from -0.3V to +5.5V. The devices control the switches with a control bit, CB. The APL3157 is available in a 1.2mm x 1.2mm, 0.4mm pitch, 9-bump wafer-level package (WLCSP), and operate over the -4°C to +85°C extended temperature range.
Features
- Negative Audio and Video Signal Capable
- On-Resistance 0.2Ω (typ)
- +2.9V to +5.5V Single-Supply Range
- Click-and-Pop Suppression
- Smooth Switch Transition – Break-Before-Make Operation
- Low Supply Current 30µA (typ) at 2.9V
- High-Impedance Mode When VCC Not Applied
- ESD Protection on NC_ and NO_
- WLCSP1.2x1.2-9 (1.2mm x 1.2mm) Package
- 40°C to +85°C Operating Temperature Range
General Description
The APL3157 is a high-density, double-pole/ double-throw (DPDT) analog switch which allows signals from -0.3V to +5.5V to pass without distortion even when the power supply is below the signal range. The low RON resistance (0.2Ω) makes the devices ideal for low-distortion switching, such as audio. The APL3157 has internal shunt switches that discharge the audio amplifier AC-coupling capacitance at the normally open (NO1 and NO2) terminals. This feature reduces click-and-pop sounds that occur when switching audio signals between precharged points. The switches are fully specified to operate from a single +2.9V to +5.5V power supply. Because of the low supply current requirement, VCC can be provided by a GPIO. When the power is not applied, switches go to a high-impedance mode and all analog signal ports can withstand signals from -0.3V to +5.5V. The devices control the switches with a control bit, CB. The APL3157 is available in a 1.2mm x 1.2mm, 0.4mm pitch, 9-bump wafer-level package (WLCSP), and operate over the -4°C to +85°C extended temperature range.
APL3585
Active
Dual Mode Display Port Interface IC
Features
General Description

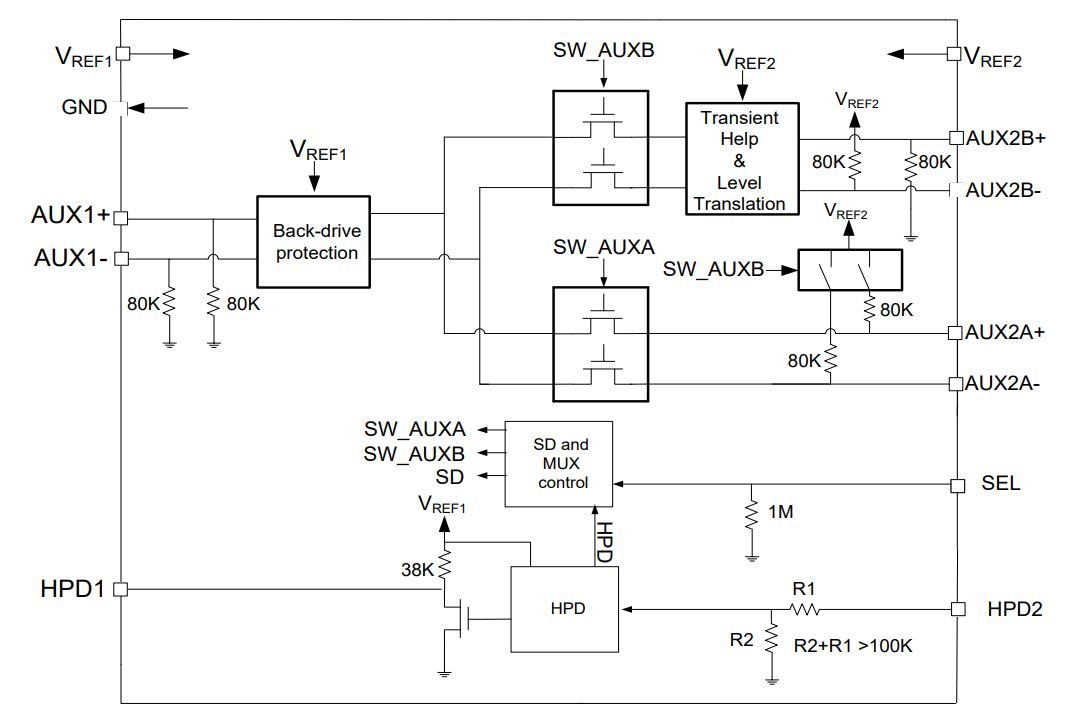

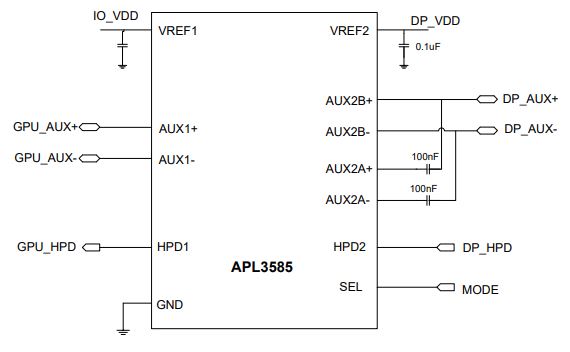

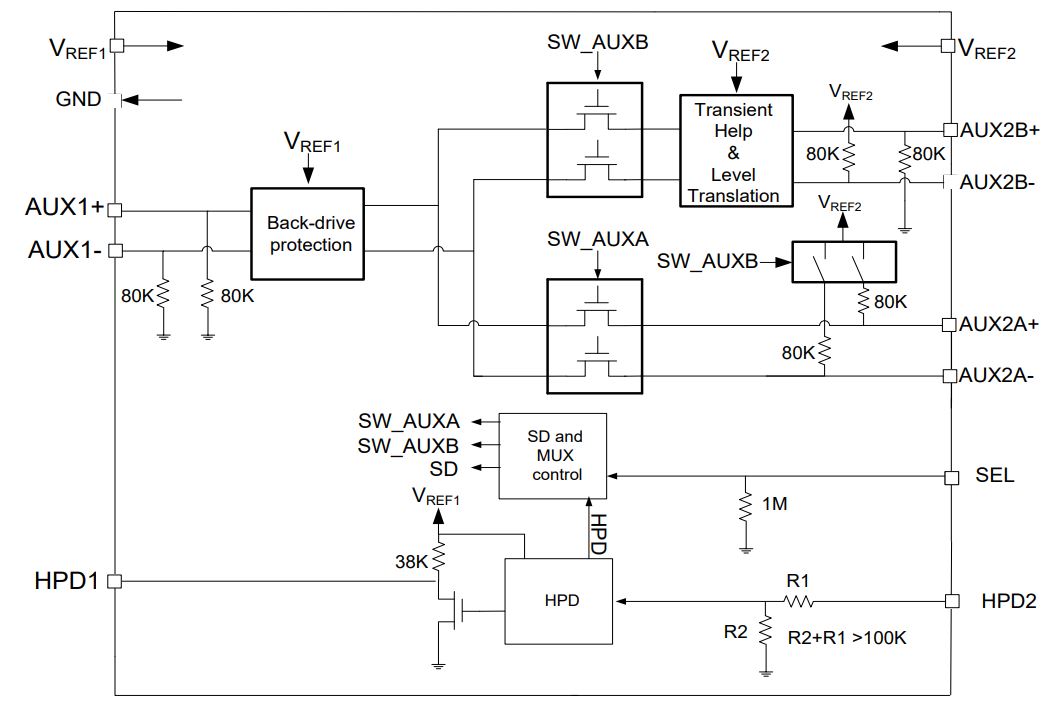

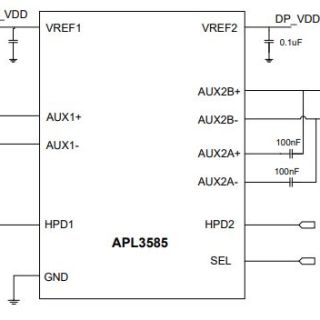

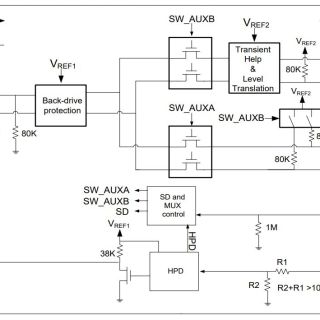

APL3585 is a data selector with a built-in level shifter, which can be used for graphics cards, and can choose between HDMI DDC MODE and DP_AUX MODE through the SEL pin. APL3585 has a transient help function in the HDMI DDC MODE, which can meet the I2C rising specifications to help data transmission without distortion. APL3585 integrates the signal selection application circuit of the Graphics Card, which can reduce the cost and space of the Graphics Card.
Features
- VREF1 support range from 1V to 5.5V
- VREF2 support range from 1.6V to 5.5V
- Support DP_AUX mode or HDMI_DDC mode select function by SEL pin
- Support bi-directional level translation of DDC signals
- Leakage current between VREF1 and VREF2 limited to 100nA
- Built in VREF1 and VREF2 Back-drive Protection
- Build in Transient help for AUX2B+/- to VREF2 pull up voltage
- Support 2Mbs in DP AUX mode, 100kHz in HDMI_DDC mode
- Support with Display Port 2.0
- Support with HDMI 2.1
- VTQFN 2x2-12 Package
General Description
APL3585 is a data selector with a built-in level shifter, which can be used for graphics cards, and can choose between HDMI DDC MODE and DP_AUX MODE through the SEL pin. APL3585 has a transient help function in the HDMI DDC MODE, which can meet the I2C rising specifications to help data transmission without distortion. APL3585 integrates the signal selection application circuit of the Graphics Card, which can reduce the cost and space of the Graphics Card.
APL3585A
Active
Dual Mode Display Port Interface IC
Features
General Description

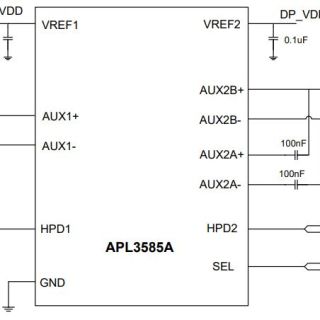

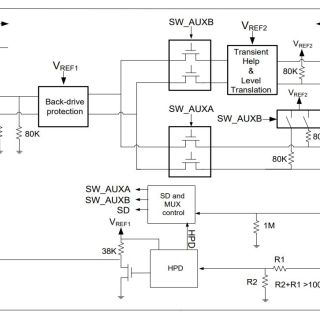

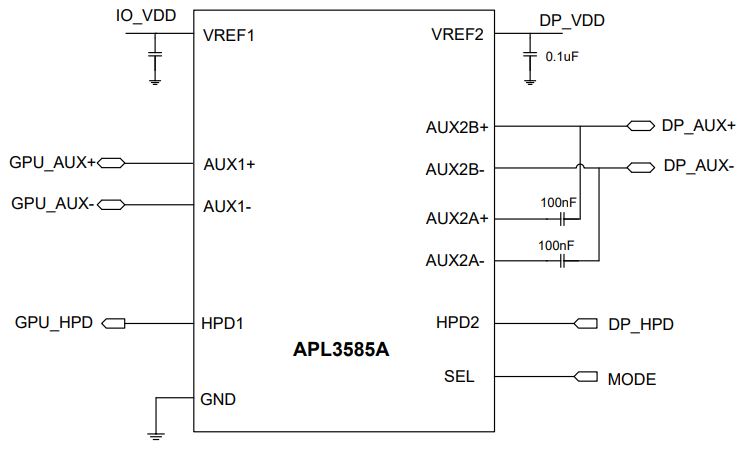

APL3585A is a data selector with a built-in level shifter, which can be used for graphics cards, and can choose between HDMI DDC MODE and DP_AUX MODE through the SEL pin. APL3585A has a transient help function in the HDMI DDC MODE, which can meet the I2C rising specifications to help data transmission without distortion. APL3585A integrates the signal selection application circuit of the Graphics Card, which can reduce the cost and space of the Graphics Card.
Features
- VREF1 support range from 1V to 5.5V
- VREF2 support range from 1.6V to 5.5V
- Support DP_AUX mode or HDMI_DDC mode select function by SEL pin
- Support bi-directional level translation of DDC signals
- Leakage current between VREF1 and VREF2 limited to 100nA
- Built in VREF1 and VREF2 Back-drive Protection
- Build in Transient help for AUX2B+/- to VREF2 pull up voltage
- Support 2Mbs in DP AUX mode, 100kHz in HDMI_DDC mode
- Support with Display Port 2.0
- Support with HDMI 2.1
- VTQFN 2x2-12 Package
General Description
APL3585A is a data selector with a built-in level shifter, which can be used for graphics cards, and can choose between HDMI DDC MODE and DP_AUX MODE through the SEL pin. APL3585A has a transient help function in the HDMI DDC MODE, which can meet the I2C rising specifications to help data transmission without distortion. APL3585A integrates the signal selection application circuit of the Graphics Card, which can reduce the cost and space of the Graphics Card.
APL3693A
Active
2.7V to 18V eFuse With Fast Overvoltage Response Time
Features
General Description

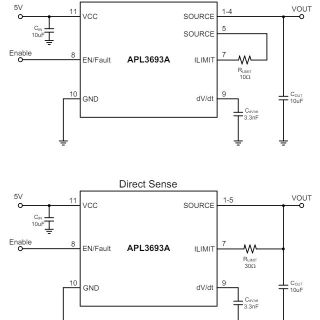

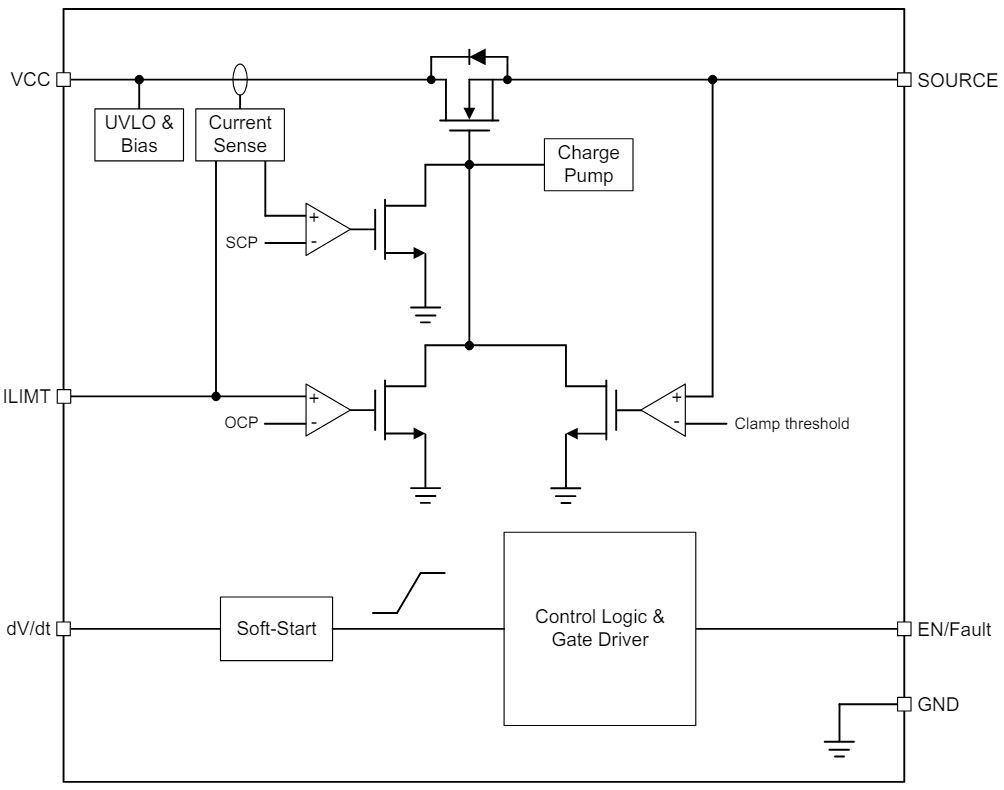

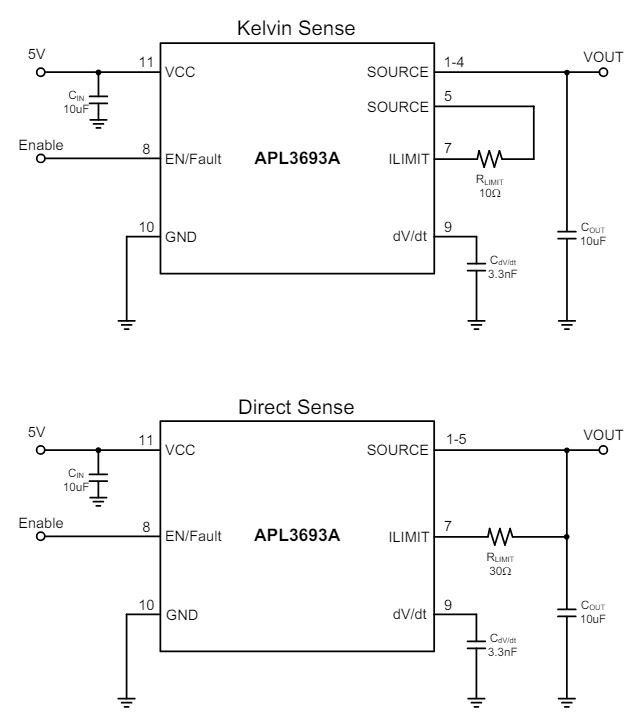

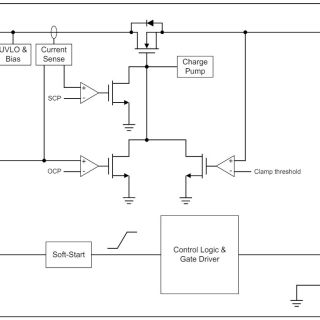

APL3693A is a high-performance power protecting and management solution electronic fuse in DFN 3x3 package type. Have wide operation voltage range from 2.7V to 18V and integrate enable function, internal MOSFET have very low on resistance 40mΩ. The output voltage slew rate can be set with a single capacitor (CdV/dt) and also can floating the dV/dt pin and the output slew rate by internal setting. And output current limit is fixed with a single resistor (RLIMIT). Output voltage have a clamping voltage 5.3V with quickly response time 0.5μs when VCC voltage rising to over voltage clamp threshold 5.7V. APL3693A operation temperature from -40oC to 125oC. And turn off the output when temperature exceeds 150oC.
Features
- Wide operating voltage range from 2.7V to 18V
- Low on-resistance RON=40mΩ
- Fast output over voltage response time 0.5us
- Adjustable output slew rate
- Fixed output OVP voltage 5.7V
- Short circuit protection
- Over temperature protection 150oC
- Normal operation temperature -40oC ~ 125oC
General Description
APL3693A is a high-performance power protecting and management solution electronic fuse in DFN 3x3 package type. Have wide operation voltage range from 2.7V to 18V and integrate enable function, internal MOSFET have very low on resistance 40mΩ. The output voltage slew rate can be set with a single capacitor (CdV/dt) and also can floating the dV/dt pin and the output slew rate by internal setting. And output current limit is fixed with a single resistor (RLIMIT). Output voltage have a clamping voltage 5.3V with quickly response time 0.5μs when VCC voltage rising to over voltage clamp threshold 5.7V. APL3693A operation temperature from -40oC to 125oC. And turn off the output when temperature exceeds 150oC.
