Active
High-Performance Notebook PWM Controller
Features
- ±1% Accuracy Over-Temperature
General Description
The APW8828K is a single-phase, constant-on-time, synchronous PWM controller, which drives N-channel MOSFETs. The APW8828K steps down high voltage to generate low-voltage for chipset or RAM supplies in notebook computers. The APW8828K provides excellent transient response and accurate DC voltage output in either PFM or PWM Mode. In Pulse Frequency Mode (PFM), the APW8828K provides very high efficiency over light to heavy loads with loading-modulated switching frequencies. In PWM Mode, the converter works nearly at constant frequency for lownoise requirements. The APW8828K is equipped with accurate positive current-limit, output under-voltage, and output overvoltage protections, perfect for NB applications. The Power-On-Reset function monitors the voltage on VCC to prevent wrong operation during power-on. The APW8828K has a 1ms digital soft-start and integrates ramp-down control for soft-stop. An internal integrated soft-start ramps up the output voltage with programmable slew rate to reduce the start-up current. A soft-stop function actively discharges the output capacitors with controlled reverse inductor current. The APW8828K is available in 16pin TQFN 3x3 package.
Features
- Adjustable Output Voltage from +0.7V to +5.5V
- ±1% Accuracy Over-Temperature
- Operates from an Input Battery Voltage Range of +1.8V to +28V
- Power-On-Reset Monitoring on VCC Pin
- Excellent Line and Load Transient Responses
- PFM Mode for Increased Light Load Efficiency
- Selectable PWM Frequency from 4 Preset Values
- Integrated MOSFET Drivers
- Integrated Bootstrap Forward P-CH MOSFET
- Adjustable Integrated Soft-Start and Soft-Stop
- Selectable Forced PWM or Automatic PFM/PWM Mode
- Power Good Monitoring
- 70% Under-Voltage Protection
- 125% Over-Voltage Protection
- Adjustable Current-Limit Protection
- Over-Temperature Protection
- TQFN-16 3x3 Package
General Description
The APW8828K is a single-phase, constant-on-time, synchronous PWM controller, which drives N-channel MOSFETs. The APW8828K steps down high voltage to generate low-voltage for chipset or RAM supplies in notebook computers. The APW8828K provides excellent transient response and accurate DC voltage output in either PFM or PWM Mode. In Pulse Frequency Mode (PFM), the APW8828K provides very high efficiency over light to heavy loads with loading-modulated switching frequencies. In PWM Mode, the converter works nearly at constant frequency for lownoise requirements. The APW8828K is equipped with accurate positive current-limit, output under-voltage, and output overvoltage protections, perfect for NB applications. The Power-On-Reset function monitors the voltage on VCC to prevent wrong operation during power-on. The APW8828K has a 1ms digital soft-start and integrates ramp-down control for soft-stop. An internal integrated soft-start ramps up the output voltage with programmable slew rate to reduce the start-up current. A soft-stop function actively discharges the output capacitors with controlled reverse inductor current. The APW8828K is available in 16pin TQFN 3x3 package.
NEWS
Active
60V/5A, Buck Converter with Hiccup Mode
Features
- Under Voltage Protection with Hiccup Mode
- Over Temperature Protection
General Description
The APW7710 is a wide input voltage range synchronous step-down DC-DC converter that can deliver up to 5A output current with a 5V to 60V input supply. The exceptional efficiency and output accuracy provided in a smaller solution size make APW7710 easier to use. The APW7710 uses a peak current mode control scheme to regulate the output voltage. Auto mode selection is provided to improve the efficiency when the device operates in light load. BIAS bypass pin allows for connecting VOUT to power the internal control circuitry under the output voltage range of 6V~24V application, thereby reducing overall system power consumption for better efficiency. Under-voltage protection with hiccup mode provides cycle-by-cycle current limit protection against shorted output and soft-start eliminates inrush current during start-up. Adjustable switching frequency, soft start, current limit, FPWM option provide flexible application. Additional features such as input under-voltage lock-out, output over-voltage protection, over-temperature protection offer completely safe and smooth operation in applied conditions.
Features
- Input Voltage Range: 5V to 60V
- 5A Output Current
- Power-On-Reset Monitoring on VCC
- 0.6V±1% Internal Reference Voltage
- 95% Efficiency at 500kHz (12Vin, 5Vout, 1.5A)
- Selectable FPWM or Automatic Operation
- Adjustable Frequency Range: 300kHz to 2.2MHz
- Adjustable Soft-Start
- Protections
- Under Voltage Protection with Hiccup Mode
- Over Temperature Protection
- Power Good Indicator
- Available in TQFN5x5-24 Package
General Description
The APW7710 is a wide input voltage range synchronous step-down DC-DC converter that can deliver up to 5A output current with a 5V to 60V input supply. The exceptional efficiency and output accuracy provided in a smaller solution size make APW7710 easier to use. The APW7710 uses a peak current mode control scheme to regulate the output voltage. Auto mode selection is provided to improve the efficiency when the device operates in light load. BIAS bypass pin allows for connecting VOUT to power the internal control circuitry under the output voltage range of 6V~24V application, thereby reducing overall system power consumption for better efficiency. Under-voltage protection with hiccup mode provides cycle-by-cycle current limit protection against shorted output and soft-start eliminates inrush current during start-up. Adjustable switching frequency, soft start, current limit, FPWM option provide flexible application. Additional features such as input under-voltage lock-out, output over-voltage protection, over-temperature protection offer completely safe and smooth operation in applied conditions.
NEWS
Active
60V/3.5A, Buck Converter with Hiccup Mode
Features
- Under Voltage Protection with Hiccup Mode
- Over Temperature Protection
General Description
The APW7711 is a wide input voltage range synchronous step-down DC-DC converter that can deliver up to 3.5A output current with a 5V to 60V input supply. The exceptional efficiency and output accuracy provided in a smaller solution size make APW7711 easier to use. The APW7711 uses a peak current mode control scheme to regulate the output voltage. Auto mode selection is provided to improve the efficiency when the device operates in light load. BIAS bypass pin allows for connecting VOUT to power the internal control circuitry under the output voltage range of 6V~24V application, thereby reducing overall system power consumption for better efficiency. Under-voltage protection with hiccup mode provides cycle-by-cycle current limit protection against shorted output and soft-start eliminates inrush current during start-up. Adjustable switching frequency, soft start, current limit, FPWM option provide flexible application. Additional features such as input under-voltage lock-out, output over-voltage protection, over-temperature protection offer completely safe and smooth operation in applied conditions.
Features
- Input Voltage Range: 5V to 60V
- 3.5A Output Current
- Power-On-Reset Monitoring on VCC
- 0.6V±1% Internal Reference Voltage
- 90% Efficiency at 500kHz (12Vin, 5Vout, 1A)
- Selectable FPWM or Automatic Operation
- Adjustable Frequency Range: 300kHz to 2.2MHz
- Adjustable Soft-Start
- Protections
- Under Voltage Protection with Hiccup Mode
- Over Temperature Protection
- Power Good Indicator
- Available in TQFN4x4-24G Package
General Description
The APW7711 is a wide input voltage range synchronous step-down DC-DC converter that can deliver up to 3.5A output current with a 5V to 60V input supply. The exceptional efficiency and output accuracy provided in a smaller solution size make APW7711 easier to use. The APW7711 uses a peak current mode control scheme to regulate the output voltage. Auto mode selection is provided to improve the efficiency when the device operates in light load. BIAS bypass pin allows for connecting VOUT to power the internal control circuitry under the output voltage range of 6V~24V application, thereby reducing overall system power consumption for better efficiency. Under-voltage protection with hiccup mode provides cycle-by-cycle current limit protection against shorted output and soft-start eliminates inrush current during start-up. Adjustable switching frequency, soft start, current limit, FPWM option provide flexible application. Additional features such as input under-voltage lock-out, output over-voltage protection, over-temperature protection offer completely safe and smooth operation in applied conditions.
NEWS
Active
For LPDDR5/5X Memory Power Solution
Features
■ VDD2H (HV Buck): 1.065V/8A
■ VDD2L (LDO): 0.92V/1.5A
■ VDDQ (LV Buck): 0.32V/3A or 0.52V/3A By VSEL PIN Select
General Description
The APW8873 is an integrated power management IC solution for LPDDR5 and LPDDR5X memory. This device provides four power including two single buck voltage regulators VDD2H (1.065V/8A), VDDQ (0.52V or 0.32V/3A), LDO VDD2L (0.92V/1.5A) and load switch VDD1 (1.8V/1A). The APW8873 supports dynamically adjust the VDDQ output voltage by VSEL pin, thus satisfying the requirements of LPDDR5/5X DVFSC and DVFSQ applications. The APW8873 provides excellent transient response and accurate DC voltage output in either PFM or PWM Mode. In Pulse Frequency Mode (PFM), the APW8873 provides very high efficiency over light to heavy loads with loading-modulated switching frequencies. It supports multiple operational modes, S0, S3, and S4/5 by the EN and EN_VDDQ control. The APW8873 provides full protection functions, including current limit, OVP, UVP, input UVLO, and OTP. All functions are integrated in a TQFN3x3-19 package.
Features
- Wide Operating Range from 4.5V to 24V Input Voltages for HV Buck Converter
- For Output Regulations:
■ VDD2H (HV Buck): 1.065V/8A
■ VDD2L (LDO): 0.92V/1.5A
■ VDDQ (LV Buck): 0.32V/3A or 0.52V/3A By VSEL PIN Select
- Power-On-Reset Monitoring On VCC at 4.3V
- Power-On-Reset Monitoring On All Rail Input Voltage
- Support DVFSC and DVFSQ for LPDDR5/5X
- Support Power Sequence Control for LPDDR5/5X
- Built In Auto-PFM / Shutdown Control Schemes by EN Pin
- Power Good Indicator by PG Pin
- Built In Over-Temperature Protection 150oC, Hysteresis 20oC
- TQFN3x3-19p
- Built In Internal Soft-Start and Output Discharge
- UVP Setting at 60% of VOUT
- Built In Current Limit
- Built In Individual Power On/Off Control by EN Pin
- Built In Internal Soft-Start and Output Discharge
- Built In Integrated Bootstrap Forward P-CH MOSFET
- Built In Integrated MOSFET H/S RDS(ON) 28mΩ & L/S RDS(ON) 14mΩ
- UVP Setting at 60% of VOUT & OVP Setting at 125%
- Built In Current Limit Protection Using Low-Side MOS
- Built In Internal Soft-Start and Output Discharge
- UVP Setting at 60% of VOUT & OVP Setting at 125%
- Built In Current Limit
- Built In Individual Power On/Off Control by EN_ VDDQ Pin
- Built In Internal Soft-Start and Output Discharge
- Built In Integrated MOSFET H/S RDS(ON) 100mΩ & L/ S RDS(ON) 50mΩ
- UVP Setting at 60% of VOUT & OVP Setting at 125%
- Built In Current Limit Protection Using Low-Side MOS
General Description
The APW8873 is an integrated power management IC solution for LPDDR5 and LPDDR5X memory. This device provides four power including two single buck voltage regulators VDD2H (1.065V/8A), VDDQ (0.52V or 0.32V/3A), LDO VDD2L (0.92V/1.5A) and load switch VDD1 (1.8V/1A). The APW8873 supports dynamically adjust the VDDQ output voltage by VSEL pin, thus satisfying the requirements of LPDDR5/5X DVFSC and DVFSQ applications. The APW8873 provides excellent transient response and accurate DC voltage output in either PFM or PWM Mode. In Pulse Frequency Mode (PFM), the APW8873 provides very high efficiency over light to heavy loads with loading-modulated switching frequencies. It supports multiple operational modes, S0, S3, and S4/5 by the EN and EN_VDDQ control. The APW8873 provides full protection functions, including current limit, OVP, UVP, input UVLO, and OTP. All functions are integrated in a TQFN3x3-19 package.
HOT
Active
96 Channel LED Controller for LCD Backlight
Features
- LED Open Detection
- Temperature Shutdown Detection
- UVLO
General Description

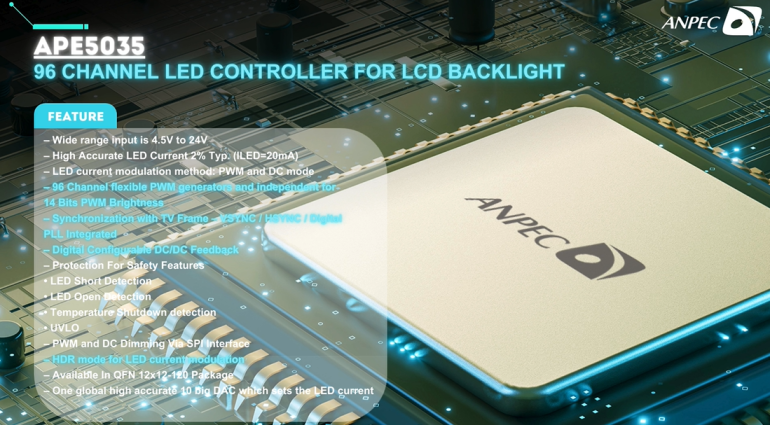

The APE5035 are integrates Mosfet and 96 channel LED controller for LCD backlight. It’s high accurate LED current 2% (20mA LED current) and wide input voltage range. The APE5035 has 96 Channel flexible PWM generators and independent 14 bits PWM brightness were control LED current for every channel. In addition; It's has one global high accurate 10 bit DAC which sets the LED current. It’s synchronization with TV Frame including VSYNC/HSYNC and Digital PLL method. The APE5035 own LED current modulation method including PWM mode and DC mode. When applications have flicker frequency issue and then can using the DC mode method eliminate flicker frequency problem. The APE5035 has two pins can be digital configurable DC/DC feedback, that’s for control DC/DC architecture. As the same time; the device using programmable via SPI interface. The APE5035 owns HDR mode for modulation LED current. It’s build-in protection for safety; include LED short, LED Open, temperature shutdown protection and UVLO. The APE5035 is available in QFN12x12-120 packages.
Features
- Wide Range Input is 4.5V to 24V
- High Accurate LED Current 2% Typ. (ILED=20mA)
- LED Current Modulation Method: PWM and DC Mode
- 96 Channel Flexible PWM Generators and Independent for 14 Bits PWM Brightness
- Synchronization with TV Frame – VSYNC / HSYNC / Digital PLL Integrated
- Digital Configurable DC/DC Feedback
- Protection For Safety Features
- LED Open Detection
- Temperature Shutdown Detection
- UVLO
- PWM and DC Dimming Via SPI Interface
- HDR Mode for LED Current Modulation
- Available In QFN12x12-120 Package
- One Global High Accurate 10 big DAC which Sets the LED Current
General Description
The APE5035 are integrates Mosfet and 96 channel LED controller for LCD backlight. It’s high accurate LED current 2% (20mA LED current) and wide input voltage range. The APE5035 has 96 Channel flexible PWM generators and independent 14 bits PWM brightness were control LED current for every channel. In addition; It's has one global high accurate 10 bit DAC which sets the LED current. It’s synchronization with TV Frame including VSYNC/HSYNC and Digital PLL method. The APE5035 own LED current modulation method including PWM mode and DC mode. When applications have flicker frequency issue and then can using the DC mode method eliminate flicker frequency problem. The APE5035 has two pins can be digital configurable DC/DC feedback, that’s for control DC/DC architecture. As the same time; the device using programmable via SPI interface. The APE5035 owns HDR mode for modulation LED current. It’s build-in protection for safety; include LED short, LED Open, temperature shutdown protection and UVLO. The APE5035 is available in QFN12x12-120 packages.
HOT
Active
3-CH Buck Converter, 3-18V Input Voltage, Tiny Package
Features
- Channel 2 from 3V to 18V
- N-CH MOSFET (90mΩ) for CH2/3 High Side
- N-CH MOSFET (45mΩ) for CH1 Low Side
- N-CH MOSFET (50mΩ) for CH2/3 Low Side
General Description
The APW9304H is a three-channel synchronous mode PWM converter with 3A continuous current capability for one channel and 2.5A continuous current capability for the other channel and 1.5A continuous current capability for the other one channel. Although the switching frequency of the APW9304H is fixed at 2.1MHz, it can also change the switching frequency via the EN/SYNC pin. The APW9304H also provides a 120-degree phase shifting technique and Spread Spectrum option to minimize the noise for reducing EMI. The output voltage of each channel can be adjusted using an external resistor divider. Other features include VIN OVP, VOUT OVP, UVP, Current Limit and OTP. The internal switching frequency is set at 2.1MHz. Other features of the part include VIN OVP, OVP, UVP, Current Limit and OTP. The APW9304H is available in a TQFN 4x4-20D wettable flanks package with small size and excellent thermal capacity.
Features
- Wide Input Voltage Range:
- Channel 2 from 3V to 18V
- 3A/2.5A/1.5A Output Current on Channel 1/2/3
- Typical 0.6V ±1% Internal Reference Voltage
- Sync Pin Allows Synchronization to an External Clock from 1.8MHz to 2.4MHz
- Optimized Upper and Lower MOSFETs RDS_on for max Efficiency:
- N-CH MOSFET (90mΩ) for CH2/3 High Side
- N-CH MOSFET (45mΩ) for CH1 Low Side
- N-CH MOSFET (50mΩ) for CH2/3 Low Side
- Built in OVP, UVP, Current Limit, VIN OVP and OTP
- Low Cost TQFN 4x4-20D Wettable Flanks Package
- High Performance or Low Cost Configuration, Auto Mode or FPWM can be set by Mode Pin
- Spread Spectrum Option and Power On Sequence can be configured by SEQ/SSP PIN
General Description
The APW9304H is a three-channel synchronous mode PWM converter with 3A continuous current capability for one channel and 2.5A continuous current capability for the other channel and 1.5A continuous current capability for the other one channel. Although the switching frequency of the APW9304H is fixed at 2.1MHz, it can also change the switching frequency via the EN/SYNC pin. The APW9304H also provides a 120-degree phase shifting technique and Spread Spectrum option to minimize the noise for reducing EMI. The output voltage of each channel can be adjusted using an external resistor divider. Other features include VIN OVP, VOUT OVP, UVP, Current Limit and OTP. The internal switching frequency is set at 2.1MHz. Other features of the part include VIN OVP, OVP, UVP, Current Limit and OTP. The APW9304H is available in a TQFN 4x4-20D wettable flanks package with small size and excellent thermal capacity.
NEWS
Active
3MHz, 1A Synchronous Step-Down IR-LED Driver
Features
General Description
The APW7584 is a synchronous step-down IR-LED driver adopting constant on time control mode. Due to increasing the oscillation to high frequency, the mounting area including peripheral components can be reduced. APW7584 also has low switching quiescent current to improve efficiency and battery-powered equipment using time. The APW7584 is equipped with Power-on-reset, internal soft start and over-current protection, over temperature into a single low cost TDFN package.
Features
- Input Voltage Range: 4.2V to 5.5V
- Low Switching Quiescent Current
- 1A Output Current
- 0.1V Reference Voltage
- Constant on Time Mode Operation
- 3MHz Switching Frequency
- Power-On-Reset Detection on VIN
- Integrated Soft Start Time
- Over-Temperature Protection
- Over-Current Protection
- TDFN1.6x1.6 Package
General Description
The APW7584 is a synchronous step-down IR-LED driver adopting constant on time control mode. Due to increasing the oscillation to high frequency, the mounting area including peripheral components can be reduced. APW7584 also has low switching quiescent current to improve efficiency and battery-powered equipment using time. The APW7584 is equipped with Power-on-reset, internal soft start and over-current protection, over temperature into a single low cost TDFN package.
HOT
Active
The PMIC Features 7 Buck Converters, 6 LDOs, 2 LSs, and Flexible System Settings via I2C and MTP
Features
Charger
- BUCK2: 1V ~ 3.4V, 10mV Step, 2A
- BUCK3: 0.45V ~ 1.275V, 3.75mV Step, 6A
- BUCK4: 0.6V ~ 1.54V, 5mV Step, 3A
- BUCK5: 0.45V ~ 1.275V, 3.75mV Step, 3A
- BUCK6: 1V ~ 3.4V, 10mV Step, 2A
- BUCK7: 1V ~ 3.4V, 10mV Step, 2A
- LDO2: 1V ~ 3.4V, 50mV Step, 300mA
- LDO3: 1V ~ 3.4V, 50mV Step, 300mA
- LDO4: 0.6V ~ 1.23V, 10mV Step, 200mA
- LDO5: 1V ~ 3.4V, 50mV Step, 150mA
- LDO6: 0.6V ~ 1.23V, 10mV Step, 300mA
General Description
The APW7720 is a Power Management IC (PMIC) designed to provide complete power management solution for Surveillance Cam, IP Cam and Video Conference-Call applications. It integrates a PWM power stage and well-designed control circuitry to minimize the need for external components, thereby simplifying layout in constrained PCB areas. This device features 7 adjustable output voltage buck converters, 6 adjustable output voltage low-noise LDOs, and 2 sets of built-in logic control signal outputs selectable at 1.8V or 3.3V, all of which can be configured via I2C. The APW7720 features protection functions against over current, output over/under voltage, VSYS over voltage and over temperature to prevent catastrophic failure. Fault events also cause a state change on the PGOOD and /INT output pins, which is helpful for interrupt control or debugging. Additionally, it integrates two Under-Voltage Lockout (UVLO) features to monitor the voltages of VSYS and VINLDO1, thereby preventing improper operation during power-up and power-down. An I2C interface is provided in this device for the system designer to customize settings or presets using Multi-Time Programmable (MTP) features, including power-up/down sequence, output voltage, ramp-up/down time, power-good delay time, watchdog timer, PWM switching frequency, forced PWM mode or automatic PFM/PWM mode, output discharge mode or ramp-down mode, and latch off mode or auto-reboot mode. These customizable MTP settings give system designers the flexibility to optimize performance for various use cases, ensuring efficient and reliable operation. The APW7720 is halogen and lead free device, compliant with RoHS, available in TQFN6x6-52B package.
Features
Charger
- 3.5V to 5.5V Operating Input Range
- Built-in UVLO, OVP for Main Input Voltage
- Built-in 7 High-Efficiency Step-Down Converters
- BUCK2: 1V ~ 3.4V, 10mV Step, 2A
- BUCK3: 0.45V ~ 1.275V, 3.75mV Step, 6A
- BUCK4: 0.6V ~ 1.54V, 5mV Step, 3A
- BUCK5: 0.45V ~ 1.275V, 3.75mV Step, 3A
- BUCK6: 1V ~ 3.4V, 10mV Step, 2A
- BUCK7: 1V ~ 3.4V, 10mV Step, 2A
- Configurable Dual Phase or Single Phase Regulator for BUCK1/BUCK3
- Configurable PWM Switching Frequency from 400kHz to 2.5MHz
- Programmable Automatic PFM/PWM Mode, Forced PWM Mode
- Adjustable Ramp-Up Time and Ramp-Down Time for BUCK1 ~ BUCK7
- Built-in RTC Dedicated LDO and 5 Low-Noise LDOs
- LDO2: 1V ~ 3.4V, 50mV Step, 300mA
- LDO3: 1V ~ 3.4V, 50mV Step, 300mA
- LDO4: 0.6V ~ 1.23V, 10mV Step, 200mA
- LDO5: 1V ~ 3.4V, 50mV Step, 150mA
- LDO6: 0.6V ~ 1.23V, 10mV Step, 300mA
- Configurable LDO2/3 Output 1.8V/3.3V by LDO2/3_SEL Pin
- Built-in Dual Sets of Logic Control Signal Outputs, Selectable at 1.8V or 3.3V
- Built-in Double Thermal Protection with Temperature Alarm and Thermal Shutdown
- Built-in Output Over Voltage Protection (OVP), Output Under Voltage Protection (UVP), Current Limit
- Built-in Interrupt Control and Reporting by /INT Pin
- Built-in PGOOD to Indicate the Power Status of All VRs
- I2C Bus and User Programmable MTP
- Programmable Power Sequence Control for All Channels Via I2C
- Built-in Watchdog Timer, Programmable via I2C
- Supports Self-Refresh Mode Via Off Mode Function
- Available in TQFN6x6-52B Package
General Description
The APW7720 is a Power Management IC (PMIC) designed to provide complete power management solution for Surveillance Cam, IP Cam and Video Conference-Call applications. It integrates a PWM power stage and well-designed control circuitry to minimize the need for external components, thereby simplifying layout in constrained PCB areas. This device features 7 adjustable output voltage buck converters, 6 adjustable output voltage low-noise LDOs, and 2 sets of built-in logic control signal outputs selectable at 1.8V or 3.3V, all of which can be configured via I2C. The APW7720 features protection functions against over current, output over/under voltage, VSYS over voltage and over temperature to prevent catastrophic failure. Fault events also cause a state change on the PGOOD and /INT output pins, which is helpful for interrupt control or debugging. Additionally, it integrates two Under-Voltage Lockout (UVLO) features to monitor the voltages of VSYS and VINLDO1, thereby preventing improper operation during power-up and power-down. An I2C interface is provided in this device for the system designer to customize settings or presets using Multi-Time Programmable (MTP) features, including power-up/down sequence, output voltage, ramp-up/down time, power-good delay time, watchdog timer, PWM switching frequency, forced PWM mode or automatic PFM/PWM mode, output discharge mode or ramp-down mode, and latch off mode or auto-reboot mode. These customizable MTP settings give system designers the flexibility to optimize performance for various use cases, ensuring efficient and reliable operation. The APW7720 is halogen and lead free device, compliant with RoHS, available in TQFN6x6-52B package.
Active
Dual Channel Synchronous Buck PWM Controller
Features
- Discontinuous Conduction Mode in Light Load to Increase Efficiency (VEN=2V)
- Sence External RSENSE (option 2)
General Description
The APW7391 is a dual channel voltage mode, synchronous PWM controller which drives dual N-channel MOSFETs. The device integrates monitoring and protection functions into a single package, provides two controlled power output with under-voltage and overcurrent protections. The APW7391 provides excellent regulation for output load variation. The internal 1.0V temperature compensated reference voltage provides high accuracy of 0.8% over line and load regulation. The PWM switching frequency is adjustable from 50kHz to 350kHz. The APW7391 has been equipped with excellent protection functions: POR, IMON, OCP, SCP, UVP, OVP OTP. The Power-On-Reset (POR) circuit can monitor the VCC input voltage to make sure the supply voltage is valid. The APW7391 adopts either the external power inductor’s DCR or an external accurate sense resistor to sense the output current. The output current information is reported at IMON pin whose output voltage is proportional to output current. During the PWM switching, the APW7391 has OCP and SCP protections. When the load current exceeds the OCP or SCP threshold, the APW7391 shuts off its PWM switcher to prevent catastrophic failure caused by abnormal load or short-circuit. The APW7391 senses its FB pin for output UVP and OVP protection, which is 50% and 120% of reference voltage respectively. When the UVP or OVP occurs, the APW7391 latches off the PWM switcher. APW7391 has over temperature protection. When the die temperature is above 150°C, the APW7391 ceases PWM operation and recover normal operation when the die temperature drops by 40°C. The APW7391 is available in SSOP-24 and SSOP-24P packages, which is compliant with RoHS.
Features
- Single 12V Power Supply Required
- Excellent Output Voltage Regulation
- Simple Single Loop Control Design
- Programmable Frequency Range from 50kHz ~ 350kHz
- CCM/DCM Operation Selectable by EN Pin
- Discontinuous Conduction Mode in Light Load to Increase Efficiency (VEN=2V)
- Output Current Monitor (IMON Pin)
- Integrated Soft-Start and Soft-Off
- Support Pre-Biased Power-On
- Output Power Line Compensation
- Phase Shift 180°
- Integrated Boot-Strap Diode
- Over-Current and Short-Circuit Protection
- Sence External RSENSE (option 2)
- 120% Over-Voltage Protection
- 50% Under-Voltage Protection
- Over-Temperature Protection
- Available in SSOP-24 and SSOP-24P Packages
General Description
The APW7391 is a dual channel voltage mode, synchronous PWM controller which drives dual N-channel MOSFETs. The device integrates monitoring and protection functions into a single package, provides two controlled power output with under-voltage and overcurrent protections. The APW7391 provides excellent regulation for output load variation. The internal 1.0V temperature compensated reference voltage provides high accuracy of 0.8% over line and load regulation. The PWM switching frequency is adjustable from 50kHz to 350kHz. The APW7391 has been equipped with excellent protection functions: POR, IMON, OCP, SCP, UVP, OVP OTP. The Power-On-Reset (POR) circuit can monitor the VCC input voltage to make sure the supply voltage is valid. The APW7391 adopts either the external power inductor’s DCR or an external accurate sense resistor to sense the output current. The output current information is reported at IMON pin whose output voltage is proportional to output current. During the PWM switching, the APW7391 has OCP and SCP protections. When the load current exceeds the OCP or SCP threshold, the APW7391 shuts off its PWM switcher to prevent catastrophic failure caused by abnormal load or short-circuit. The APW7391 senses its FB pin for output UVP and OVP protection, which is 50% and 120% of reference voltage respectively. When the UVP or OVP occurs, the APW7391 latches off the PWM switcher. APW7391 has over temperature protection. When the die temperature is above 150°C, the APW7391 ceases PWM operation and recover normal operation when the die temperature drops by 40°C. The APW7391 is available in SSOP-24 and SSOP-24P packages, which is compliant with RoHS.
Active
6A, 18V, 600kHz Synchronous Step-Down Converter
Features
- N-CH MOSFET: 20mΩ for Low Side
General Description
The APW9105 is a high efficiency synchronous buck converter with integrated 40m/20mΩ of upper/lower power MOSFET and offers 6A continuous current capability. This part is part of the family of converters with a proprietary ANPEC System Phase Shift (ASP) method that allows multiple converters to be daisy chained together while being able to synchronize to an external clock, allowing for a much reduced system noise performance. The ASP pin of the APW9105 can output a synchronized clock to the external clock with a slight phase delay to the next converter such that next converter will not turn on at the same time. Another feature of this part is its ability to automatically optimize its BW (DyncBandwidth) to allow better dynamic response once it is synchronized to a higher external clock. The APW9105 uses a peak current mode control scheme to regulate the output voltage. The internal switching frequency is set at 600kHz while the EN/SYNC pin supports external clock synchronization. The APW9105 also equips a technique: SpeedTransTM, which allows improving transient response without complex external compensation circuits design. VDD bypass pin allows for an external 5V supply to power the internal control circuitry thereby reducing overall system power consumption for better efficiency especially at light load conditions. And PM selection, It can improve the efficiency when the load is light. The APW9105 is also equipped with Power-on-reset, soft-start, and complete protections, over-temperature, overvoltage, under-voltage and over-current of the converter The APW9105 is offered in a TQFN3x2-14 package allowing small size while having an excellent thermal capability for power dissipation.
Features
- Input Voltage Range: 4.5V to 18V
- 6A Output Current
- ANPEC System Phase Shift (ASP) Function Reduces System Noise by Daisy Chaining Converter with Phase Shift
- Typical 0.6V ±1% Internal Reference Voltage
- Optimized Upper and Lower MOSFETs RDS_on for Max Efficiency:
- N-CH MOSFET: 20mΩ for Low Side
- VDD Bypass Function Allows for External 5V Supply
- Mode Pin Allows for Forced PWM or Automatic PSM/PWM Mode
- Built in OVP, UVP, Current Limit and OTP
- Low Cost TQFN3x2-14 Package
- Lead Free and Green Devices Available (RoHS Compliant)
- DyncBandwidthTM Technology
- SpeedTransTM Technology
General Description
The APW9105 is a high efficiency synchronous buck converter with integrated 40m/20mΩ of upper/lower power MOSFET and offers 6A continuous current capability. This part is part of the family of converters with a proprietary ANPEC System Phase Shift (ASP) method that allows multiple converters to be daisy chained together while being able to synchronize to an external clock, allowing for a much reduced system noise performance. The ASP pin of the APW9105 can output a synchronized clock to the external clock with a slight phase delay to the next converter such that next converter will not turn on at the same time. Another feature of this part is its ability to automatically optimize its BW (DyncBandwidth) to allow better dynamic response once it is synchronized to a higher external clock. The APW9105 uses a peak current mode control scheme to regulate the output voltage. The internal switching frequency is set at 600kHz while the EN/SYNC pin supports external clock synchronization. The APW9105 also equips a technique: SpeedTransTM, which allows improving transient response without complex external compensation circuits design. VDD bypass pin allows for an external 5V supply to power the internal control circuitry thereby reducing overall system power consumption for better efficiency especially at light load conditions. And PM selection, It can improve the efficiency when the load is light. The APW9105 is also equipped with Power-on-reset, soft-start, and complete protections, over-temperature, overvoltage, under-voltage and over-current of the converter The APW9105 is offered in a TQFN3x2-14 package allowing small size while having an excellent thermal capability for power dissipation.
Active
10A, 18V, 600kHz Synchronous Step-Down Converter
Features
- N-CH MOSFET: 11mΩ for Low Side
General Description
The APW9106 is a high efficiency synchronous buck converter with integrated 20m/11mΩ of upper/lower power MOSFET and offers 10A continuous current capability. This part is part of the family of converters with a proprietary ANPEC System Phase Shift (ASP) method that allows multiple converters to be daisy chained together while being able to synchronize to an external clock, allowing for a much reduced system noise performance. The ASP pin of the APW9106 can output a synchronized clock to the external clock with a slight phase delay to the next converter such that next converter will not turn on at the same time. The APW9106 uses a peak current mode control scheme to regulate the output voltage. The internal switching frequency is set at 600kHz while the EN/SYNC pin supports external clock synchronization. The APW9106 also equips a technique: SpeedTransTM, which allows improving transient response without complex external compensation circuits design. VDD bypass pin allows for an external 5V supply to power the internal control circuitry thereby reducing overall system power consumption for better efficiency especially at light load conditions. And PM selection, It can improve the efficiency when the load is light. The APW9106 is also equipped with Power-on-reset, soft-start, and complete protections, over-temperature, overvoltage, under-voltage and over-current of the converter The APW9106 is offered in a TQFN3x3-14 package allowing small size while having an excellent thermal capability for power dissipation.
Features
- Input Voltage range: 4.5V to 18V
- 10A Output Current
- ANPEC System Phase Shift (ASP) function Reduces System Noise by Daisy Chaining Converter with Phase Shift
- Typical 0.6V ±1% Internal Reference Voltage
- Optimized Upper and Lower MOSFETs RDS_on for max Efficiency:
- N-CH MOSFET: 11mΩ for Low Side
- VDD Bypass Function allows for External 5V supply
- Mode Pin allows for Forced PWM or Automatic PSM/PWM mode
- Built in OVP, UVP, Current Limit and OTP
- Low Cost TQFN3x3-14 package
- Lead Free and Green Devices Available (RoHS Compliant)
- SpeedTransTM Technology
General Description
The APW9106 is a high efficiency synchronous buck converter with integrated 20m/11mΩ of upper/lower power MOSFET and offers 10A continuous current capability. This part is part of the family of converters with a proprietary ANPEC System Phase Shift (ASP) method that allows multiple converters to be daisy chained together while being able to synchronize to an external clock, allowing for a much reduced system noise performance. The ASP pin of the APW9106 can output a synchronized clock to the external clock with a slight phase delay to the next converter such that next converter will not turn on at the same time. The APW9106 uses a peak current mode control scheme to regulate the output voltage. The internal switching frequency is set at 600kHz while the EN/SYNC pin supports external clock synchronization. The APW9106 also equips a technique: SpeedTransTM, which allows improving transient response without complex external compensation circuits design. VDD bypass pin allows for an external 5V supply to power the internal control circuitry thereby reducing overall system power consumption for better efficiency especially at light load conditions. And PM selection, It can improve the efficiency when the load is light. The APW9106 is also equipped with Power-on-reset, soft-start, and complete protections, over-temperature, overvoltage, under-voltage and over-current of the converter The APW9106 is offered in a TQFN3x3-14 package allowing small size while having an excellent thermal capability for power dissipation.
Active
3A, 18V, 600kHz Synchronous Step-Down Converter
Features
- N-CH MOSFET (50mΩ) for CH1 Low Side
- N-CH MOSFET (105mΩ) for CH2 High Side
- N-CH MOSFET (60mΩ) for CH2 Low Side
General Description
The APW9202/S/L is a two-channel synchronous mode PWM converter with 3A continuous current capability for one channel and 2A continuous current capability for the other one. Each channel of the APW9202/S has independent enable, and it also allows the two regulators to start together by using the same enable signal. Although the switching frequency of the APW9202/S/L is fixed at 800kHz, it can also change the switching frequency via the PWM/SYNC pin. Another feature of this part is its ability to automatically optimize its BW (DyncBandwidth) to allow better dynamic response once it is synchronized to a higher external clock. The APW9202/S/L also provides a 180-degree phase shifting technique to minimize switching noise. The output voltage of each channel can be adjusted using an external resistor divider. Other features include UVP, current limit, and OTP. The APW9202/S/L is available in a VTQFN2x2-13 package with small size and excellent thermal capacity.
Features
- Input Voltage range: 4.5V to 18V
- 3A/2A Output Current on Channel1/2
- Low IQ=155μA (typ.) to improve Light Load Efficiency
- Typical 0.6V ±1% Internal Reference Voltage
- Optimized Upper and Lower MOSFETs RDS_on for max Efficiency:
- N-CH MOSFET (50mΩ) for CH1 Low Side
- N-CH MOSFET (105mΩ) for CH2 High Side
- N-CH MOSFET (60mΩ) for CH2 Low Side
- Channel Swap Function (APW9202S)
- Level Shifter Output is Referenced to External DC Voltage (APW9202L)
- Built in OVP, UVP, Current Limit and OTP
- Low Cost VTQFN2x2-13 package
- Lead Free and Green Devices Available (RoHS Compliant)
- DyncBandwidthTM Technology
General Description
The APW9202/S/L is a two-channel synchronous mode PWM converter with 3A continuous current capability for one channel and 2A continuous current capability for the other one. Each channel of the APW9202/S has independent enable, and it also allows the two regulators to start together by using the same enable signal. Although the switching frequency of the APW9202/S/L is fixed at 800kHz, it can also change the switching frequency via the PWM/SYNC pin. Another feature of this part is its ability to automatically optimize its BW (DyncBandwidth) to allow better dynamic response once it is synchronized to a higher external clock. The APW9202/S/L also provides a 180-degree phase shifting technique to minimize switching noise. The output voltage of each channel can be adjusted using an external resistor divider. Other features include UVP, current limit, and OTP. The APW9202/S/L is available in a VTQFN2x2-13 package with small size and excellent thermal capacity.
Active
High Efficiency 18V, 2-CH Buck Converter
Features
- N-CH MOSFET (50mΩ) for CH1 Low Side
- N-CH MOSFET (105mΩ) for CH2 High Side
- N-CH MOSFET (60mΩ) for CH2 Low Side
General Description
The APW9202M is a two-channel synchronous mode PWM converter with 3A continuous current capability for one channel and 2A continuous current capability for the other one. Each channel of the APW9202M has independent enable, and it also allows the two regulators to start together by using the same enable signal. Although the switching frequency of the APW9202M is fixed at 800kHz, it can also change the switching frequency via the PWM/SYNC pin. Another feature of this part is its ability to automatically optimize its BW (DyncBandwidth) to allow better dynamic response once it is synchronized to a higher external clock. The APW9202M also provides a 180-degree phase shifting technique to minimize switching noise. The output voltage of each channel can be adjusted using an external resistor divider. Other features include UVP, current limit, and OTP. The APW9202M is available in a VTQFN2x2-13 package with small size and excellent thermal capacity.
Features
- Input Voltage range: 4.5V to 18V
- 3A/2A Output Current on Channel 1/2
- Low IQ=155μA (typ.) to improve Light Load Efficiency
- Typical 0.6V ±1% Internal Reference Voltage
- Optimized Upper and Lower MOSFETs RDS_on for max Efficiency:
- N-CH MOSFET (50mΩ) for CH1 Low Side
- N-CH MOSFET (105mΩ) for CH2 High Side
- N-CH MOSFET (60mΩ) for CH2 Low Side
- Built in OVP, UVP, Current Limit and OTP
- Low Cost VTQFN2x2-13 package
- DyncBandwidthTM Technology
General Description
The APW9202M is a two-channel synchronous mode PWM converter with 3A continuous current capability for one channel and 2A continuous current capability for the other one. Each channel of the APW9202M has independent enable, and it also allows the two regulators to start together by using the same enable signal. Although the switching frequency of the APW9202M is fixed at 800kHz, it can also change the switching frequency via the PWM/SYNC pin. Another feature of this part is its ability to automatically optimize its BW (DyncBandwidth) to allow better dynamic response once it is synchronized to a higher external clock. The APW9202M also provides a 180-degree phase shifting technique to minimize switching noise. The output voltage of each channel can be adjusted using an external resistor divider. Other features include UVP, current limit, and OTP. The APW9202M is available in a VTQFN2x2-13 package with small size and excellent thermal capacity.
Application
Driver IC series are used in desktops, notebooks, servers, industrial products, automobiles, home appliances, machine tools, robots...
Recently launched a digital control automatic detection IC to overcome many resonance issues caused by polarity and mechanical operation...
Provides complete power solutions for notebook computers with Intel and AMD CPUs
including DC/DC converters/controllers, linear regulators, load switches, and USB port solutions, with high efficiency and high-power density features in applications...
Provides complete power solutions for motherboards using Intel, AMD CPUs and DDR memory
including DC/DC converters/controllers, linear regulators, load switches, and USB port solutions...
We offer power management ICs, LED driver ICs, audio amplifiers, optical sensor ICs, and other components to meet the needs of TV and display applications.
All ICs have built-in protection devices against excessive temperature and overload current to prevent damage to other components under abnormal conditions.
Provides individual high-voltage DC/DC power solutions and highly integrated/customized PMICs for consumer, portable/IOT and automotive electronic products...
Offers low component count designs with low quiescent current, making it ideal for space-constrained PCBs and battery-powered applications.
Provides various discrete or integrated power solutions for DDR memory.
ANPEC Electronics is the best choice to meet its high-performance and high-reliability requirements.
Provides solutions that can meet the standards of high energy efficiency energy density and reliability,
including diverse high-quality semiconductor solutions to customers with the best products, evaluation boards and reference designs for switch mode power supplies.
ANPEC Electronics offers a wide range of solutions for small cell base stations, passive optical networks, routers and TV cable boxes.
Product offers high efficiency, high density, and flexibility to help designers realize cost-effective and high-performance applications in a small form factor.
A graphics card is a hardware device with a core graphics processor to provide display information for a display device.
Provides a variety of power solutions and load switches to meet its high-performance computing and display needs with product application such as NVIDIA, AMD and Intel DG GPU...
In applications such as TVs and notebooks, in order to comply with the EnergyStar and TUV Evey Comfortable standards, ALS (Ambient Light Sensors), RGB Sensors, and Spectrum Sensors have been developed...
Provides complete solutions for solid-state drives (SSD) and servers with power management products with low power consumption, precise sensing, and high performance to support platforms developed for data centers.
Our innovative solution greatly improves data transmission and accuracy with high reliability...
ANPEC Electronics provides comprehensive power solutions for automotive electronics, supporting input voltage ranges from 3V to 42V and offering output current ranges from 1A to 6A...
About Us
Quality is ANPEC’s commitment to the society
ANPEC Electronics Corp., established in October 1997,
is the first listed Power IC design company in Taiwan.
To meet the needs of the high-end market,
ANPEC Electronics started its transformation in 2000,
investing significantly to establish digital/hybrid IC design capabilities and related product lines. It has since become a mixed-signal IC supplier focused on Power Management and Driver Solutions, providing
customers with comprehensive power and mixed-signal solutions.
Continuous Improvement
Customer Satisfaction
Commitment in Quality
Full Participation
Accurate and Precise
DATE
2026/04/17
Company Information
2026 General Meeting of Shareholders
General Meeting of Shareholders
Time : 2026/06/26 9:00 A.M.
DATE
2026/03/18
Social Engagement
【Social Care】Dog Translator: Decoding Your Dog’s Vocal Signals
Invites the “Hsinchu Animal Protection Association” to Share with Colleagues How to Understand a Dog’s Inner Voice.
DATE
2026/03/16
Product Information
APW7720 PMIC features 7 Buck Converters, 6 LDOs, 2 LSs and Flexible System Settings via I2C and MTP
The APW7720 Power Management IC (PMIC) only requires one supply input, LI-ION Battery (3.0~4.3V) or 5.0V, generates seven PWM step-down converters, five low-noise LDOs, one RTC-dedicated LDO, and two enable logic control.
DATE
2026/02/11
Financial Information
ANPEC Electronics has published the 2025 Consolidated Financial Statements, and the after-tax earnings per share was NT$13.04
ANPEC Electronics held a board meeting on February 11 and approved the 2025 financial statements.
DATE
2026/01/15
Product Information
Discover the APW8895: a Synchronous NVDC Buck-Boost Switching Charger Controller
This versatile device seamlessly transitions between buck, buck-boost, and boost modes, catering to 2- to 4-cell Li-ion batteries.
DATE
2025/11/27
Product Information
The APX9351 Provides All the Circuitry for Sensor-less Speed Control of three-phase Brushless DC Motor
The APX9351 Provides All the Circuitry for Sensor-less Speed Control of three-phase Brushless DC Motor.
DATE
2025/11/24
Company Information
2025-Q3 Earnings Conference
ANPEC Has Been Invited to Participate in The TPEx Corporate Day Hosted by The Taipei Exchange.
DATE
2025/11/19
Company Information
2026 Investment Trends Forum and Operational Overview
ANPEC Has Been Invited to Participate in the Concord Securities 2026 Investment Trends Forum.
DATE
2025/11/14
Product Information
ANPEC Collaborates with Valens Semiconductor to Deliver Optimized Automotive Power Solutions
We are thrilled to announce a collaboration between ANPEC and Valens to develop cutting-edge solutions for the automotive industry. The companies collaborated on integrating ANPEC's APW9304H, an AEC-Q100 qualified Power Management IC, known for its ultra-low EMI feature and flexible power sequencing, to Valens' VA7000 and VA6000 series product reference designs for ADAS, autonomous driving and in-car entertainment systems.
DATE
2025/11/14
Product Information
APW9304H is an Ultra-low EMI Triple Buck Converter and Designed for Automotive Applications (AEC-Q100)
Meet the APW9304H, an advanced triple buck converter designed for automotive excellence (AEC-Q100).
DATE
2025/11/12
Financial Information
ANPEC Electronics has published the 2025 Q3 Consolidated Financial Statements, and the after-tax earnings per share was NT$9.27
ANPEC Electronics held a board meeting on November 12 and approved the 2025 Q3 financial statements.
DATE
2025/09/03
Company Information
Awarded the “2025 Taiwan Best-in-Class Companies” in the 2025 Taiwan FINI 100
ANPEC (Stock Code: 6138) stood out among 2,194 listed and OTC companies in Taiwan and received the “2025 Taiwan Best-in-Class Companies”.
DATE
2025/08/08
Financial Information
ANPEC Electronics has published the 2025 Q2 Consolidated Financial Statements, and the after-tax earnings per share was NT$5.30
ANPEC Electronics held a board meeting on August 8 and approved the 2025 Q2 financial statements.
DATE
2025/07/24
Social Engagement
【Social Care】A Bag of Blood, a Gift of Hope!
At ANPEC, we believe that small acts of kindness can inspire boundless positive impact. This event successfully collected 130 bags of blood, each a beacon of hope bringing renewed possibilities to more patients.
DATE
2025/07/01
Company Information
Among the 2024 Top 5000 Large Enterprises in Taiwan
Ranked 26th in the IC design industry among the 2024 Top 5000 Large Enterprises in Taiwan by China Credit Information Service Ltd.
DATE
2025/06/25
Company Information
Workplace Health Promotion Self-Assessment Certificate
ANPEC is committed to promoting workplace health, actively implementing workplace health promotion measures. It has been evaluated and certified as qualified.
DATE
2025/06/16
Product Information
Discover the APE5035: 96 Channel LED Local Dimming Controller for LCD Backlight
The APE5035 integrates a MOSFET and a 96-channel LED controller for LCD backlighting. It provides highly accurate LED current control (2% with a 30mA LED current) and operates over a wide input voltage range.
DATE
2025/05/20
Company Information
The 2024 CommonWealth Magazine Top 2000 Companies
Ranked 495th in the manufacturing industryand 26th in the IC design industry among the 2024 CommonWealth Magazine Top 2000 Companies by CommonWealth Magazine.
DATE
2025/05/15
Social Engagement
【Employee Care】Vision Care Lecture - It's Simple to get Eyes Health
The eyes are the 'windows to the soul.' Having bright eyes allows you to enjoy a wonderful life.
DATE
2025/05/09
Financial Information
ANPEC Electronics has published the 2025 Q1 Consolidated Financial Statements, and the after-tax earnings per share was NT$2.60
ANPEC Electronics held a board meeting on May 9 and approved the 2025 Q1 financial statements.
DATE
2025/05/07
Social Engagement
【Social Care】Charity for Mother's Day
Let the disadvantaged groups also feel the warmth of Mother's Day and make all the children feel happy.
ANPEC ordered 298 boxes of Mother's Day cookies from Children Are Us Foundation. Total of 81,056 NT.
DATE
2025/03/31
Social Engagement
【Social Care】Joyful and Loving Children's Day
In this joyful and loving Children's Day, the Welfare Committee will distribute "Ten-Grain Rice Gift Boxes" from the "Children Are Us Foundation" to everyone. Each plump grain of rice represents heartfelt gratitude.
DATE
2024/12/25
Company Information
2024 iSports Enterprise Certification
By the Sports Administration, Ministry of Education. In the future, we will uphold the sports spirit of excellence and continue to promote workplace health and employee sports culture.
