( There are 2 products that match the search criteria )
Part Number Package & Pins PD Channel Supply Voltage (V)-min Supply Voltage (V)-max Supply Current (μA)-Operation Supply Current (μA)-Waiting Shutdown Current (μA) MSL
ALL
APS5201E OTFN1.5x2.95-5 ALS/W 1.7 3.6 257 55 1.0 MSL3
APS5202 OTFN1.4x1.79-8 ALS/W 1.7 3.6 257 55 1.0 MSL1

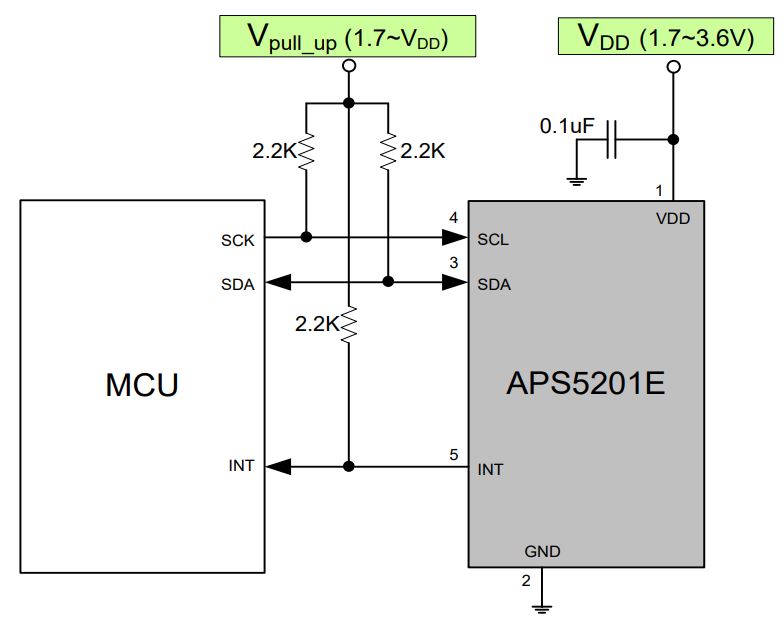

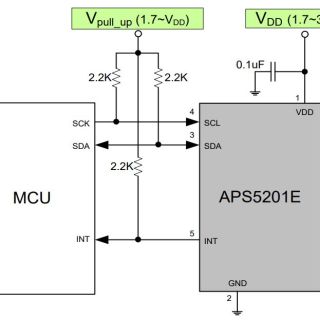

APS5201E
Active
High Sensitivity Ambient Light Sensor

Features
  • Optical Package: OMDFN-5
− 2.95 x 1.5 x 1.4mm
− Support Smallest Lens Hole Design
− Closest Edge Layout
− MSL3
  • Operation 1.7V~3.6V
  • Immunity On Fluorescent Light Flicker
  • I2C Bus Protocol Interface
  • Supports Interruption Feature (INT)
  • Software Shutdown Mode Control
  • Lowest Power

General Description

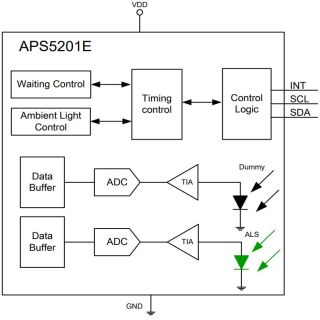

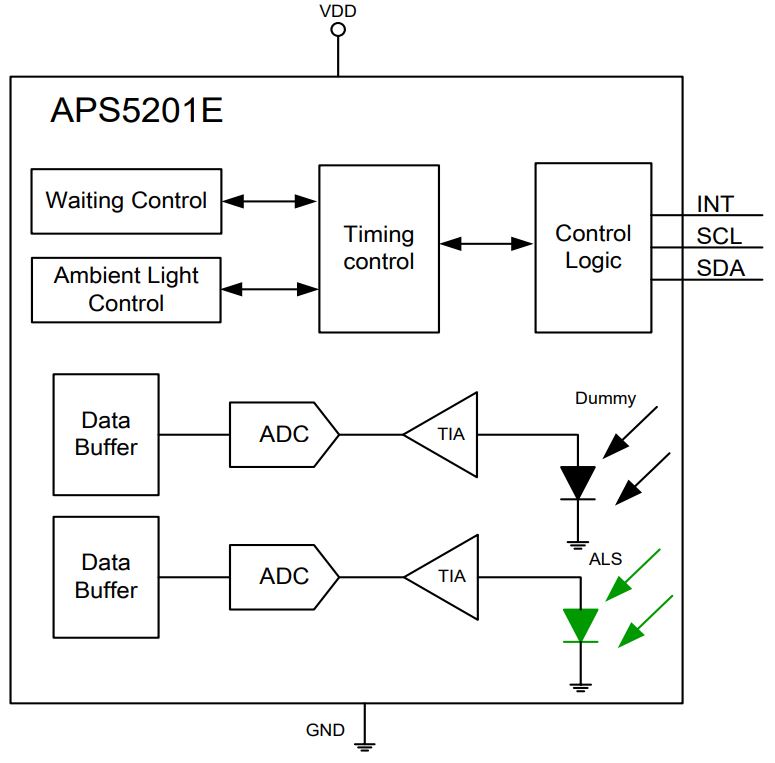

The APS5201E is a high sensitivity Ambient Light sensor that provides programmable gain, sensitivity, integration time for wider dynamic range of light measurement with very low power consumption in a small OMDFN-5, 2.95 x 1.5 x 1.4mm optical package. The optical-basedsensor includes photo detector, transimpedance amplifier, 16bits analog to digital converter to be integrated advance 0.18µm CMOS process. The APS5201E digital features include programmable interrupt thresholds to provide alerts and offer shutdown mode that power down the device and gives a shutdown current of 1.0µA typical.
Download+ Add to Inquiry+ Add to Comparison +

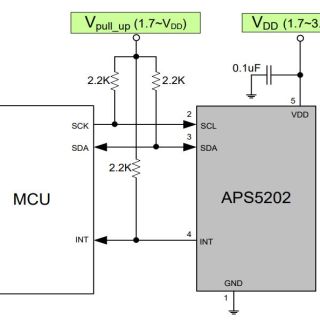

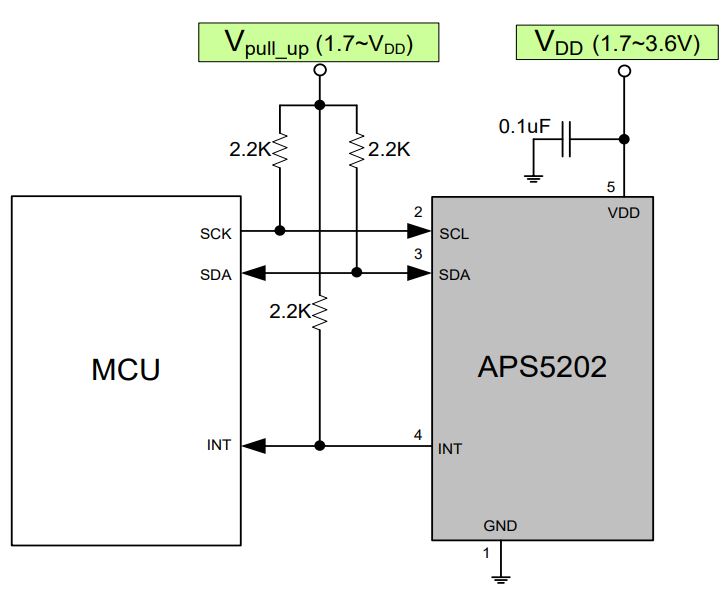

APS5202
Active
High Sensitivity Ambient Light Sensor

Features
  • Optical Package: OTFNTM-8
−      1.79 x 1.4 x 0.7mm
−      Support Smallest Lens Hole Design
−      Closest Edge Layout
−      MSL1
  • Operation 1.7V~3.6V
  •  Immunity On Fluorescent Light Flicker
  •  I2C Bus Protocol Interface
  • Supports Interruption Feature (INT)
  • Software Shutdown Mode Control
  • Lowest Power

General Description

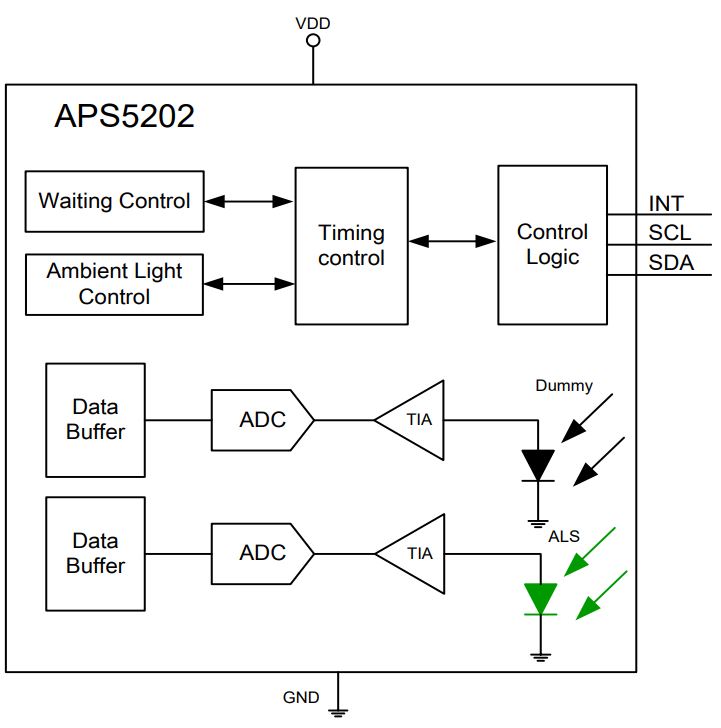

The APS5202 is a high sensitivity Ambient Light sensor that provides programmable gain, sensitivity, integration time for wider dynamic range of light measurement with very low power consumption in a small OTFNTM-8, 1.79 x 1.4 x 0.7mm optical package. The optical-basedsensor includes photo detector, transimpedance amplifier, 16bits analog to digital converter to be integrated advance 0.18µm CMOS process. The APS5202 digital features include programmable interrupt thresholds to provide alerts and offer shutdown mode that power down the device and gives a shutdown current of 1.0µA typical.
Download+ Add to Inquiry+ Add to Comparison +
