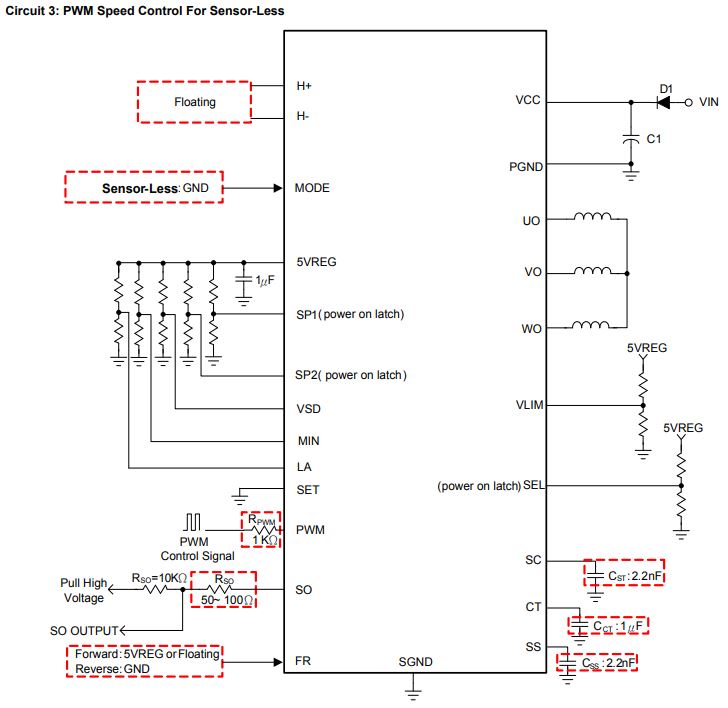

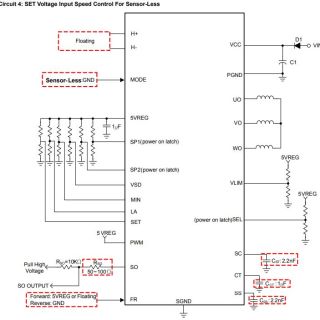

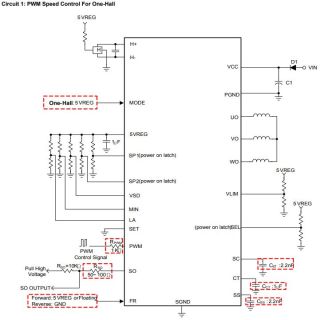

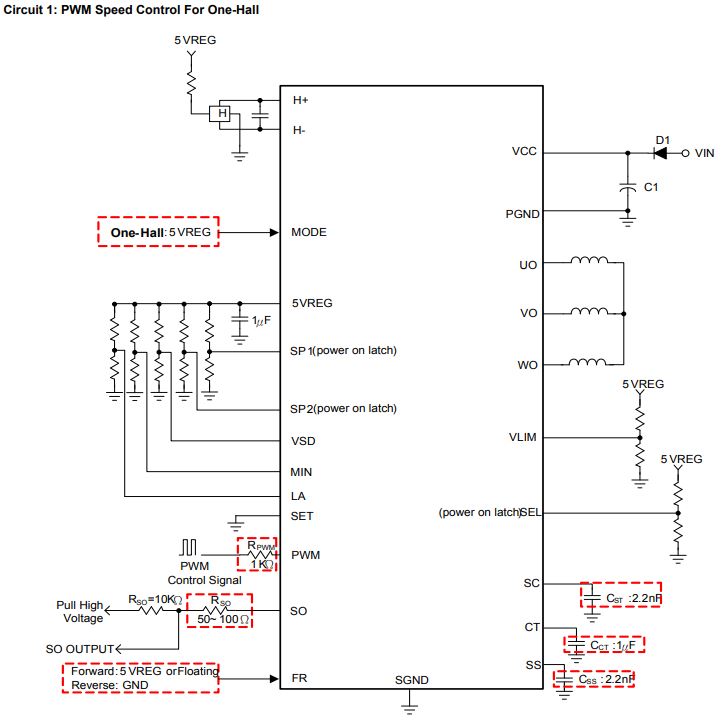

APX9322
Active
Three-Phase Full-wave Sine-wave Brushless Motor Driver
Features
General Description

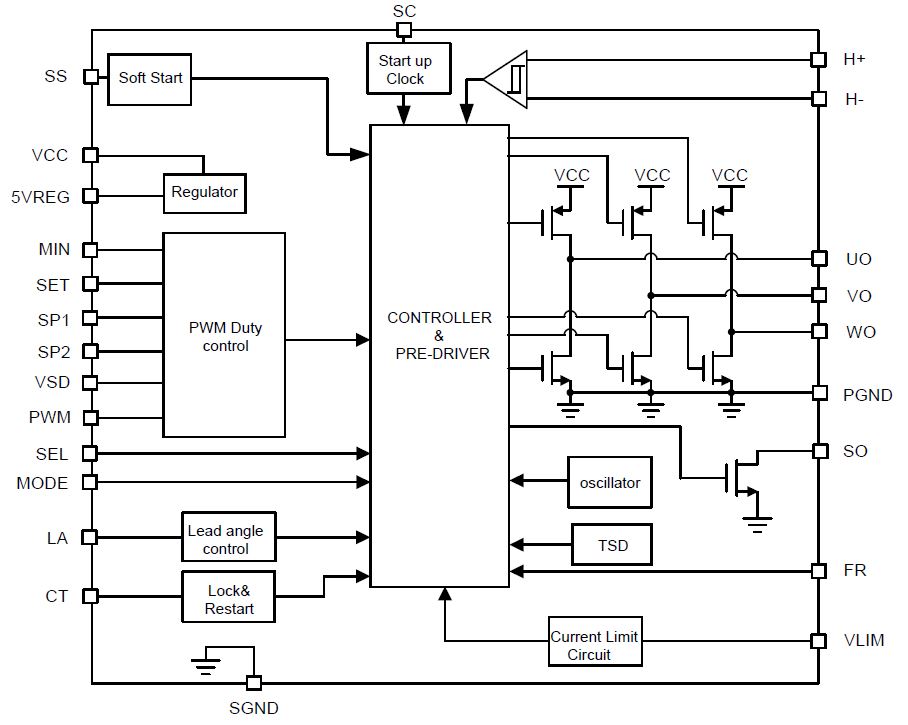

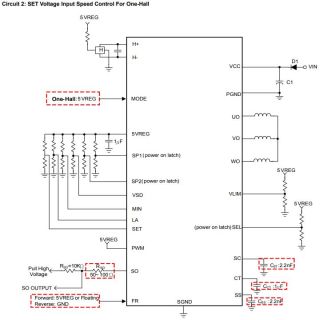

The APX9322 is a three-phase full-wave sine-wave brushless motor drive by one-hall. This IC built-in linear or direct PWM input speed control, leading angle setting, current limit and soft start features suitable for the three phase brushless DC motors. The APX9322 is available in QFN4x4-24A and TSSOP-28P packages (see Pin Configuration).
Features
- Three-Phase Full-Wave Sine-Wave Driver
- One-Hall or Sensor-Less driver control
- Rpm-Curve Control
- Rotation Direction Selectable
- Built-in 5V LDO Regulator
- Built-in Current Limit Circuit
- Built-in Over Current Protection
- Built-in Lock Protection and Auto Restart Function
- Soft Start Function
- FG, 1/2FG, 1/3FG or RD Output
- Built-in Thermal Shutdown Protection
- QFN4x4-24A Package and TSSOP-28P Package
- Lead Free and Green Device Available (RoHS Compliant)
- PWM or SET or PWM+SET control OUT Duty
- Power Saving Function (PWM=0)
General Description
The APX9322 is a three-phase full-wave sine-wave brushless motor drive by one-hall. This IC built-in linear or direct PWM input speed control, leading angle setting, current limit and soft start features suitable for the three phase brushless DC motors. The APX9322 is available in QFN4x4-24A and TSSOP-28P packages (see Pin Configuration).
APX9323
Active
Three-Phase Full-wave Sine-wave Brushless Motor Driver
Features
General Description

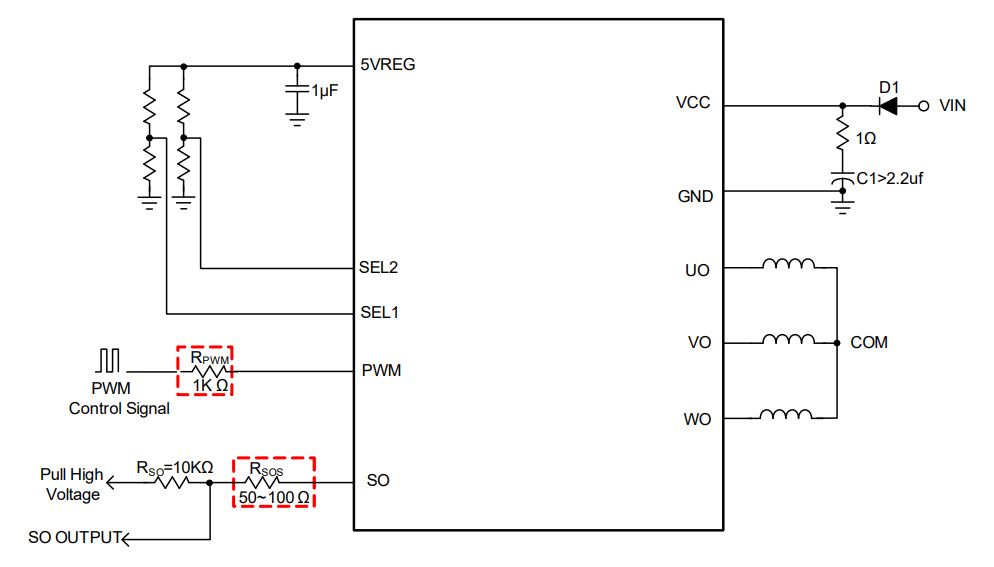

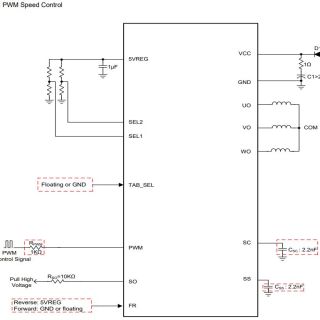

The APX9323 is a three-phase full-wave sine-wave brushless motor drive by sensor-less. This IC built-in direct PWM input speed control, current limit and soft start features suitable for the three-phase brushless DC motors. The APX9323 is available in VTDFN3x3-10 package (see Pin Configuration).
Features
- Three-Phase Full-Wave Sine-Wave Driver
- Sensor-Less driver control
- PWM Speed Control
- Minimum Speed Setting
- Power Saving Function
- Built-in 5V LDO Regulator
- Built-in Current Limit Circuit
- Built-in Over Current Protection
- Built-in Lock Protection and Auto Restart Function
- Soft Start Function
- FG, 1/2FG, 1/3FG or RD Output
- Built-in Thermal Shutdown Protection
- Lead Free and Green Device Available (RoHS Compliant)
General Description
The APX9323 is a three-phase full-wave sine-wave brushless motor drive by sensor-less. This IC built-in direct PWM input speed control, current limit and soft start features suitable for the three-phase brushless DC motors. The APX9323 is available in VTDFN3x3-10 package (see Pin Configuration).
APX9323A
Active
Three-Phase Full-wave Sine-wave Brushless Motor Driver
Features
General Description

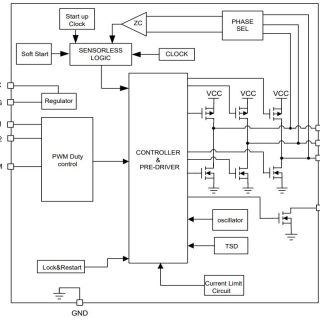

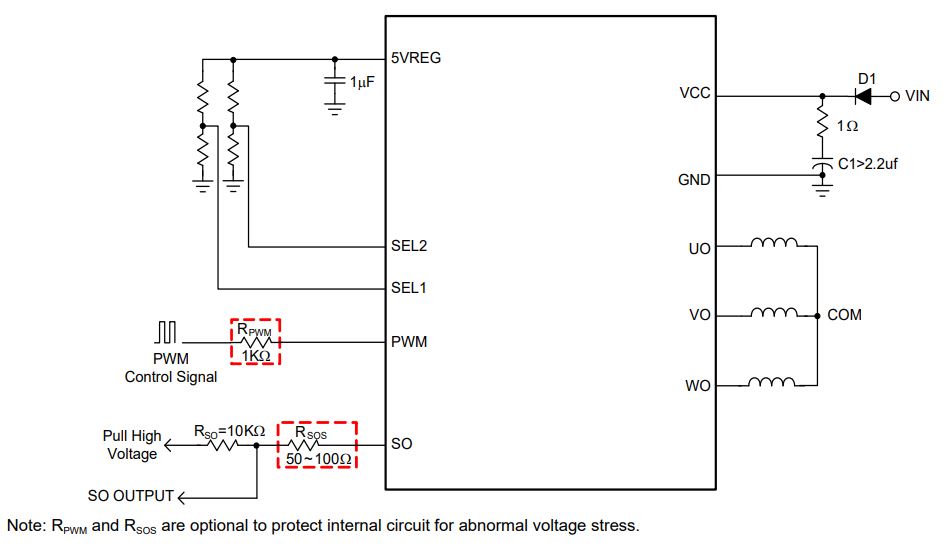

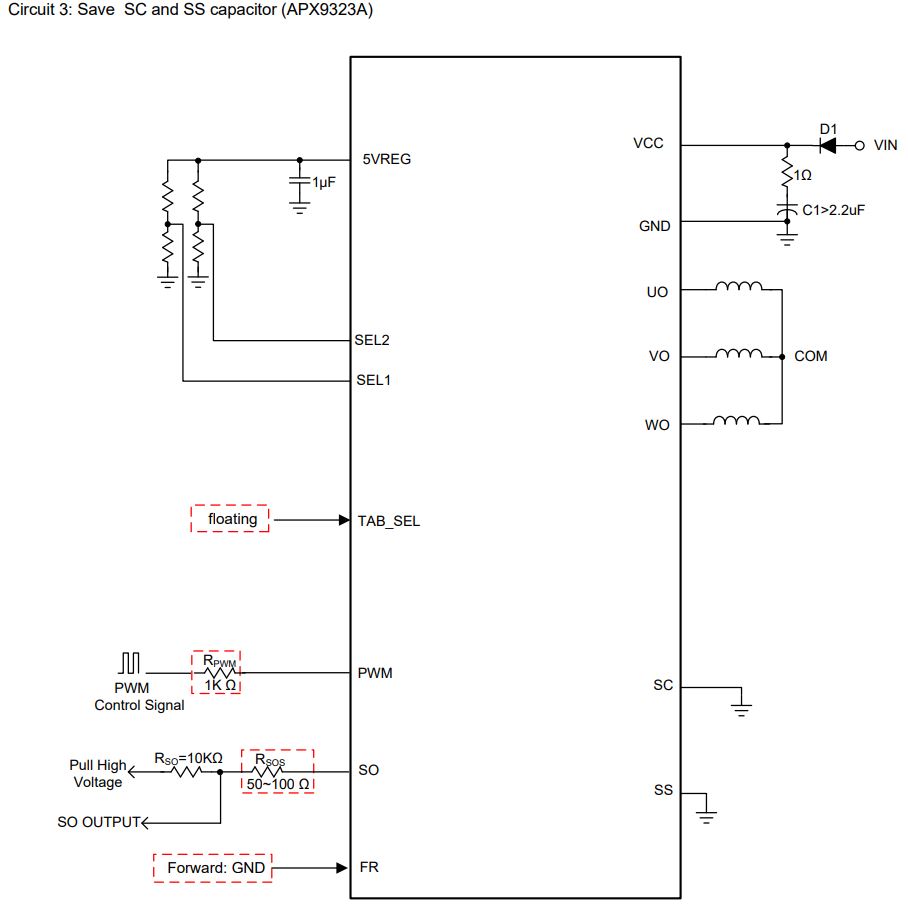

The APX9323A is a three-phase full-wave sine-wave brushless motor drive by sensor-less. This IC built-in direct PWM input speed control, current limit and soft start features suitable for the three-phase brushless DC motors. The APX9323A is available in VTDFN3x3-10 package (see Pin Configuration).
Features
- Three-Phase Full-Wave Sine-Wave Driver
- Sensor-Less driver control
- PWM Speed Control
- Minimum Speed Setting
- Power Saving Function
- Built-in 5V LDO Regulator
- Built-in Current Limit Circuit
- Built-in Over Current Protection
- Built-in Lock Protection and Auto Restart Function
- Soft Start Function
- FG, 1/2FG or 1/3FG Output
- Built-in Thermal Shutdown Protection
- Lead Free and Green Device Available (RoHS Compliant)
General Description
The APX9323A is a three-phase full-wave sine-wave brushless motor drive by sensor-less. This IC built-in direct PWM input speed control, current limit and soft start features suitable for the three-phase brushless DC motors. The APX9323A is available in VTDFN3x3-10 package (see Pin Configuration).
APX9323B
Active
Three-Phase Full-wave Sine-wave Brushless Motor Driver
Features
General Description
The APX9323B is a three-phase full-wave sine-wave brushless motor drive by sensor-less. This IC built-in direct PWM input speed control, current limit and soft start features suitable for the three-phase brushless DC motors. The APX9323B is available in VTDFN3x3-10 package (see Pin Configuration).
Features
- Three-Phase Full-Wave Sine-Wave Driver
- Sensor-Less Driver Control
- PWM Speed Control
- Minimum Speed Setting
- Power Saving Function
- Built-in 5V LDO Regulator
- Built-in Current Limit Circuit
- Built-in Over Current Protection
- Built-in Lock Protection and Auto Restart Function
- Soft Start Function
- FG, 1/2FG, RD or 1/3FG Output
- Built-in Thermal Shutdown Protection
General Description
The APX9323B is a three-phase full-wave sine-wave brushless motor drive by sensor-less. This IC built-in direct PWM input speed control, current limit and soft start features suitable for the three-phase brushless DC motors. The APX9323B is available in VTDFN3x3-10 package (see Pin Configuration).
APX9324A
Active
Three-Phase Full-wave Sine-wave Brushless Motor Driver
Features
General Description

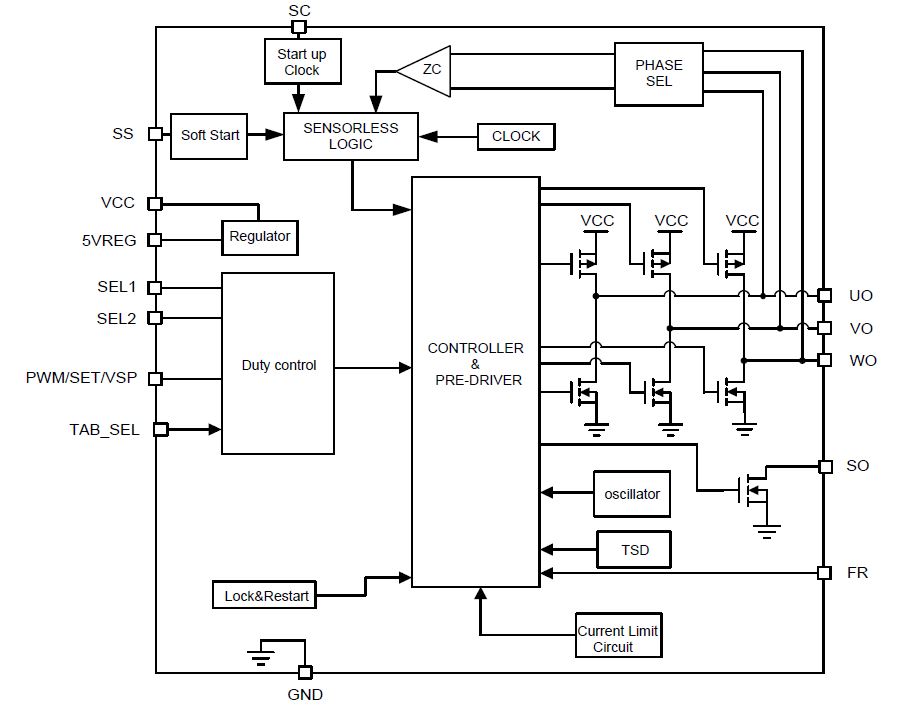

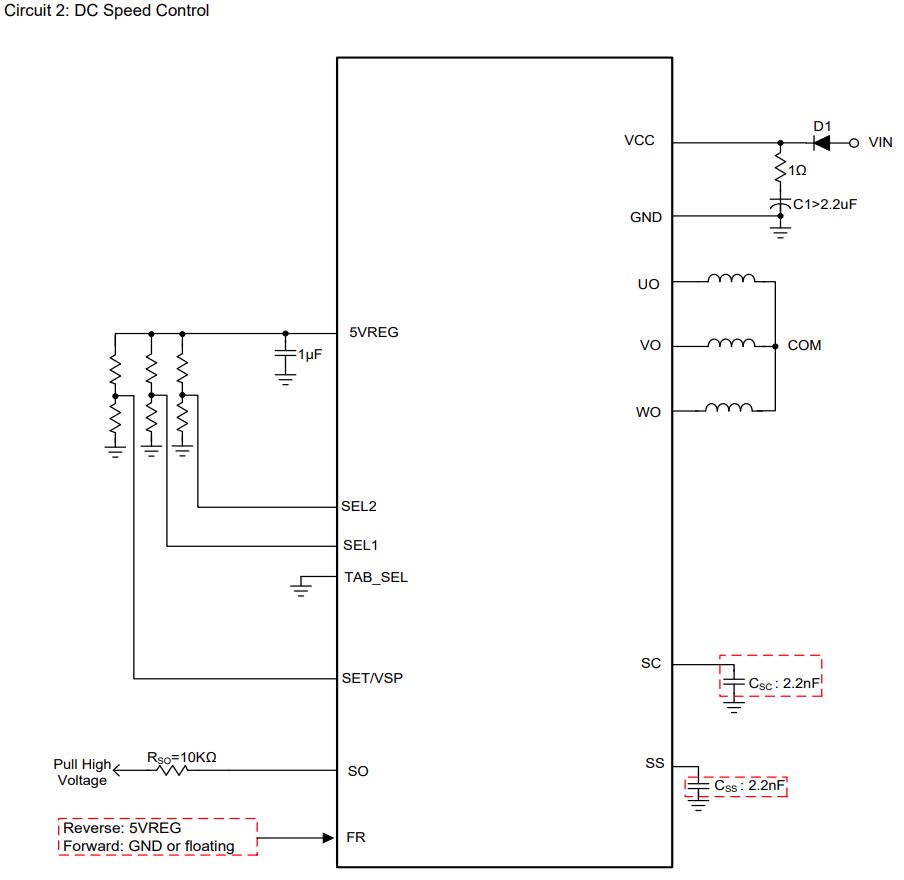

The APX9324A is a three-phase full-wave sine-wave brushless motor drive by sensor-less. This IC built-in linear or direct PWM input speed control, current limit and soft start features suitable for the three-phase brushless DC motors. The APX9324A is available in TSSOP-14 and VTDFN3x4-14 packages (see Pin Configuration).
Features
- Three-Phase Full-Wave Sine-Wave Driver
- Sensor-Less driver control
- PWM/SET/VSP Speed Control
- DC Speed Control
- Minimum Speed Setting
- Power Saving Function
- Built-in 5V LDO Regulator
- Built-in Current Limit Circuit
- Built-in Over Current Protection
- Built-in Lock Protection and Auto Restart Function
- Soft Start Function
- FG, 1/2FG, 1/3FG or RD Output
- Rotation Direction Selectable
- Built-in Thermal Shutdown Protection
- Built-in Tailwind Start-Up and Headwind Start-Up
General Description
The APX9324A is a three-phase full-wave sine-wave brushless motor drive by sensor-less. This IC built-in linear or direct PWM input speed control, current limit and soft start features suitable for the three-phase brushless DC motors. The APX9324A is available in TSSOP-14 and VTDFN3x4-14 packages (see Pin Configuration).
APX9358D
Active
Three-Phase Sine-wave Sensor-Less Fan Motor Driver
Features
General Description

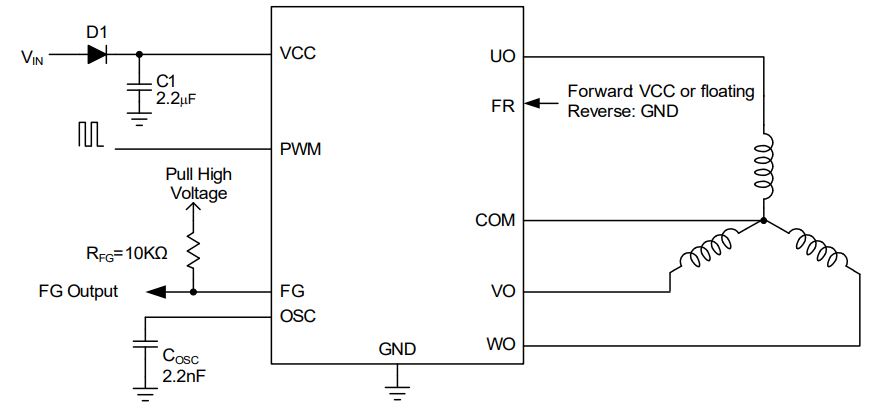

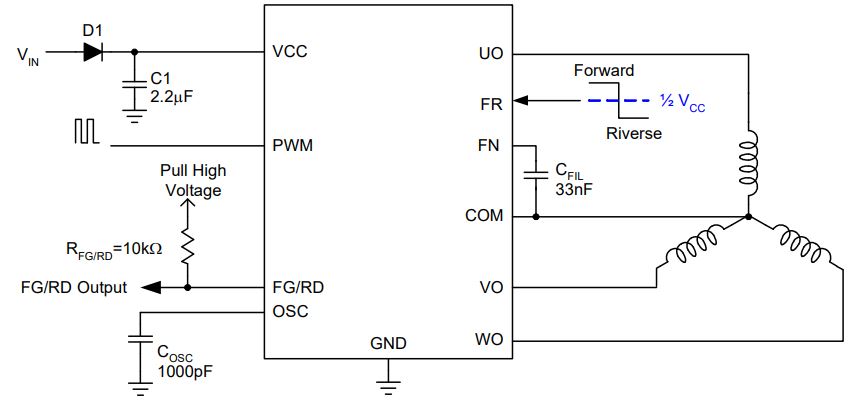

The APX9358D provides all the circuitry for sensor-less speed control of three-phase brushless DC motor. The Sine-wave Driver Method will be better low-noise. The controller functions include start-up circuit, back-EMF commutation control, Pulse Width Modulation (PWM) speed control, lock protection, and thermal shutdown circuit. The APX9358D is suitable for both game machine and CPU cooler that need silent drivers. It is available in VTDFN3x3-10 package.
Features
- PWM Quasi-Sinusoidal Driver
- Three-Phase Sensor-Less Drive Method
- Adjustable Forced Commutation Frequency (for Start-up)
- Built-In External PWM Speed Control
- Built-In Quick Start Function
- FG (Rotation Speed Detection) Output
- Soft Switching Circuit (for Noise Reducing)
- Power Saving Function (PWM Duty Input is 0%)
- Built-In Lock Protection and Auto Restart Function
- Thermal Shutdown Circuit
- Lead Free and Green Devices Available (RoHS Compliant)
General Description
The APX9358D provides all the circuitry for sensor-less speed control of three-phase brushless DC motor. The Sine-wave Driver Method will be better low-noise. The controller functions include start-up circuit, back-EMF commutation control, Pulse Width Modulation (PWM) speed control, lock protection, and thermal shutdown circuit. The APX9358D is suitable for both game machine and CPU cooler that need silent drivers. It is available in VTDFN3x3-10 package.
APX9358E
Active
Three-Phase Sine-wave Sensor-Less Fan Motor Driver
Features
General Description

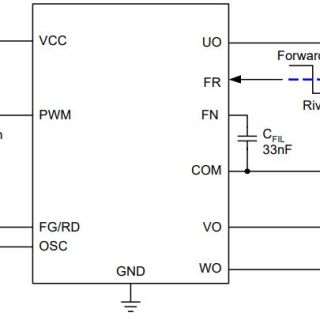

The APX9358E provides all the circuitry for sensor-less speed control of three-phase brushless DC motor. The Sine-wave Driver Method will be better low-noise. The controller functions include start-up circuit, back-EMF commutation control, Pulse Width Modulation (PWM) speed control, lock protection, and thermal shutdown circuit. The APX9358E is suitable for both game machine and CPU cooler that need silent drivers. It is available in VTDFN3x3-10 package.
Features
- PWM Quasi-Sinusoidal Driver
- Three-Phase Sensor-Less Drive Method
- Adjustable Forced Commutation Frequency (for Start-up)
- Built-In External PWM Speed Control
- Built-In Quick Start Function
- FG (Rotation Speed Detection) Output
- Soft Switching Circuit (for Noise Reducing)
- Power Saving Function (PWM Duty Input is 0%)
- Built-In Lock Protection and Auto Restart Function
- Thermal Shutdown Circuit
- Lead Free and Green Devices Available (RoHS Compliant)
General Description
The APX9358E provides all the circuitry for sensor-less speed control of three-phase brushless DC motor. The Sine-wave Driver Method will be better low-noise. The controller functions include start-up circuit, back-EMF commutation control, Pulse Width Modulation (PWM) speed control, lock protection, and thermal shutdown circuit. The APX9358E is suitable for both game machine and CPU cooler that need silent drivers. It is available in VTDFN3x3-10 package.
APX9359A
Active
Three-Phase Sensor-Less Fan Motor Driver
Features
General Description
The APX9359A provides all the circuitry for sensor-less speed control of three-phase brushless DC motor. The controller functions include start-up circuit, back-EMF commutation control, Pulse Width Modulation (PWM) speed control, voltage speed control, lock protection, and thermal shutdown circuit. The APX9359A is suitable for both game machine and CPU cooler that need silent drivers. It is available in VTDFN2x2-10 package.
Features
- Three-Phase Full-Wave Sensor-Less Drive
- Adjustable Forced Commutation Frequency (for Start-up)

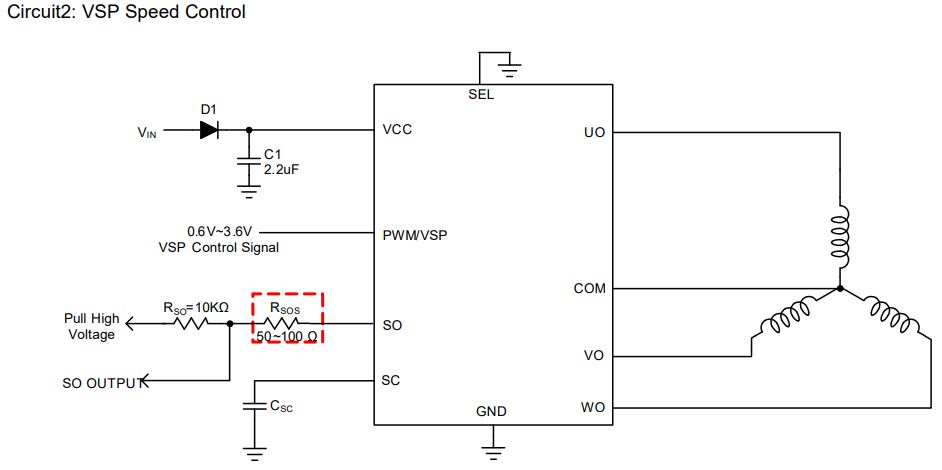

- Built-In External PWM or VSP Speed Control
- Built-In Quick Start Function
- FG, 1/2FG or RD Output
- Power Saving Function
- Built-In Lock Protection and Auto Restart Function
- Built-in Thermal Protection Circuit
- Lead Free and Green Device Available (RoHS Compliant)
General Description
The APX9359A provides all the circuitry for sensor-less speed control of three-phase brushless DC motor. The controller functions include start-up circuit, back-EMF commutation control, Pulse Width Modulation (PWM) speed control, voltage speed control, lock protection, and thermal shutdown circuit. The APX9359A is suitable for both game machine and CPU cooler that need silent drivers. It is available in VTDFN2x2-10 package.
APX9360
Active
Three-Phase Sine-wave Sensor-Less Fan Motor Driver
Features
General Description
The APX9360 provides all the circuitry for sensor-less speed control of three-phase brushless DC motor. The Sine-wave Driver method will be better sound quality. The controller functions include start-up circuit, back-EMF commutation control, Pulse Width Modulation (PWM) speed control, voltage speed control, lock protection, and thermal shutdown circuit. The APX9360 is suitable for both game machine and CPU cooler that need silent drivers. It is available in VTDFN3x3-10 package.
Features
- PWM Sine-Wave Driver
- Three-Phase Sensor-Less Drive
- Adjustable Forced Commutation Frequency (for Start-up)
- Built-In External PWM or VSP Speed Control
- Built-In Quick Start Function
- FG, 1/2FG or RD Output
- Power Saving Function
- Built-In Lock Protection and Auto Restart Function
- Built-in Thermal Protection Circuit
- Lead Free and Green Device Available (RoHS Compliant)
General Description
The APX9360 provides all the circuitry for sensor-less speed control of three-phase brushless DC motor. The Sine-wave Driver method will be better sound quality. The controller functions include start-up circuit, back-EMF commutation control, Pulse Width Modulation (PWM) speed control, voltage speed control, lock protection, and thermal shutdown circuit. The APX9360 is suitable for both game machine and CPU cooler that need silent drivers. It is available in VTDFN3x3-10 package.
APX9360A
Active
Three-Phase Sine-wave Sensor-Less Fan Motor Driver
Features
General Description
The APX9360A provides all the circuitry for sensor-less speed control of three-phase brushless DC motor. The Sine-wave Driver method will be better sound quality. The controller functions include start-up circuit, back-EMF commutation control, Pulse Width Modulation (PWM) speed control, voltage speed control, lock protection, and thermal shutdown circuit. The APX9360A is suitable for both game machine and CPU cooler that need silent drivers. It is available in VTDFN3x3-10 package.
Features
- PWM Sine-Wave Driver
- Three-Phase Sensor-Less Drive
- Adjustable Forced Commutation Frequency (for Start-up)
- Built-In External PWM or VSP Speed Control
- Built-In Quick Start Function
- FG, 1/2FG or RD Output
- Power Saving Function
- Built-In Lock Protection and Auto Restart Function
- Built-in Thermal Protection Circuit
- Lead Free and Green Device Available (RoHS Compliant)
General Description
The APX9360A provides all the circuitry for sensor-less speed control of three-phase brushless DC motor. The Sine-wave Driver method will be better sound quality. The controller functions include start-up circuit, back-EMF commutation control, Pulse Width Modulation (PWM) speed control, voltage speed control, lock protection, and thermal shutdown circuit. The APX9360A is suitable for both game machine and CPU cooler that need silent drivers. It is available in VTDFN3x3-10 package.
APX9365A
Active
Three-Phase Sensor-Less Fan Motor Driver
Features
General Description
The APX9365A provides all the circuitry for sensorless speed control of three-phase brushless DC motor. The controller functions include start-up circuit, back-EMF commutation control, Pulse Width Modulation (PWM) speed control, lock protection, and thermal shutdown circuit. The APX9365A is suitable for both game machine and CPU cooler that need silent drivers. It is available in VTDFN3x3-10 package.
Features
- Three-Phase Full-Wave Sensor-Less Drive Method
- Adjustable Forced Commutation Frequency (for Start-up)
- Built-In External PWM Speed Control
- Built-In Quick Start Function
- FG (Rotation Speed Detection) Output (for APX9365A)
- Soft Switching Circuit (for Noise Reducing)
- Power Saving Function (PWM Duty Input is 0%)
- Built-In Lock Protection and AutoRestart Function
- Thermal Shutdown Circuit
- Lead Free and Green Devices Available (RoHS Compliant)
General Description
The APX9365A provides all the circuitry for sensorless speed control of three-phase brushless DC motor. The controller functions include start-up circuit, back-EMF commutation control, Pulse Width Modulation (PWM) speed control, lock protection, and thermal shutdown circuit. The APX9365A is suitable for both game machine and CPU cooler that need silent drivers. It is available in VTDFN3x3-10 package.
