APX9137
Active
High Sensitivity Hall Effect Sensor Latch IC
Features
General Description

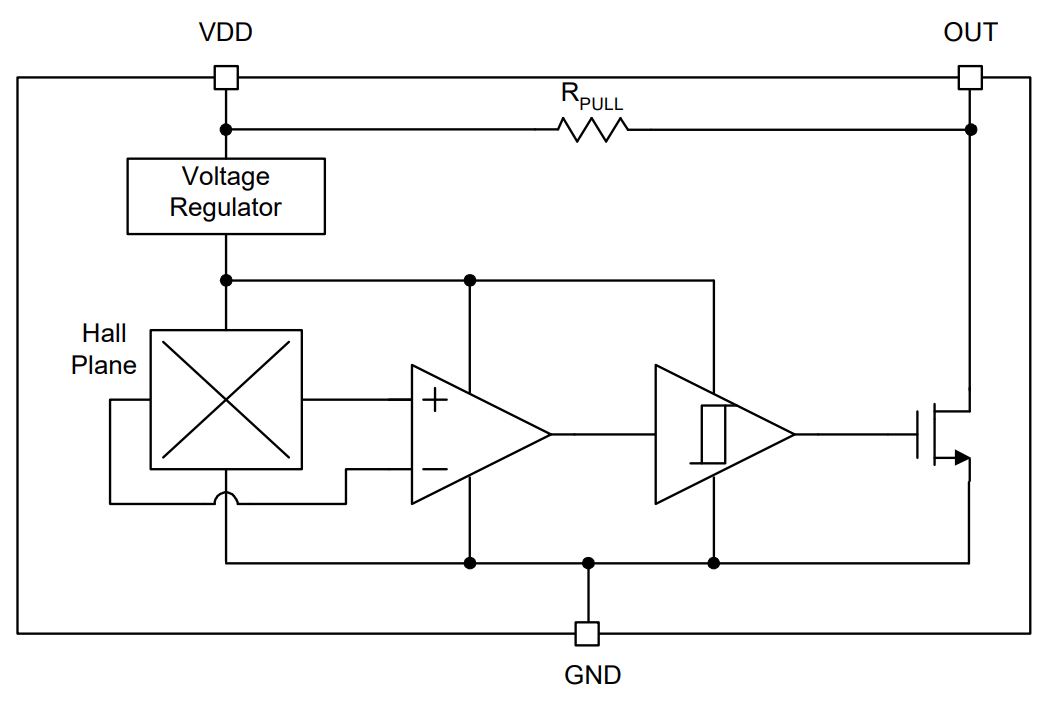

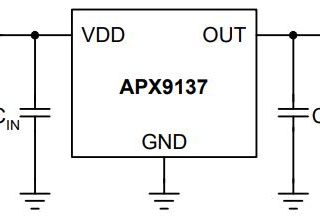

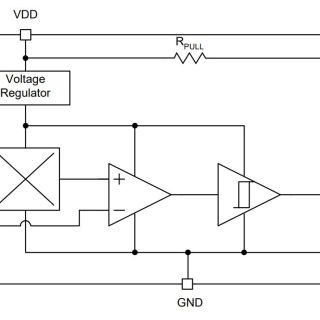

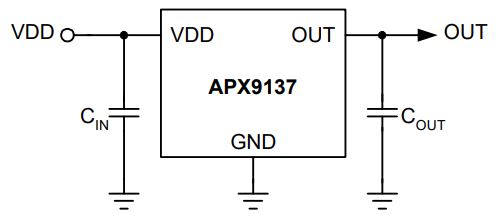

The APX9137 is an integrated Hall-Effect sensor latch IC designed for electric commutation of three-phase Brushless DC motor applications. The APX9137 is available in a low cost TO-92M3 and SOT-23-3 packages.
Features
- On-Chip Hall Sensor
- Wide Operating Voltage Range: 2.2V to 24V
- Low Operating Supply Current
- Built-in Pull-up Resistor
- High Sensitivity Hall Effect Sensor IC: ±60G
- 3 Pin TO-92M3 and SOT-23 Packages
- Lead Free and Green Devices Available (RoHS Compliant)
General Description
The APX9137 is an integrated Hall-Effect sensor latch IC designed for electric commutation of three-phase Brushless DC motor applications. The APX9137 is available in a low cost TO-92M3 and SOT-23-3 packages.
APX9137A
Active
High Sensitivity Hall Effect Sensor Latch IC
Features
General Description

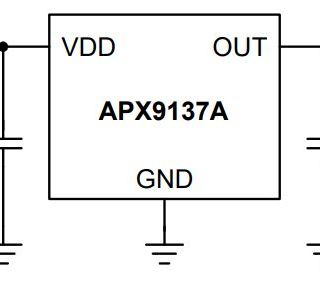

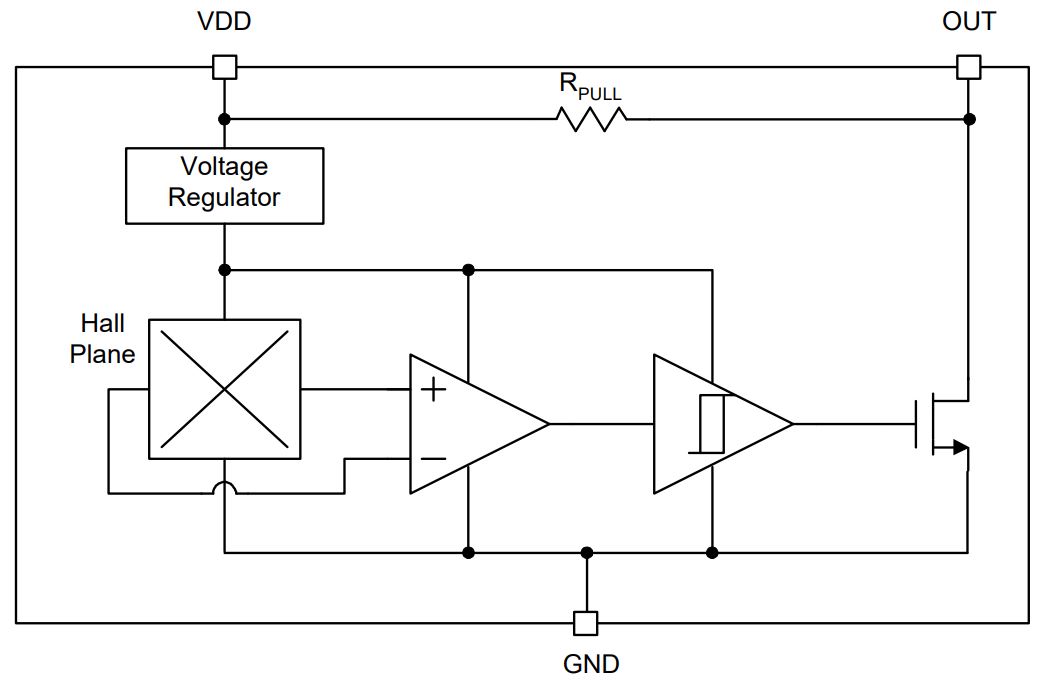

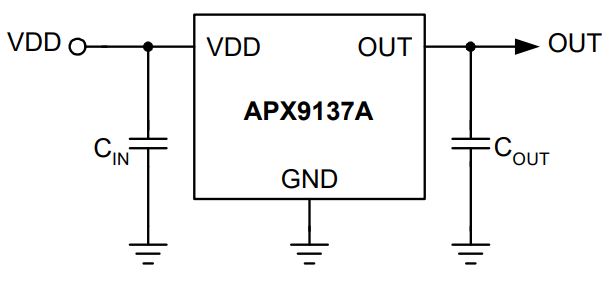

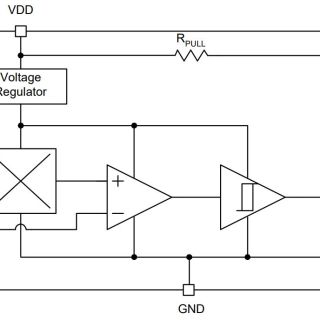

The APX9137A is an integrated Hall-Effect sensor latch IC designed for electric commutation of three-phase Brushless DC motor applications. The APX9137A is available in a low cost SOT-23-3 package.
Features
- On-Chip Hall Sensor
- Wide Operating Voltage Range: 2.2V to 24V
- Low Operating Supply Current
- Built-in Pull-up Resistor
- High Sensitivity Hall Effect Sensor IC: ±60G
- 3 Pin SOT-23 Package
- Lead Free and Green Devices Available (RoHS Compliant)
General Description
The APX9137A is an integrated Hall-Effect sensor latch IC designed for electric commutation of three-phase Brushless DC motor applications. The APX9137A is available in a low cost SOT-23-3 package.
