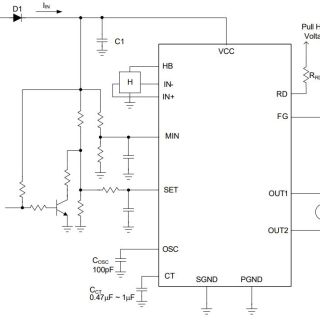

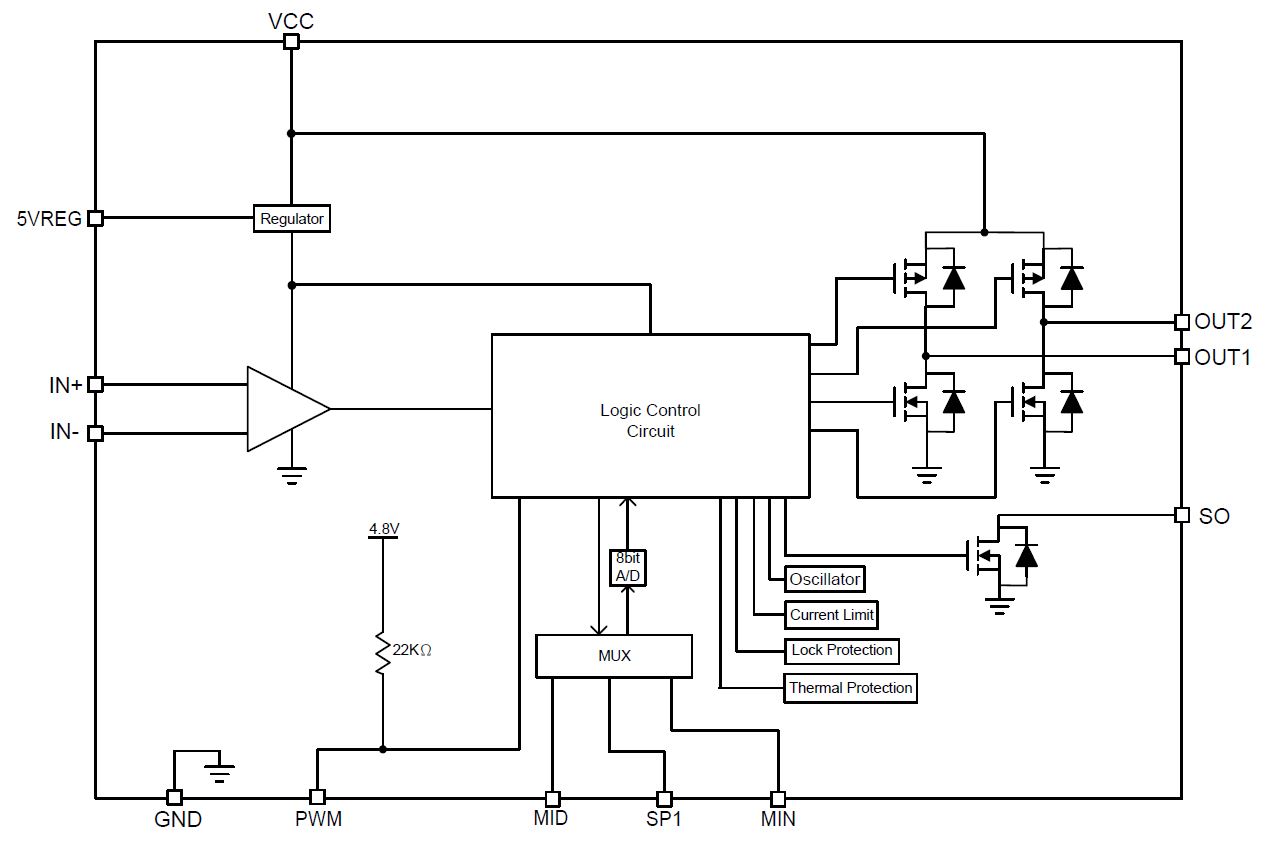

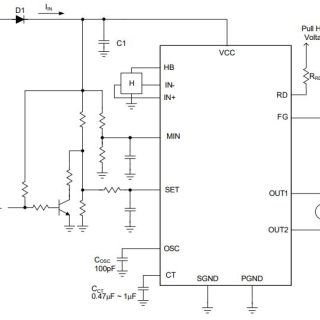

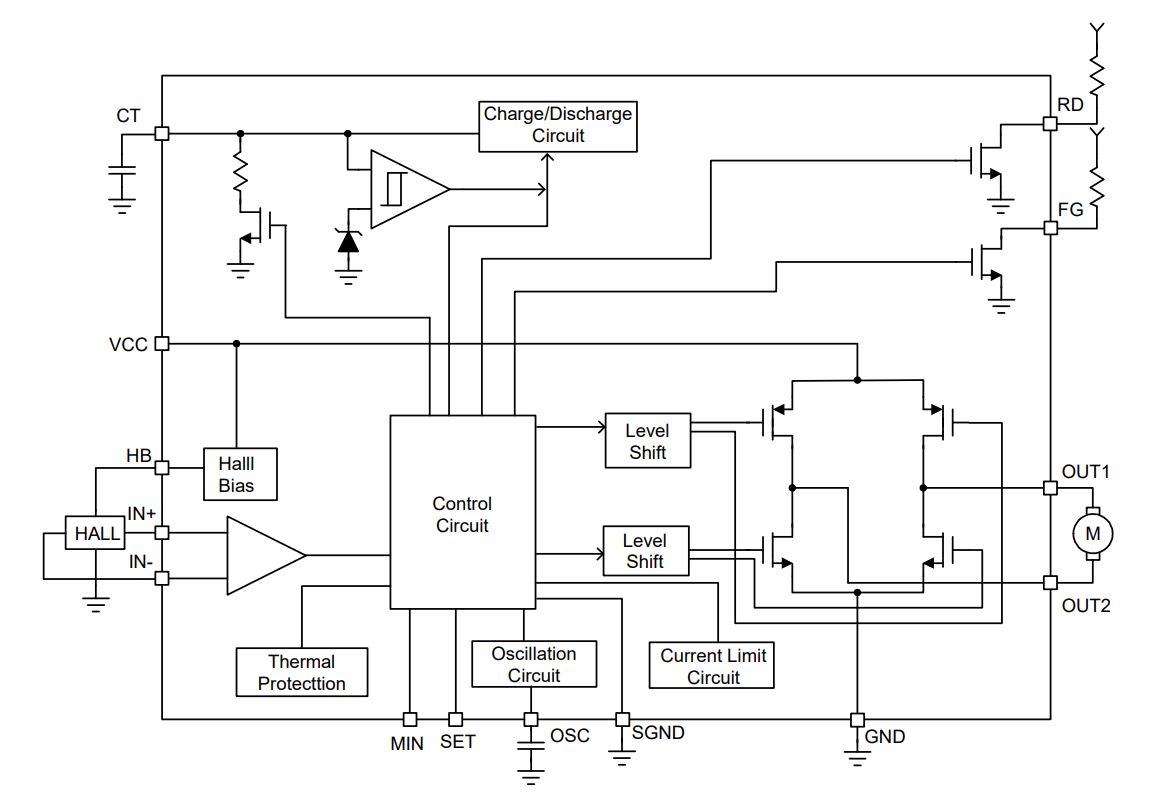

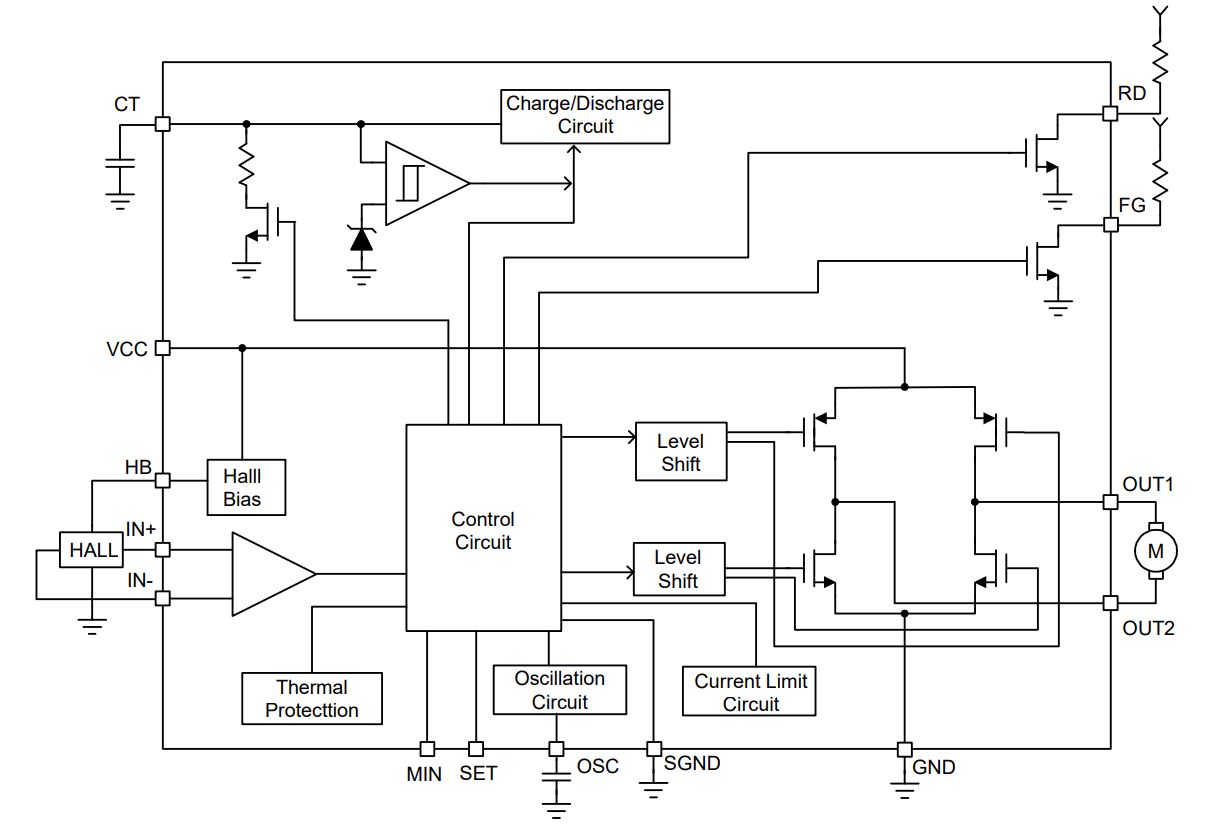

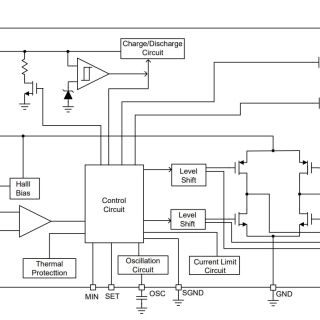

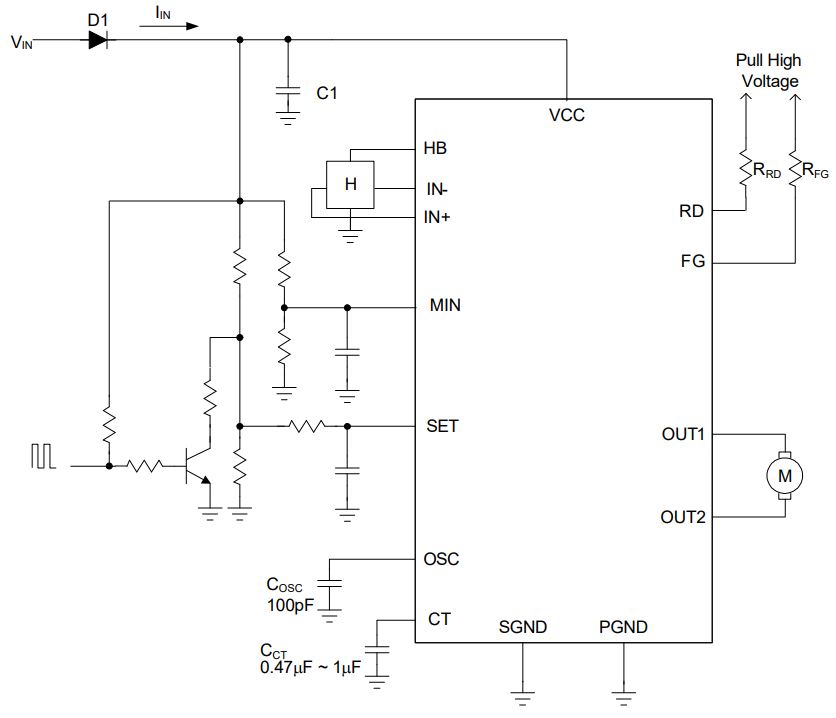

APX6861
Active
Direct PWM Variable Speed Fan Motor Driver
Features
General Description
The APX6861 is a high efficient direct PWM drive IC with single phase and CMOS drive. Such IC design is suitable for variable speed control FAN of personal computer’s power supply radiation and CPU cooler. The device is built-in lock protection. When fan is locked, the device will enter the lockup protection mode. It is also with rotation detection output and thermal shutdown function. In normal operation, supply current is 3mA. The APX6861 is available in TSSOP-16 package.
Features
- Single Phase Full Wave Fan Driver
- Low Supply Current
- Built-In Variable Speed Function
- Include Hall Bias Circuit
- Built-In Lock Protection and Auto Restart Function
- FG Output and RD Output Signal available
- Built-In Current Limit Circuit
- Built-In Thermal Protection Circuit
- TSSOP-16 Package
- Lead Free and Green Devices Available (RoHS Compliant)
General Description
The APX6861 is a high efficient direct PWM drive IC with single phase and CMOS drive. Such IC design is suitable for variable speed control FAN of personal computer’s power supply radiation and CPU cooler. The device is built-in lock protection. When fan is locked, the device will enter the lockup protection mode. It is also with rotation detection output and thermal shutdown function. In normal operation, supply current is 3mA. The APX6861 is available in TSSOP-16 package.

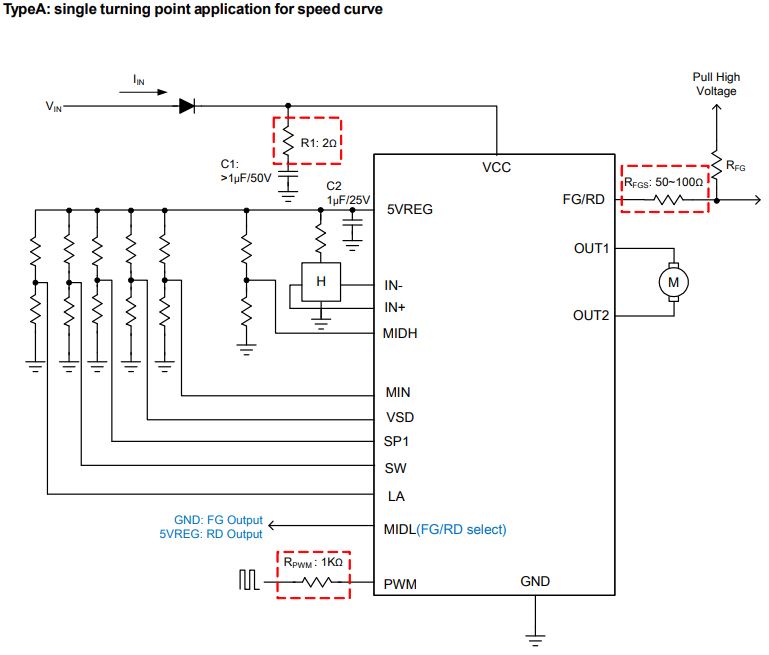

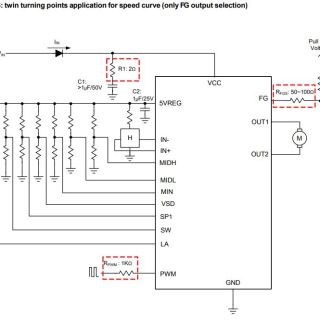

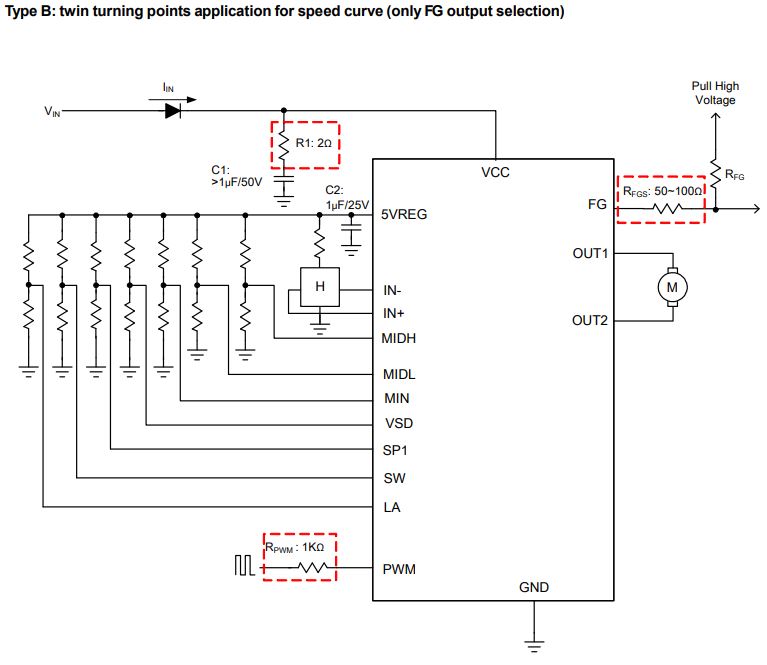

APX9201
Active
Single-Phase Full-Wave Motor Driver for Fan Motor
Features
General Description
The APX9201 is a single-phase full-wave motor driver for DC fan motors. It’s suitable for variable speed curve applications, and then It is suitable for cooler DC fan that needs silent drivers. When PWM is at low level in a short time, the supply current is less than 500µA. In normal operation, the supply current is less than 8mA. The APX9201 is available in TSSOP-16P package.
Features
- Single Phase Full Wave Fan Driver
- Built-in Variable Speed Curve Function. It can compensate motors whose Speed curve is not linear.
- Current Limit Circuit
- Built-in LOCK Protection and Auto Restart Function
- Built-in Adjustable Lead Angle Function
- Built-in Adjustable PWM Soft Switching Function
- Low Standby Current
- FG (Rotation Speed Detection) or RD (Rotation Detection) Output
- Built-in Thermal Protection Circuit
- Lead Free and Green Device Available (RoHS Compliant)
General Description
The APX9201 is a single-phase full-wave motor driver for DC fan motors. It’s suitable for variable speed curve applications, and then It is suitable for cooler DC fan that needs silent drivers. When PWM is at low level in a short time, the supply current is less than 500µA. In normal operation, the supply current is less than 8mA. The APX9201 is available in TSSOP-16P package.

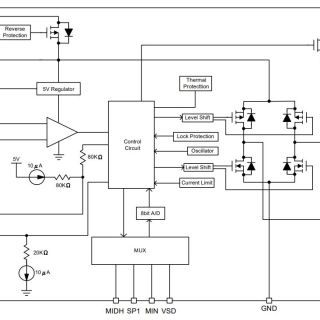

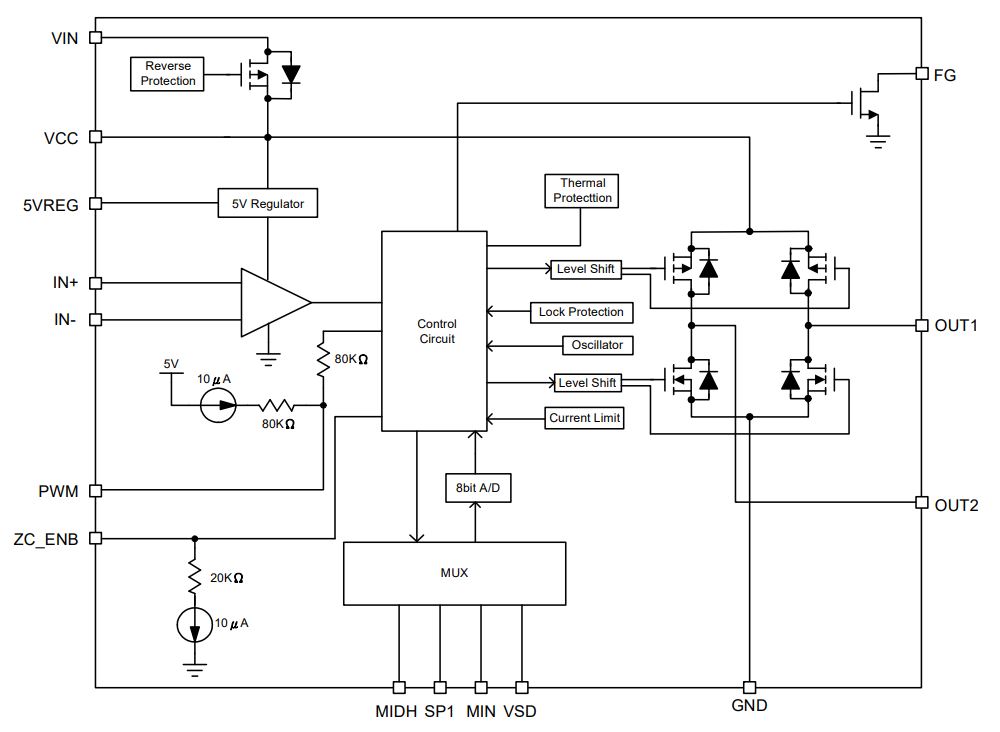

APX9202
Active
Single-Phase Full-Wave Motor Driver for Fan Motor
Features
General Description
The APX9202 is a single-phase full-wave motor driver for DC fan motors. It’s suitable for variable speed curve applications, and then It is suitable for cooler DC fan that needs silent drivers. When PWM is at low level in a short time, the supply current is less than 30µA. In normal operation, the supply current is less than 8mA. The APX9202 is available in SSOP-16 and TSSOP-16 Packages.
Features
- Single Phase Full Wave Fan Driver
- Built-in Reverse Voltage Protection Circuit
- Built-in Variable Speed Curve Function. It can compensate motors whose Speed curve is not linear.
- Current Limit Circuit
- Built-in LOCK Protection and Auto-restart Function
- Fixed PWM Soft Switching Function
- Low Standby Current
- FG (Rotation Speed Detection) Output
- Built-in Thermal Protection Circuit
- HBM/MM ESD level sustain up to 4KV/400V
- SSOP-16 and TSSOP-16 Packages
- Lead Free and Green Device Available (RoHS Compliant)
General Description
The APX9202 is a single-phase full-wave motor driver for DC fan motors. It’s suitable for variable speed curve applications, and then It is suitable for cooler DC fan that needs silent drivers. When PWM is at low level in a short time, the supply current is less than 30µA. In normal operation, the supply current is less than 8mA. The APX9202 is available in SSOP-16 and TSSOP-16 Packages.

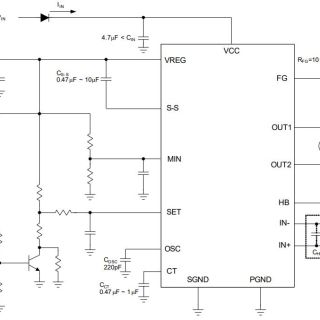

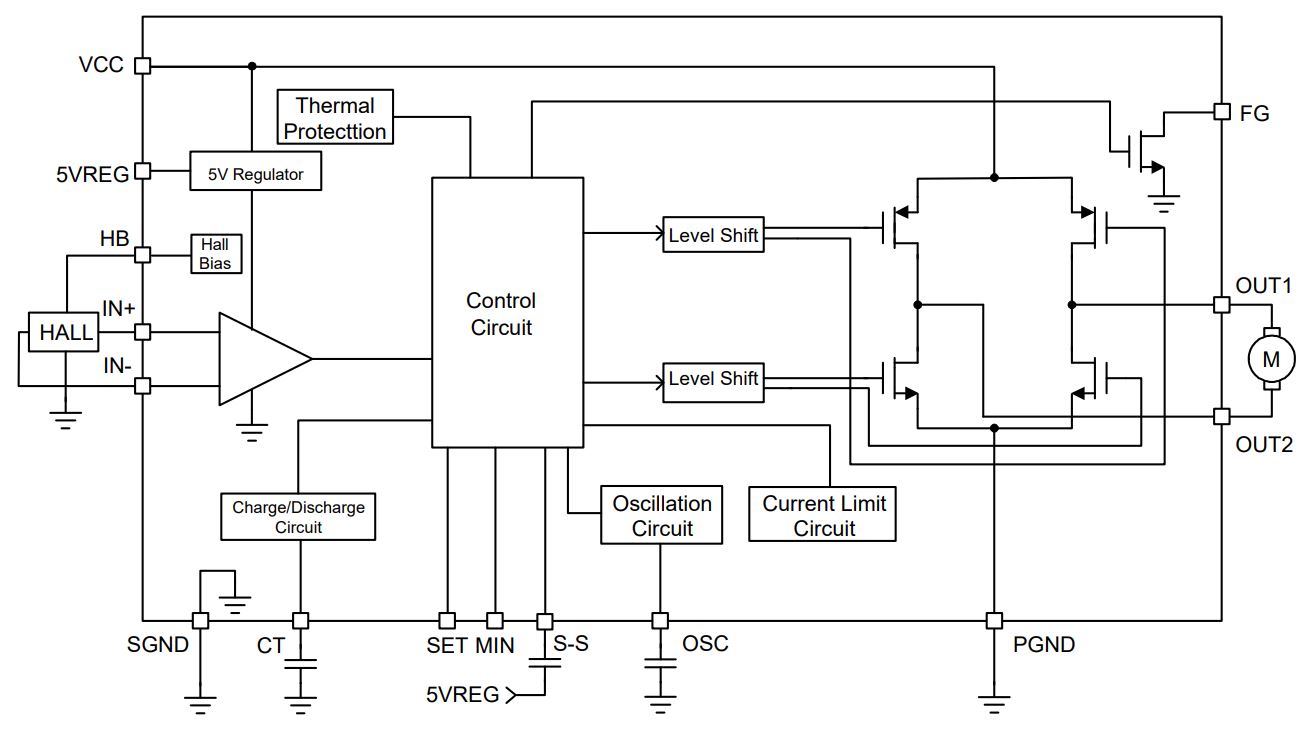

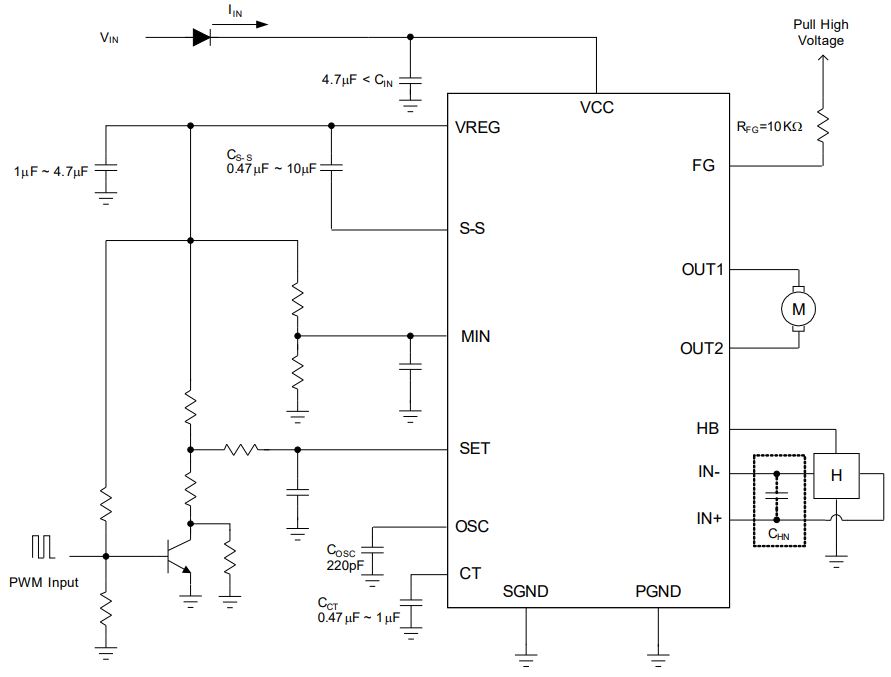

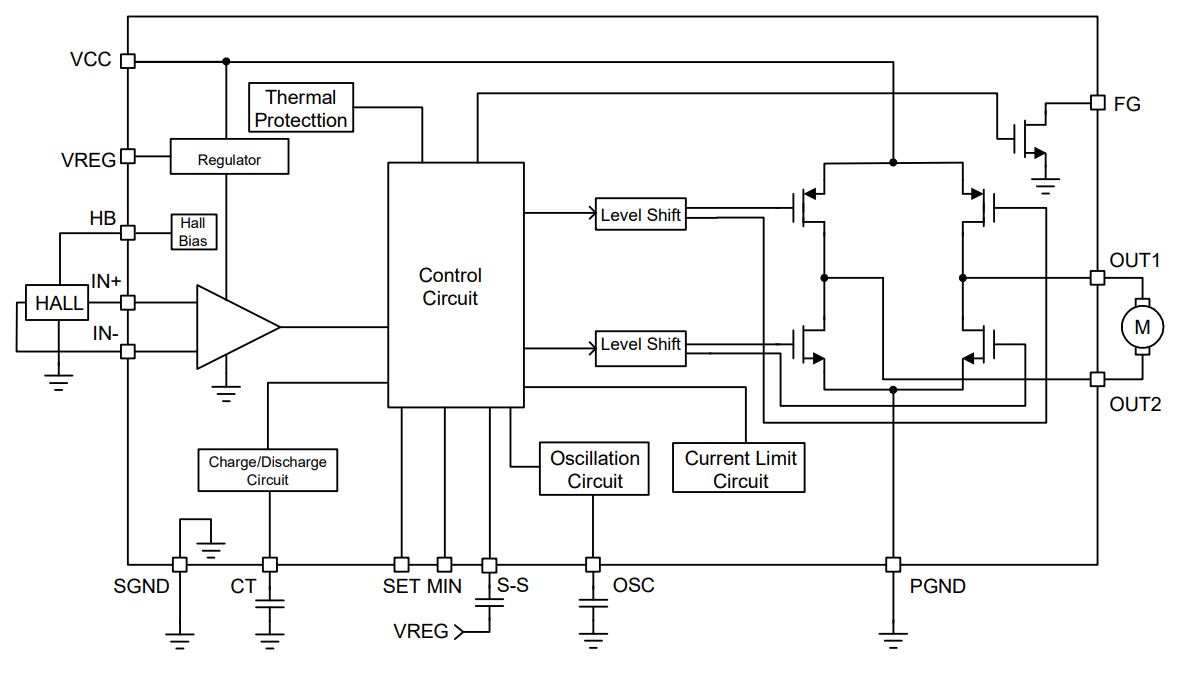

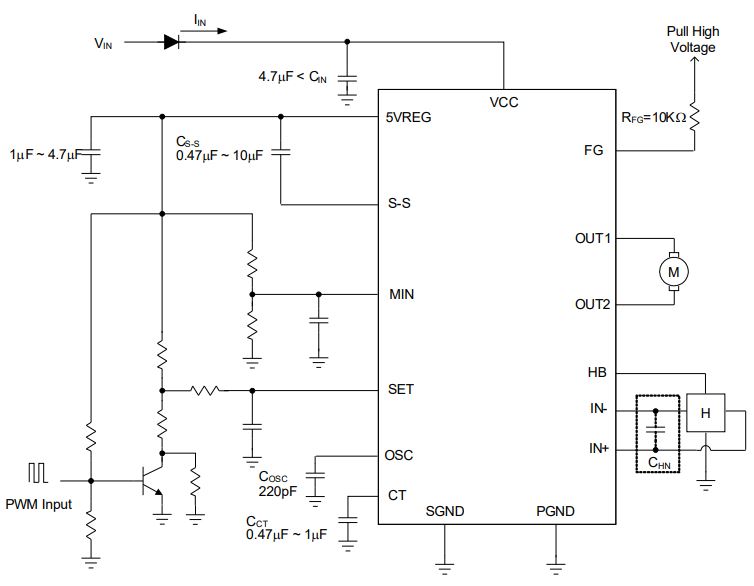

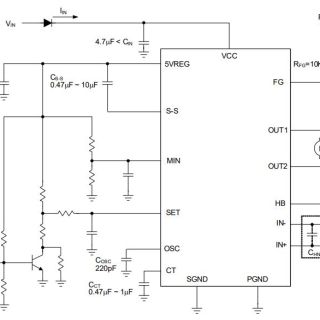

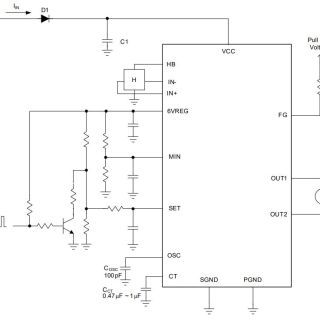

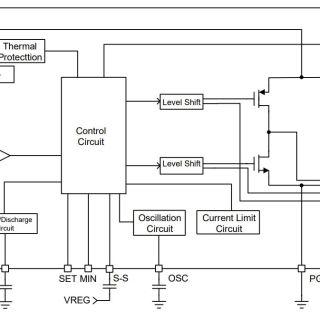

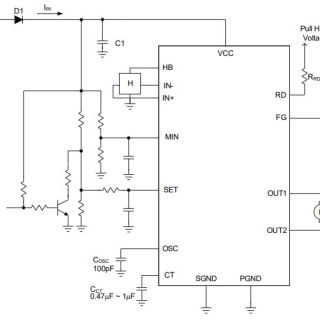

APX9211
Active
Single-Phase Full-Wave Motor Driver for Fan Motor
Features
General Description
The APX9211 is a single phase full wave DC brushless motor driver with PWM variable speed control, current limit, and soft-start features suitable for the fan of personal computer’s power supply, CPU cooler and server. Adequate S-S pin capacitor could reduce the peak current at power on and lock mode. The PWM control system works depending on the comparison among the voltage of SET, MIN, and OSC. The device is equipped with a built-in lock protection, which protects the fan when it is locked. It also has rotation speed detection output and thermal protection function. The APX9211 is available in SSOP-16 and TSSOP-16P packages (see Pin Configuration).
Features
- Single Phase Full Wave Fan Driver
- Low Quiescent Current (6mA Typical)
- Built-in Variable Speed Function
- Minimum Speed Setting
- Built-In Current Limit Circuit (1.8A Typical)
- Built-In Lock Protection and Auto Restart Function
- Soft-Start Function
- FG (Rotation Speed Detection)
- Built-In Thermal Protection Circuit
- Lead Free and Green Devices Available (RoHS Compliant)
General Description
The APX9211 is a single phase full wave DC brushless motor driver with PWM variable speed control, current limit, and soft-start features suitable for the fan of personal computer’s power supply, CPU cooler and server. Adequate S-S pin capacitor could reduce the peak current at power on and lock mode. The PWM control system works depending on the comparison among the voltage of SET, MIN, and OSC. The device is equipped with a built-in lock protection, which protects the fan when it is locked. It also has rotation speed detection output and thermal protection function. The APX9211 is available in SSOP-16 and TSSOP-16P packages (see Pin Configuration).

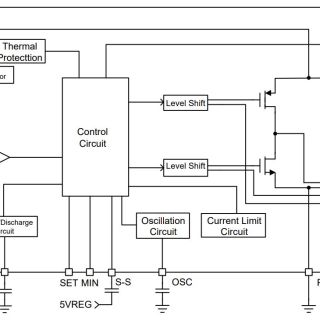

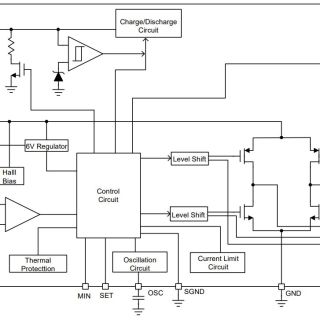

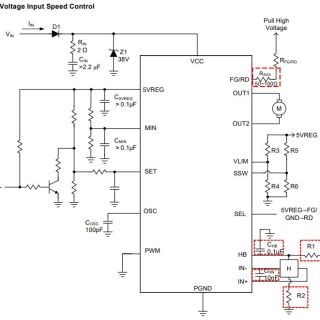

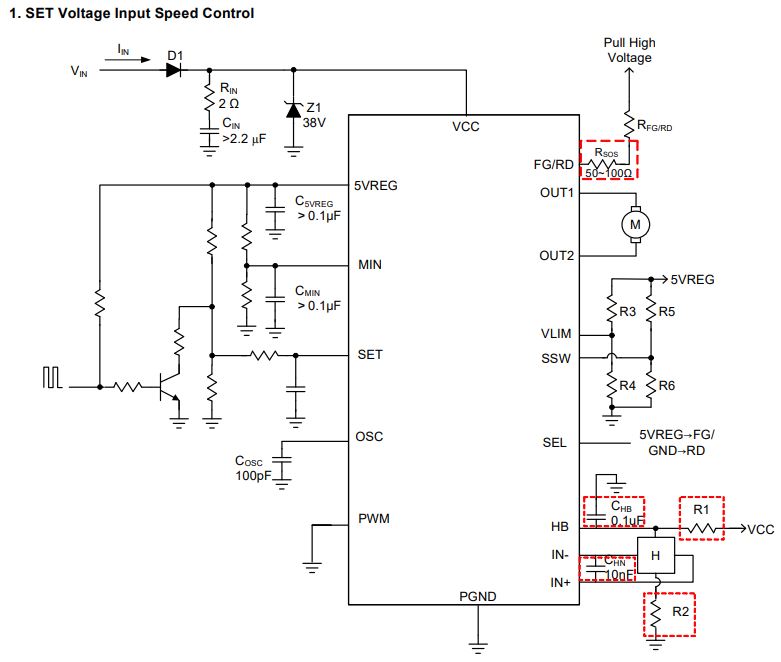

APX9216
Active
Single-Phase Full-Wave Motor Driver for Fan Motor
Features
General Description
The APX9216 is a single phase full wave DC brushless motor driver with PWM variable speed control, current limit, and soft-start features suitable for the fan of personal computer’s power supply, CPU cooler and server. Adequate S-S pin capacitor could reduce the peak current at power on and lock mode. The PWM control system works depending on the comparison among the voltage of SET, MIN, and OSC. The device is equipped with a built-in lock protection, which protects the fan when it is locked. It also has rotation speed detection output and thermal protection function. The APX9216 is available in QFN5x5-16 and TSSOP-16P packages (see Pin Configuration).
Features
- Single Phase Full Wave Fan Driver
- Low Quiescent Current (4mA Typical)
- Built-in Variable Speed Function
- Minimum Speed Setting
- Built-In Current Limit Circuit (3A Typical)
- Built-In Lock Protection and Auto Restart Function
- Soft-Start Function
- FG (Rotation Speed Detection)
- Built-In Thermal Protection Circuit
- Lead Free and Green Devices Available (RoHS Compliant)
General Description
The APX9216 is a single phase full wave DC brushless motor driver with PWM variable speed control, current limit, and soft-start features suitable for the fan of personal computer’s power supply, CPU cooler and server. Adequate S-S pin capacitor could reduce the peak current at power on and lock mode. The PWM control system works depending on the comparison among the voltage of SET, MIN, and OSC. The device is equipped with a built-in lock protection, which protects the fan when it is locked. It also has rotation speed detection output and thermal protection function. The APX9216 is available in QFN5x5-16 and TSSOP-16P packages (see Pin Configuration).
APX9221
Active
24V Single-Phase Full-Wave Motor Driver for Fan Motor
Features
General Description
The APX9221 is a single-phase full wave motor driver for DC fan motors. The output switch signals of this IC are PWM controlled. It is suitable for both game machine and CPU cooler that need silent fans. The device is built-in lock protection, when fan is locked, the device will enter the lockup protection mode. It is also with thermal shutdown function. In normal operation, the supply current is 3.5mA. The APX9221 is available in TSSOP-16P package.
Features
- Single-Phase Full Wave Fan Driver
- Low Supply Current
- Speed Controllable by DC Voltage or PWM Input Signal
- Built-in Quick Start Function
- Built-in Lock Protection and Auto-restart Function
- Enhance Low Duty Start UP Power
- FG/RDOutput
- Include Hall Bias Circuit
- Built-in Current Limit Circuit
- Built-in Thermal Protection Circuit
- TSSOP-16P Package
- Lead Free and Green Device Available (RoHS Compliant)
General Description
The APX9221 is a single-phase full wave motor driver for DC fan motors. The output switch signals of this IC are PWM controlled. It is suitable for both game machine and CPU cooler that need silent fans. The device is built-in lock protection, when fan is locked, the device will enter the lockup protection mode. It is also with thermal shutdown function. In normal operation, the supply current is 3.5mA. The APX9221 is available in TSSOP-16P package.

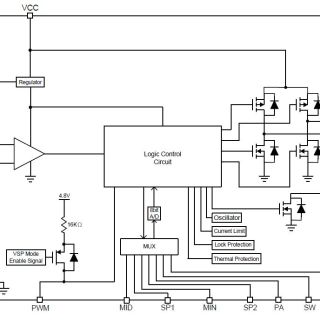

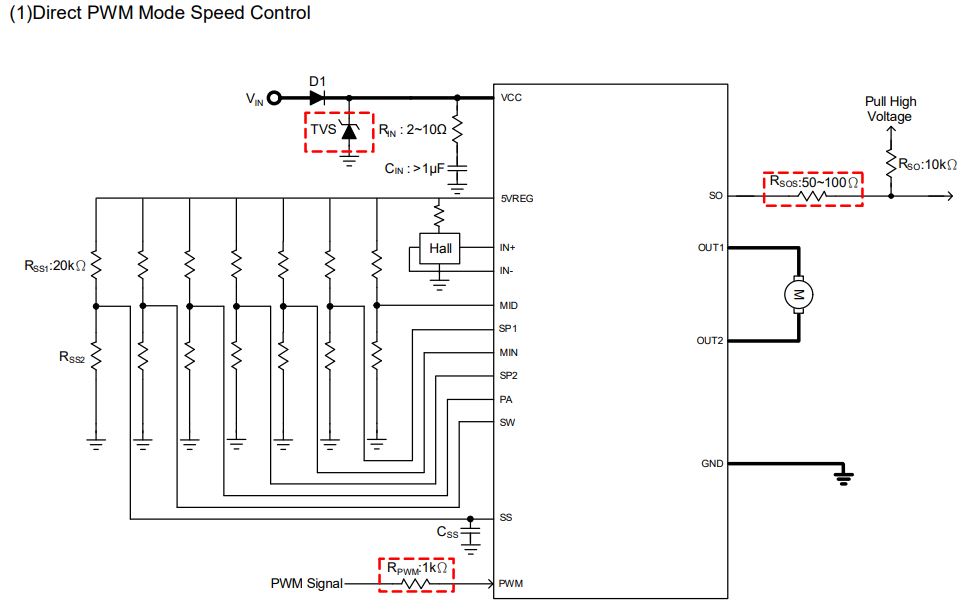

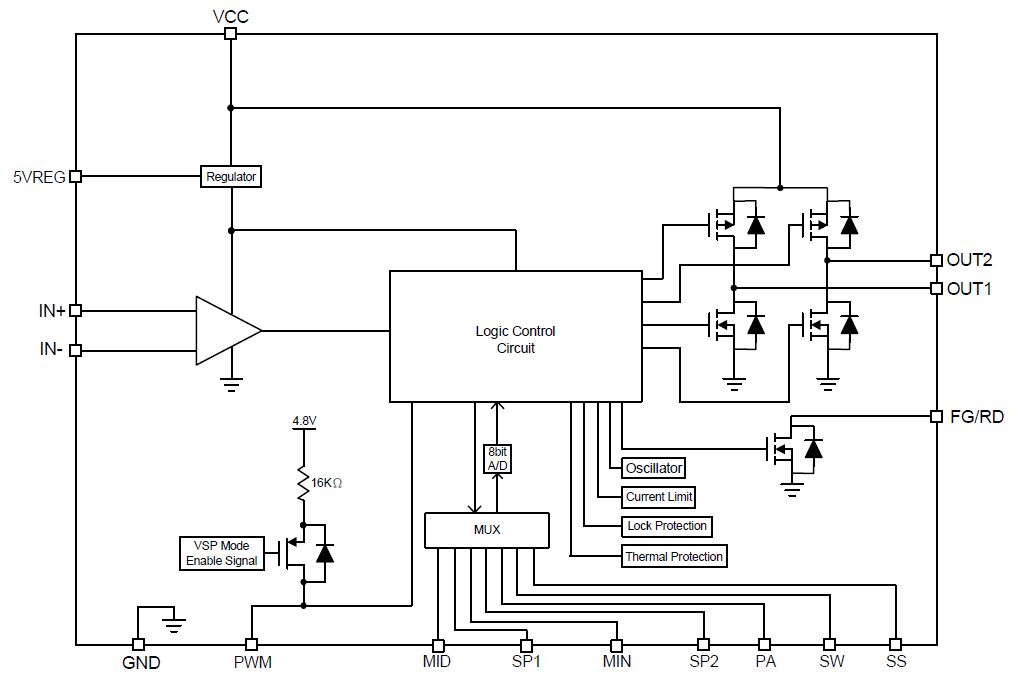

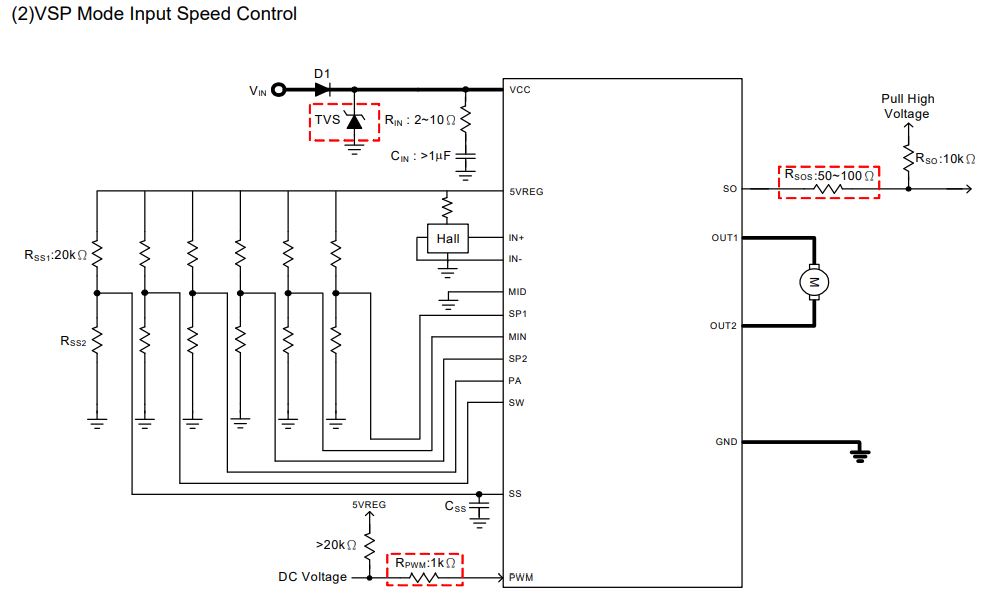

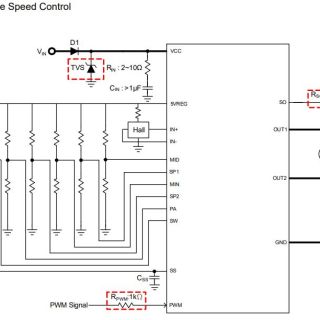

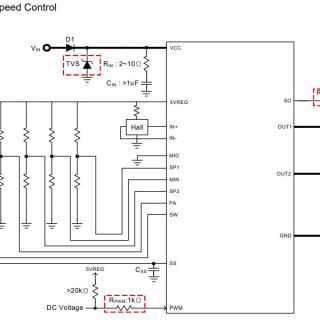

APX9222
Active
Single-Phase Full-Wave Motor Driver
Features
General Description
The APX9222 is a single-phase full-wave motor driver for DC fan motors. It’s suitable for variable speed curve applications, and then It is suitable for cooler DC fan that needs silent drivers. In normal operation, the supply current is less than 9mA. The APX9222 is available in TSSOP-16P package.
Features
- Built-in Soft Start Function
- Built-in Adjustable PWM Soft Switching Function
- Built-in Variable Speed Curve Function
- Built-in Adjustable Phase Angle Function
- Built-in Current Limit Circuit
- Built-in Over Voltage Protection (OVP) Function
- Built-in Lock Protection and Auto Restart Function
- Built-In Quick Start Function
- FG/ 1/2FG / RD (Rotation Speed Detection) Output
- Built-in Thermal Protection Circuit
- MID, SP1, MIN, SP2, PA and SW are Multi Function
- Lead Free and Green Devices Available (RoHS Compliant)
General Description
The APX9222 is a single-phase full-wave motor driver for DC fan motors. It’s suitable for variable speed curve applications, and then It is suitable for cooler DC fan that needs silent drivers. In normal operation, the supply current is less than 9mA. The APX9222 is available in TSSOP-16P package.

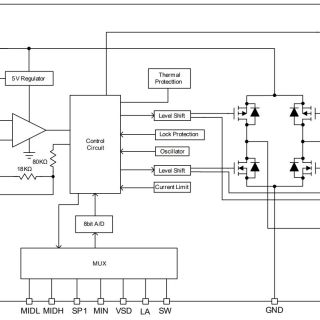

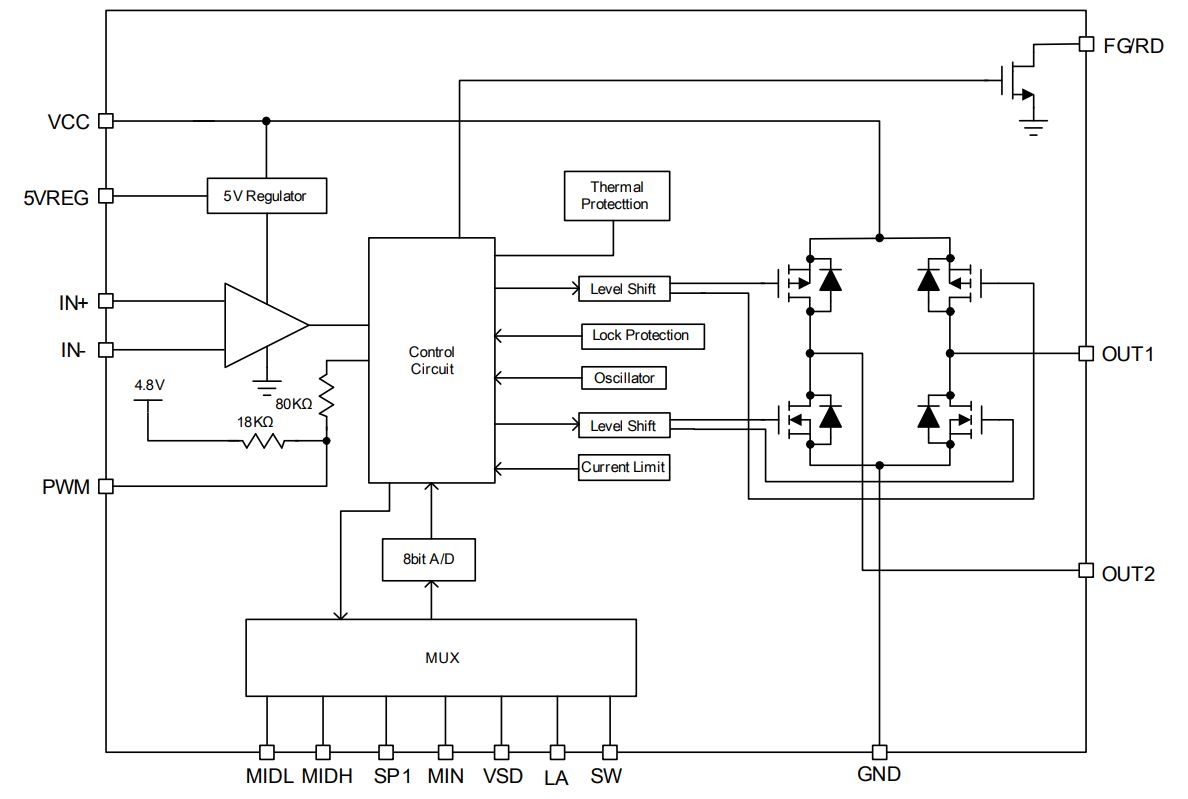

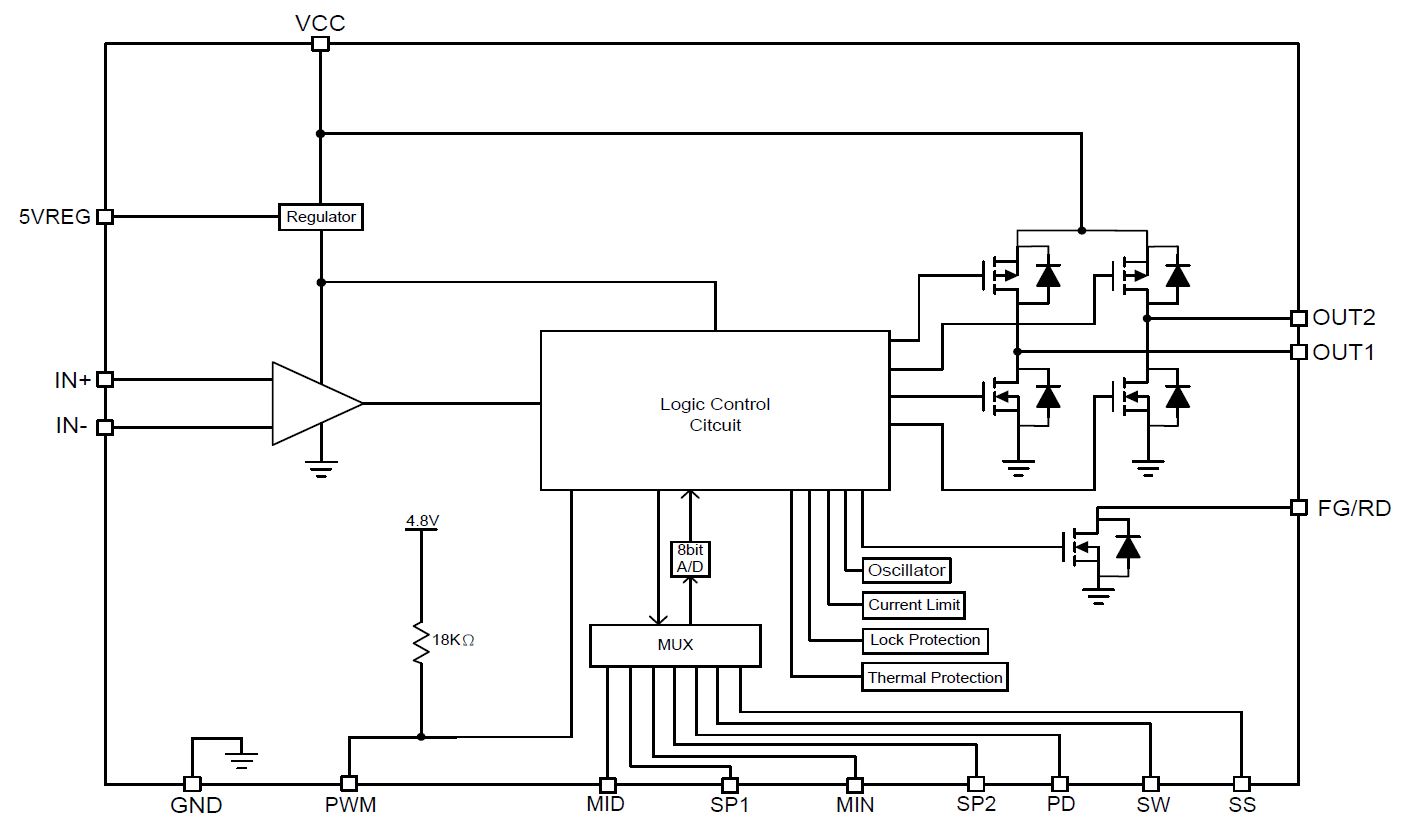

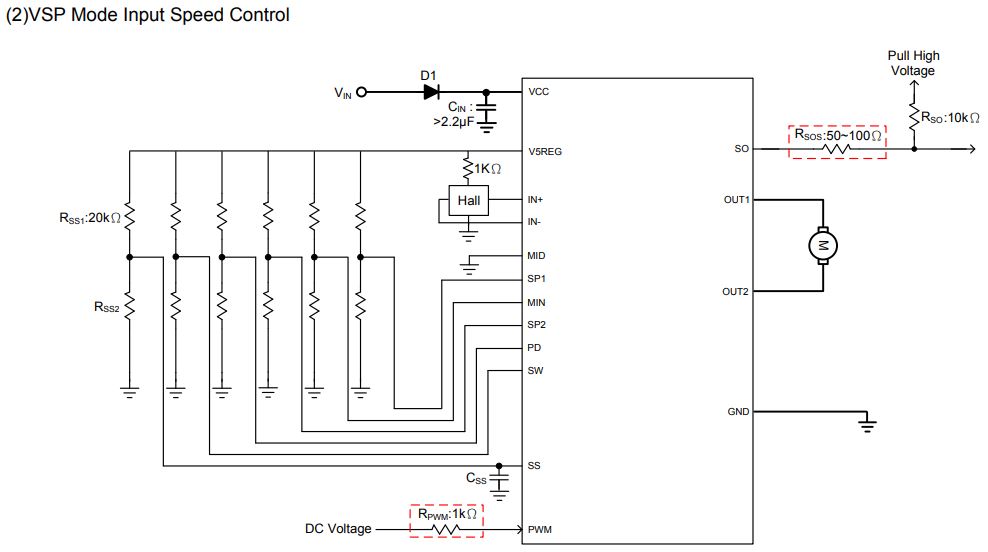

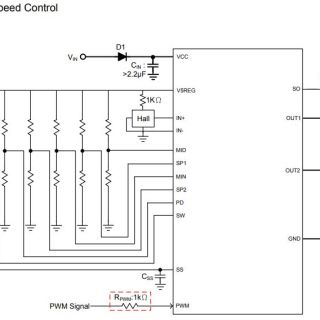

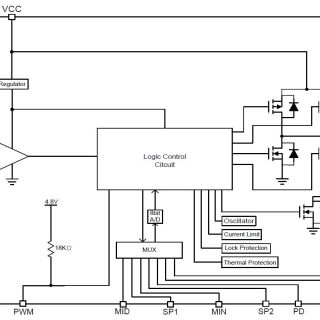

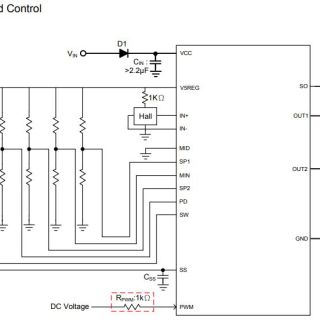

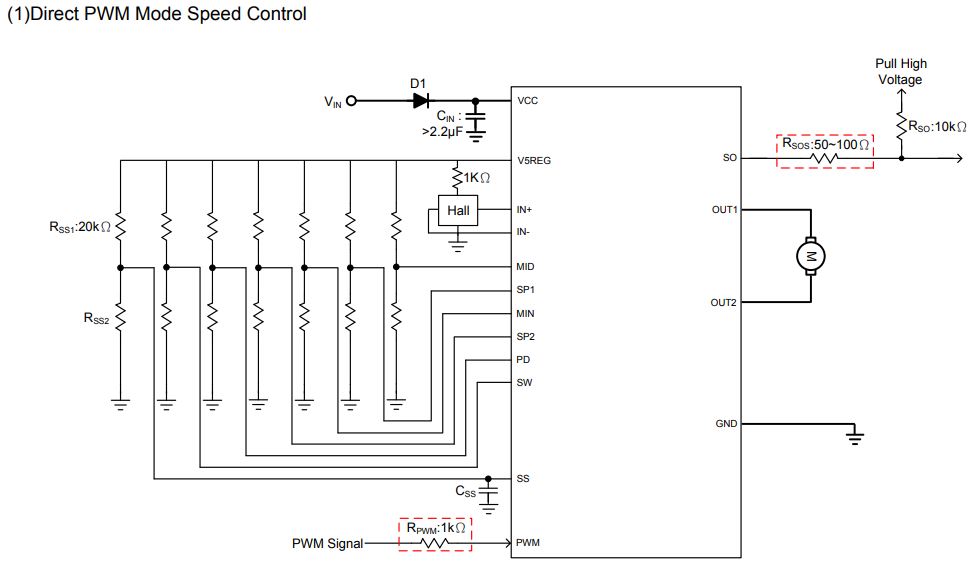

APX9230
Active
Single-Phase Full-Wave Motor Driver
Features
General Description
The APX9230 is a single-phase full-wave motor driver for DC fan motors. It’s suitable for variable speed curve applications, and then It is suitable for cooler DC fan that needs silent drivers. In normal operation, the supply current is less than 9mA. The APX9230 is available in TSSOP-16P package.
Features
- Built-in Soft Start Function
- Built-in Adjustable PWM Soft Switching Function
- Built-in Variable Speed Curve Function
- Built-in Leading Angle and Phase Delay Function
- Built-in Current Limit Circuit
- Built-in Lock Protection and Auto Restart Function
- Built-In Quick Start Function
- FG / 1/2FG / RD (Rotation Speed Detection) Output
- Built-in Thermal Protection Circuit
- MID, SP1, MIN, SP2, PD and SW are Multi Function
- Lead Free and Green Devices Available (RoHS Compliant)
General Description
The APX9230 is a single-phase full-wave motor driver for DC fan motors. It’s suitable for variable speed curve applications, and then It is suitable for cooler DC fan that needs silent drivers. In normal operation, the supply current is less than 9mA. The APX9230 is available in TSSOP-16P package.

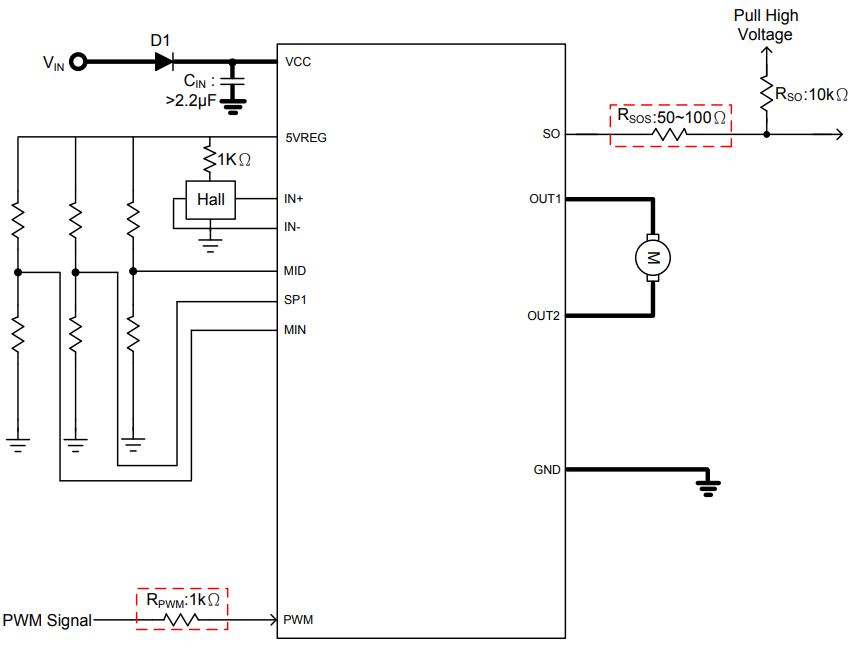

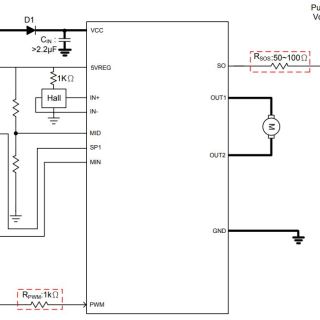

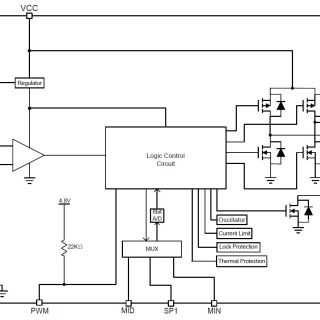

APX9232
Active
Single-Phase Full-Wave Motor Driver
Features
General Description
The APX9232 is a single-phase full-wave motor driver for DC fan motors. It’s suitable for variable speed curve applications, and then It is suitable for cooler DC fan that needs silent drivers. In normal operation, the supply current is less than 9mA. The APX9232 is available in TSSOP-16P package.
Features
- Built-in Soft Start Function
- Built-in PWM Soft Switching Function
- Built-in Variable Speed Curve Function
- Built-in Current Limit Circuit
- Built-in Lock Protection and Auto Restart Function
- Built-In Quick Start Function
- FG/ 1/2FG/ RD (Rotation Speed Detection) Output
- Built-in Thermal Protection Circuit
- MID, SP1 and MIN are Multi Function
- Lead Free and Green Devices Available (RoHS Compliant)
General Description
The APX9232 is a single-phase full-wave motor driver for DC fan motors. It’s suitable for variable speed curve applications, and then It is suitable for cooler DC fan that needs silent drivers. In normal operation, the supply current is less than 9mA. The APX9232 is available in TSSOP-16P package.
APX9262P
Active
Direct PWM Variable Speed Fan Motor Driver
Features
General Description
The APX9262P is a high efficient direct PWM drive IC with single phase and CMOS drive. Such IC design is suitable for variable speed control FAN of personal computer’s power supply radiation and CPU cooler. The device is built-in lock protection. When fan is locked, the device will enter the lockup protection mode. It is also with rotation detection output and thermal shutdown function. In normal operation, supply current is 3mA. The APX9262P is available in SSOP-16 package.
Features
- Single Phase Full Wave Fan Driver
- Low Supply Current
- Built-In Variable Speed Function
- Include Hall Bias Circuit
- Built-In Lock Protection and Auto Restart Function
- FG Output and RD Output Signal available
- Built-In Current Limit Circuit
- Built-In Thermal Protection Circuit
- FG pin HBM/MM ESD can sustain up to 4kV/400V
- SSOP-16 Package
- Lead Free and Green Devices Available (RoHS Compliant)
General Description
The APX9262P is a high efficient direct PWM drive IC with single phase and CMOS drive. Such IC design is suitable for variable speed control FAN of personal computer’s power supply radiation and CPU cooler. The device is built-in lock protection. When fan is locked, the device will enter the lockup protection mode. It is also with rotation detection output and thermal shutdown function. In normal operation, supply current is 3mA. The APX9262P is available in SSOP-16 package.

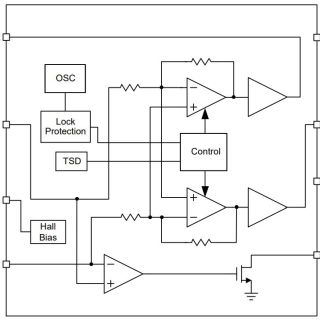

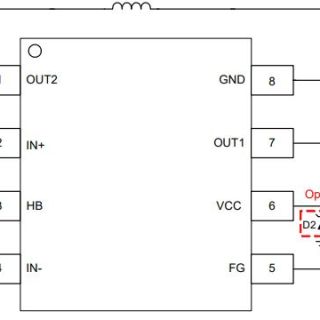

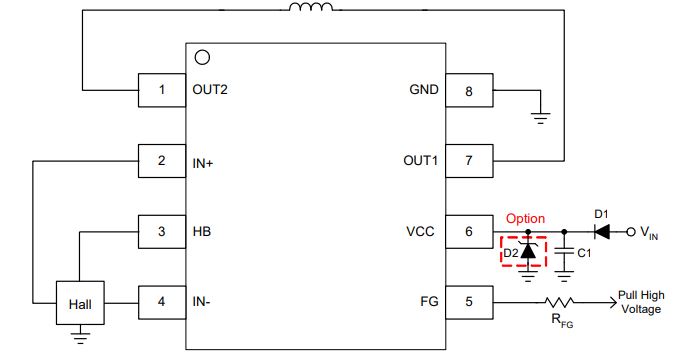

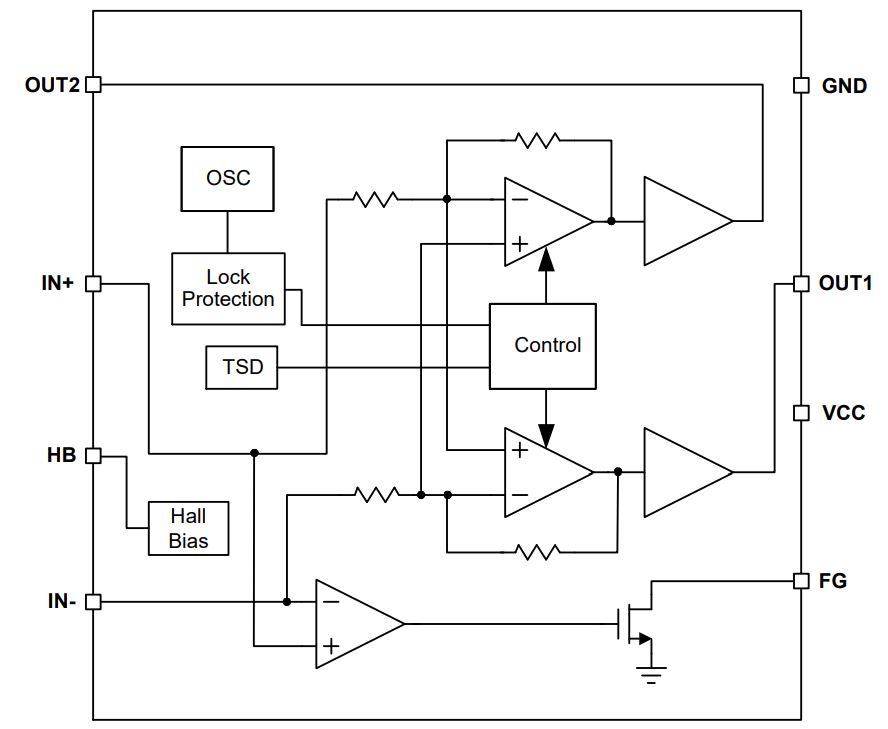

APX9268A
Active
Single-Phase Full-Wave Motor Driver for Silent Fan Motor
Features
General Description
The APX9268A is a single phase full wave motor driver for DC fan motor. The output signal of this IC is the amplified hall input signal. It is suitable for both game machine and CPU cooler that need silent drivers. The device is built-in lock protection. When fan is locked, the device will enter the lockup protection mode. It is also with thermal shutdown function. In normal operation, the supply current is less than 5mA. TheAPX9268A is available in MSOP8 package.
Features
- Single Phase Full Wave Fan Driver
- Silent Driver (45dB Gian for Low Noise)
- Low Supply Current
- Built-In Lock Protection and Auto Restart Function (External Capacitor Unnecessary)
- FG Output
- Include Hall Bias Circuit
- Built-In Thermal Protection Circuit
- Lead Free and Green Devices Available (RoHS Compliant)
- Design Reference for AEC-Q100 Grade3 Compliant
General Description
The APX9268A is a single phase full wave motor driver for DC fan motor. The output signal of this IC is the amplified hall input signal. It is suitable for both game machine and CPU cooler that need silent drivers. The device is built-in lock protection. When fan is locked, the device will enter the lockup protection mode. It is also with thermal shutdown function. In normal operation, the supply current is less than 5mA. TheAPX9268A is available in MSOP8 package.

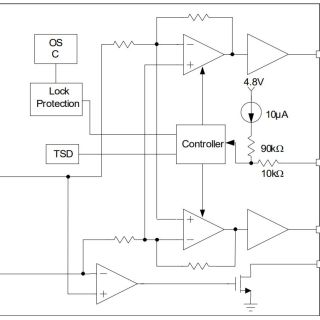

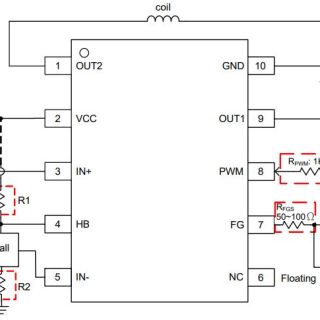

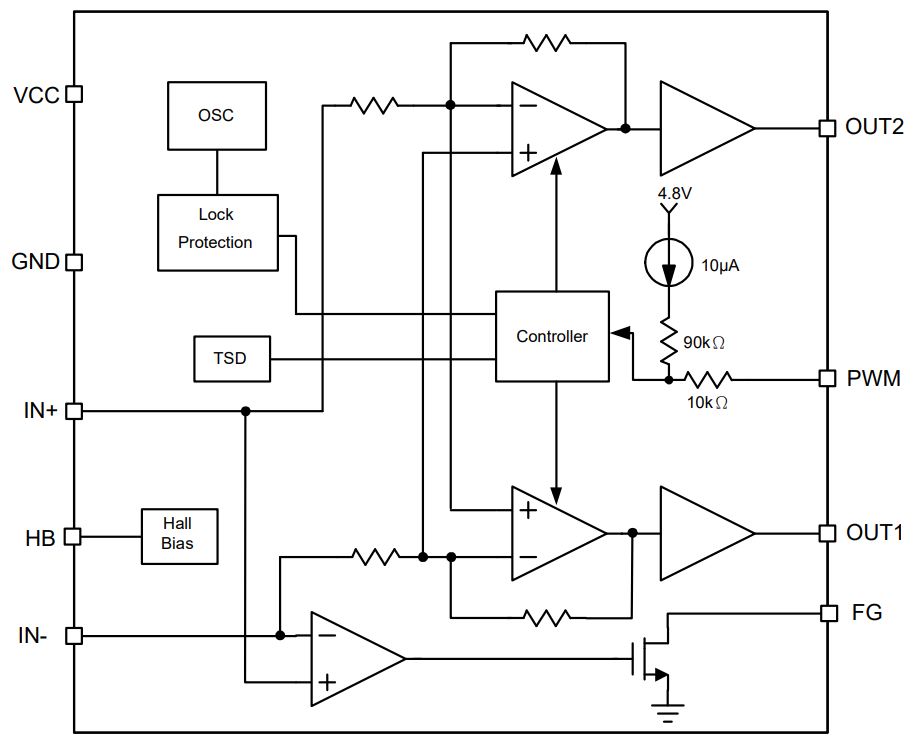

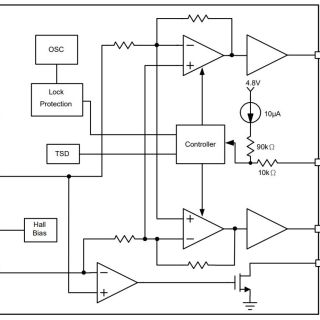

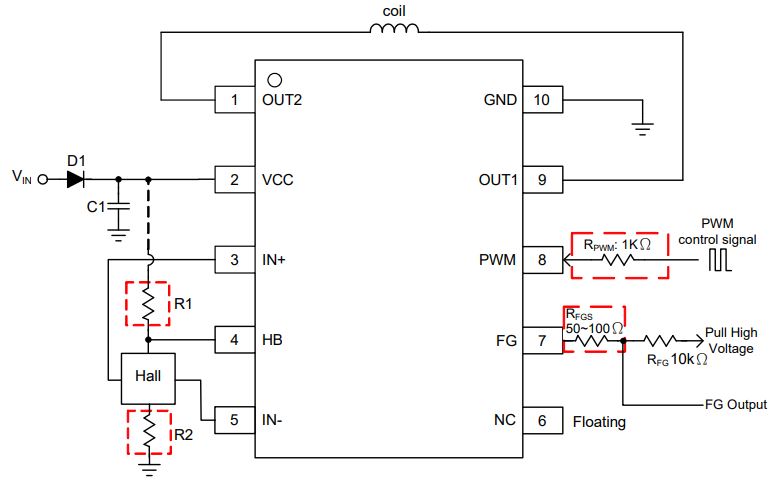

APX9275
Active
Single-Phase Full-Wave Motor Driver for Silent Fan Motor
Features
General Description
The APX9275 is a single phase full wave motor driver for DC fan motors, and can apply to three type speed control methods. The output signals of this IC are the amplifications of hall input signals. It is suitable for both game machine and CPU cooler that need silent fans. The device is built-in lock protection, when fan is locked, the device will enter the lockup protection mode. It is also with thermal shutdown function. In normal operation, the supply current is less than 8mA. The APX9275 is available in MSOP-10 and SOP-10 packages.
Features
- Single-Phase Full Wave Fan Driver
- Silent Driver
- Low Supply Current
- Speed Controllable by PWM Input Signal
- Built-in Quick Srart Function
- Built-in Lock Protection and Auto Restart Function (External Capacitor Unnecessary)
- Enhance Low Duty Start UP Power
- FG Output
- Include Hall Bias Circuit
- Built-in Current Limit Circuit
- Built-in Thermal Protection Circuit
- Lead Free and Green Devices Available (RoHS Compliant)
General Description
The APX9275 is a single phase full wave motor driver for DC fan motors, and can apply to three type speed control methods. The output signals of this IC are the amplifications of hall input signals. It is suitable for both game machine and CPU cooler that need silent fans. The device is built-in lock protection, when fan is locked, the device will enter the lockup protection mode. It is also with thermal shutdown function. In normal operation, the supply current is less than 8mA. The APX9275 is available in MSOP-10 and SOP-10 packages.

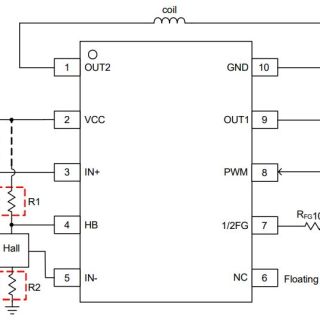

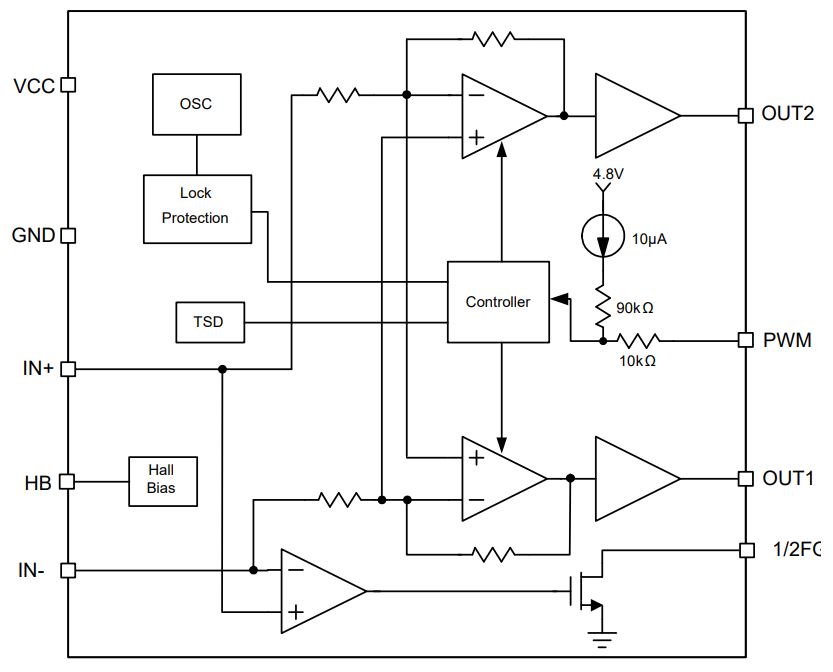

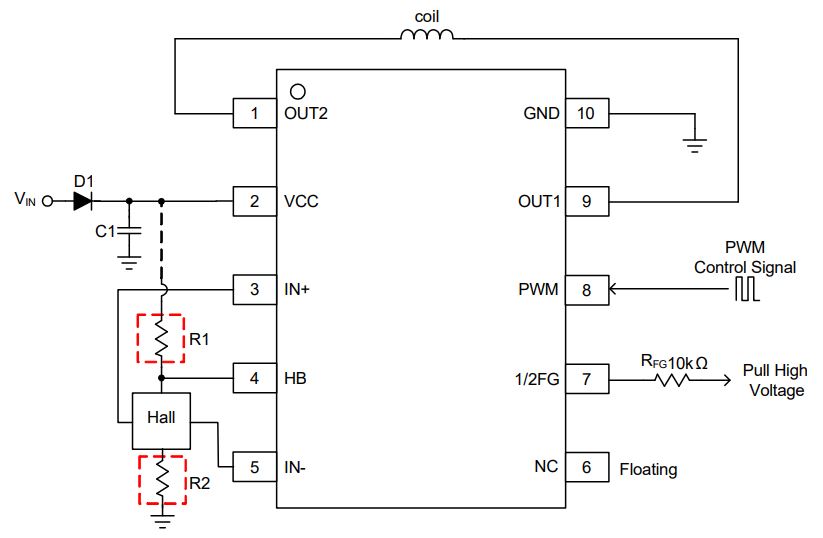

APX9275A
Active
Single-Phase Full-Wave Motor Driver for Silent Fan Motor
Features
General Description
The APX9275A is a single phase full wave motor driver for DC fan motors, and can apply to three type speed control methods. The output signals of this IC are the amplifications of hall input signals. It is suitable for both game machine and CPU cooler that need silent fans. The device is built-in lock protection, when fan is locked, the device will enter the lockup protection mode. It is also with thermal shutdown function. In normal operation, the supply current is less than 8mA. The APX9275A is available in MSOP-10 and SOP-10 packages.
Features
- Single-Phase Full Wave Fan Driver
- Silent Driver
- Low Supply Current
- Speed Controllable by PWM Input Signal
- Built-in Quick Srart Function
- Built-in Lock Protection and Auto Restart Function (External Capacitor Unnecessary)
- Enhance Low Duty Start UP Power
- 1/2 FG Output
- Include Hall Bias Circuit
- Built-in Current Limit Circuit
- Built-in Thermal Protection Circuit
- Lead Free and Green Devices Available (RoHS Compliant)
General Description
The APX9275A is a single phase full wave motor driver for DC fan motors, and can apply to three type speed control methods. The output signals of this IC are the amplifications of hall input signals. It is suitable for both game machine and CPU cooler that need silent fans. The device is built-in lock protection, when fan is locked, the device will enter the lockup protection mode. It is also with thermal shutdown function. In normal operation, the supply current is less than 8mA. The APX9275A is available in MSOP-10 and SOP-10 packages.

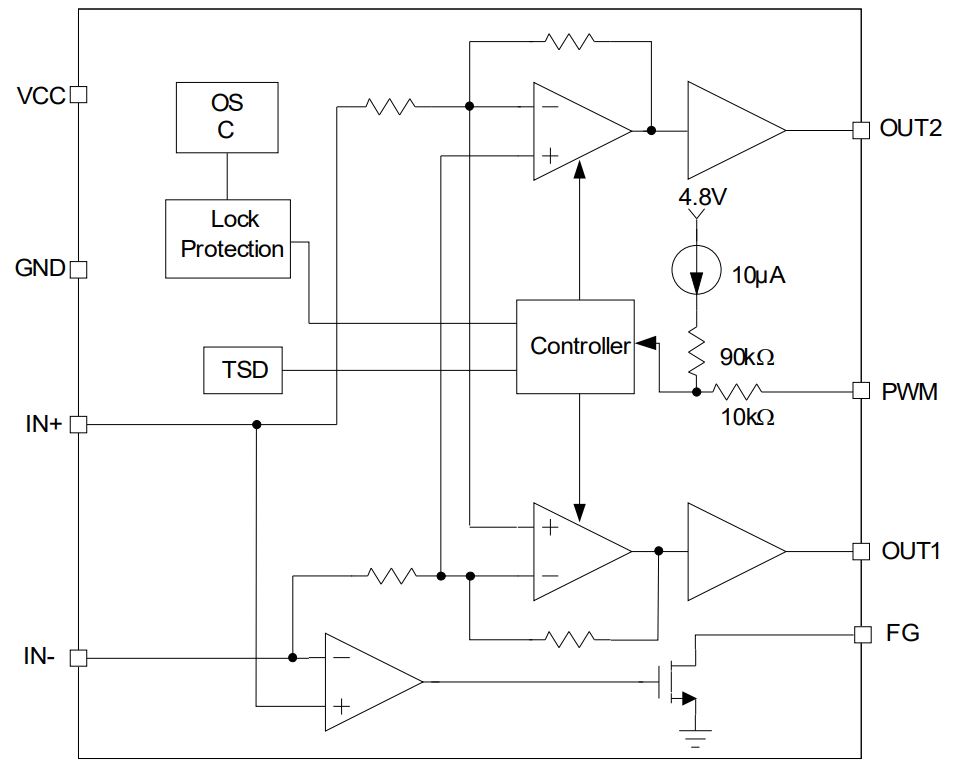

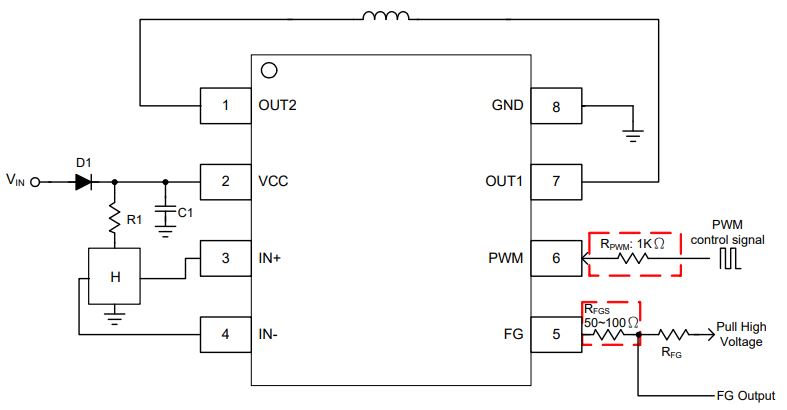

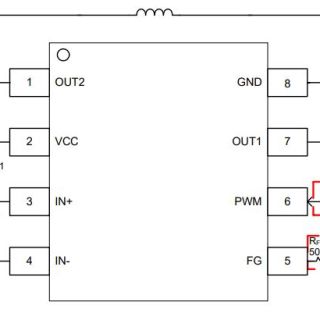

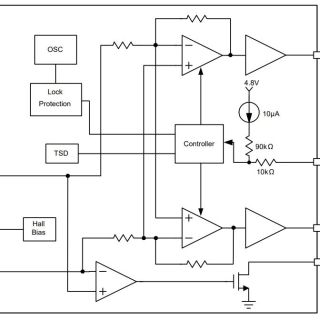

APX9277
Active
Single-Phase Full-Wave Motor Driver for Silent Fan Motor
Features
General Description
The APX9277 is a single-phase full wave motor driver for DC fan motors, and speed controlled by PWM input signal. The output signals of this IC are the amplifications of hall input signals. It is suitable for cooler DC fan that needs silent drivers. The device has a built-in lock protection function. When the fan is locked, the device will enter the lockup protection mode. It also has the thermal shutdown protection function. In normal operation, supply current is less than 5mA, but in standby mode (PWM=Low), it is just around 3mA. Moreover, this feature will shut down the amplifiers and FG. The APX9277 is available in MSOP-8 package.
Features
- Single-Phase Full Wave Fan Driver
- Silent Driver
- Low Supply Current
- Speed Controllable by PWM Input Signal
- Built-in Quick Start Function
- Lock Protection and Auto Restart Function
- Enhance Low Duty Start UP Power
- FG (Rotation Speed Detection) Output
- Built-in Current Limit Circuit
- Built-in Thermal Protection Circuit
- Lead Free and Green Devices Available (RoHS Compliant)
General Description
The APX9277 is a single-phase full wave motor driver for DC fan motors, and speed controlled by PWM input signal. The output signals of this IC are the amplifications of hall input signals. It is suitable for cooler DC fan that needs silent drivers. The device has a built-in lock protection function. When the fan is locked, the device will enter the lockup protection mode. It also has the thermal shutdown protection function. In normal operation, supply current is less than 5mA, but in standby mode (PWM=Low), it is just around 3mA. Moreover, this feature will shut down the amplifiers and FG. The APX9277 is available in MSOP-8 package.

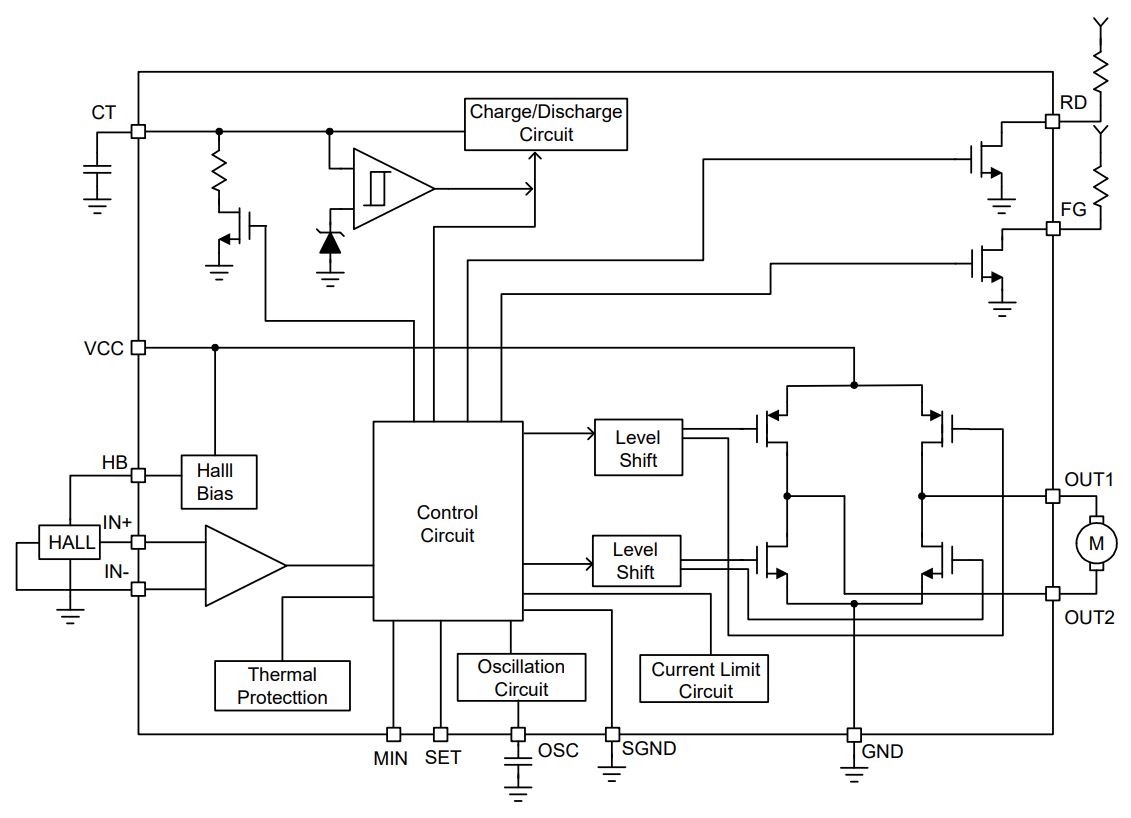

APX9291
Active
Direct PWM Variable Speed Fan Motor Driver
Features
General Description
The APX9291 is a high efficient direct PWM drive IC with single phase and CMOS drive. Such IC design is suitable for variable speed control FAN of personal computer’s power supply radiation and CPU cooler. The device is built-in lock protection. When fan is locked, the device will enter the lockup protection mode. It is also with rotation detection output and thermal shutdown function. In normal operation, supply current is 3mA. The APX9291 is available in SSOP-16 package.
Features
- Single Phase Full Wave Fan Driver
- Low Supply Current
- Built-In Variable Speed Function
- Include Hall Bias Circuit
- Built-In Lock Protection and Auto Restart Function
- FG Output and RD Output Signal available
- Built-In Current Limit Circuit
- Built-In Thermal Protection Circuit
- SSOP-16 Package
- Lead Free and Green Devices Available (RoHS Compliant)
General Description
The APX9291 is a high efficient direct PWM drive IC with single phase and CMOS drive. Such IC design is suitable for variable speed control FAN of personal computer’s power supply radiation and CPU cooler. The device is built-in lock protection. When fan is locked, the device will enter the lockup protection mode. It is also with rotation detection output and thermal shutdown function. In normal operation, supply current is 3mA. The APX9291 is available in SSOP-16 package.

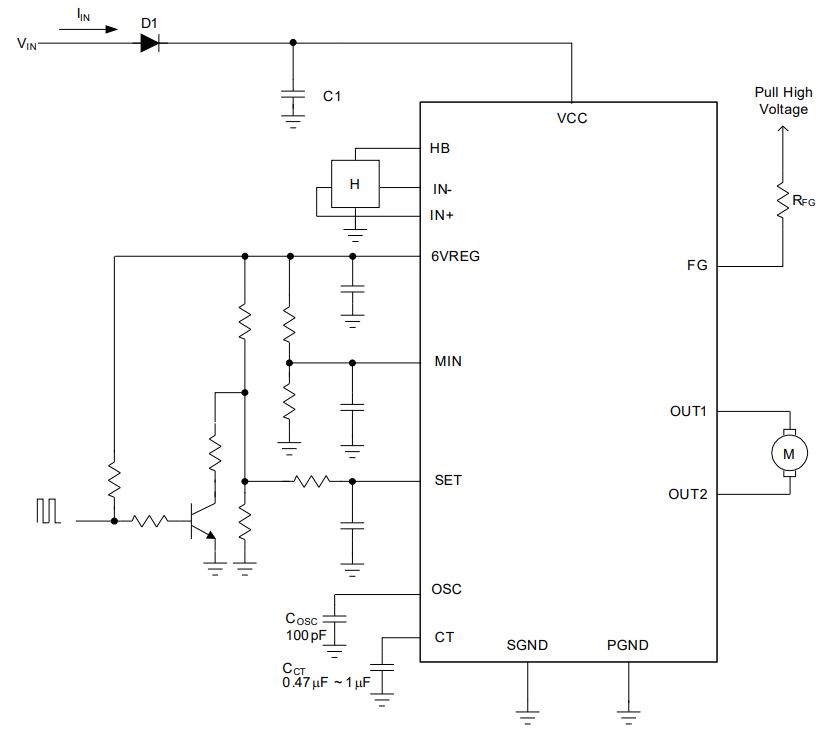

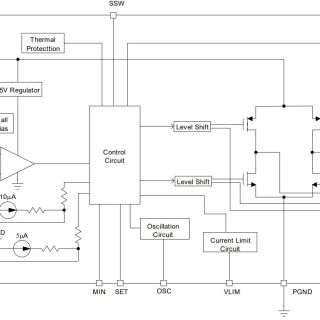

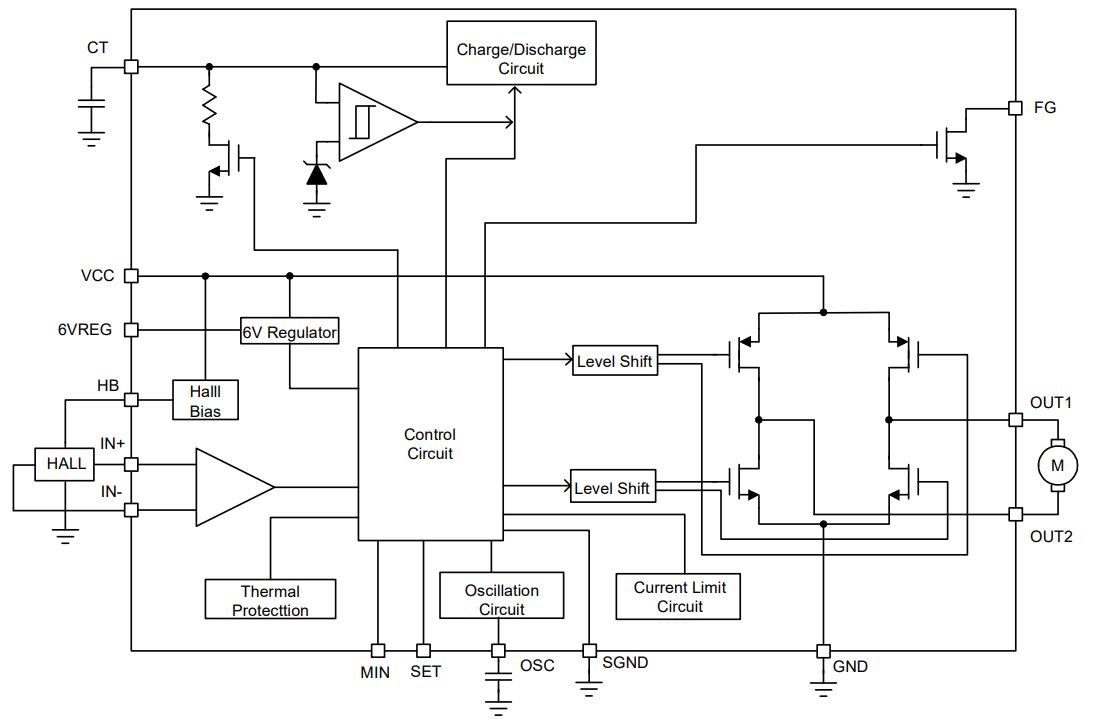

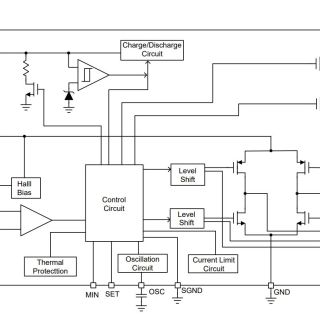

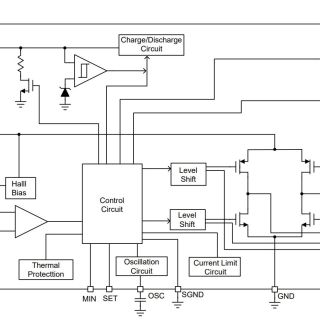

APX9292
Active
Single-Phase Full-Wave Motor Driver for Fan Motor
Features
General Description
The APX9292 is a single phase full wave DC brushless motor driver with PWM variable speed control and current limit features suitable for the fan of personal computer’s power supply and CPU cooler. The device is built-in lock protection. When fan is locked, the device will enter the lockup protection mode. It is also with rotation detection output and thermal shutdown function. In normal operation, supply current is 4mA. The APX9292 is available in SSOP-16 and TSSOP-16 packages.
Features
- Single Phase Full Wave Fan Driver
- Low Supply Current
- Built-In Variable Speed Function
- Include Hall Bias Circuit
- Built-In Lock Protection and Auto Restart Function
- FG Output
- Built-In Current Limit Circuit
- Built-In Thermal Protection Circuit
- SSOP-16 and TSSOP-16 Packages
- Lead Free and Green Devices Available (RoHS Compliant)
General Description

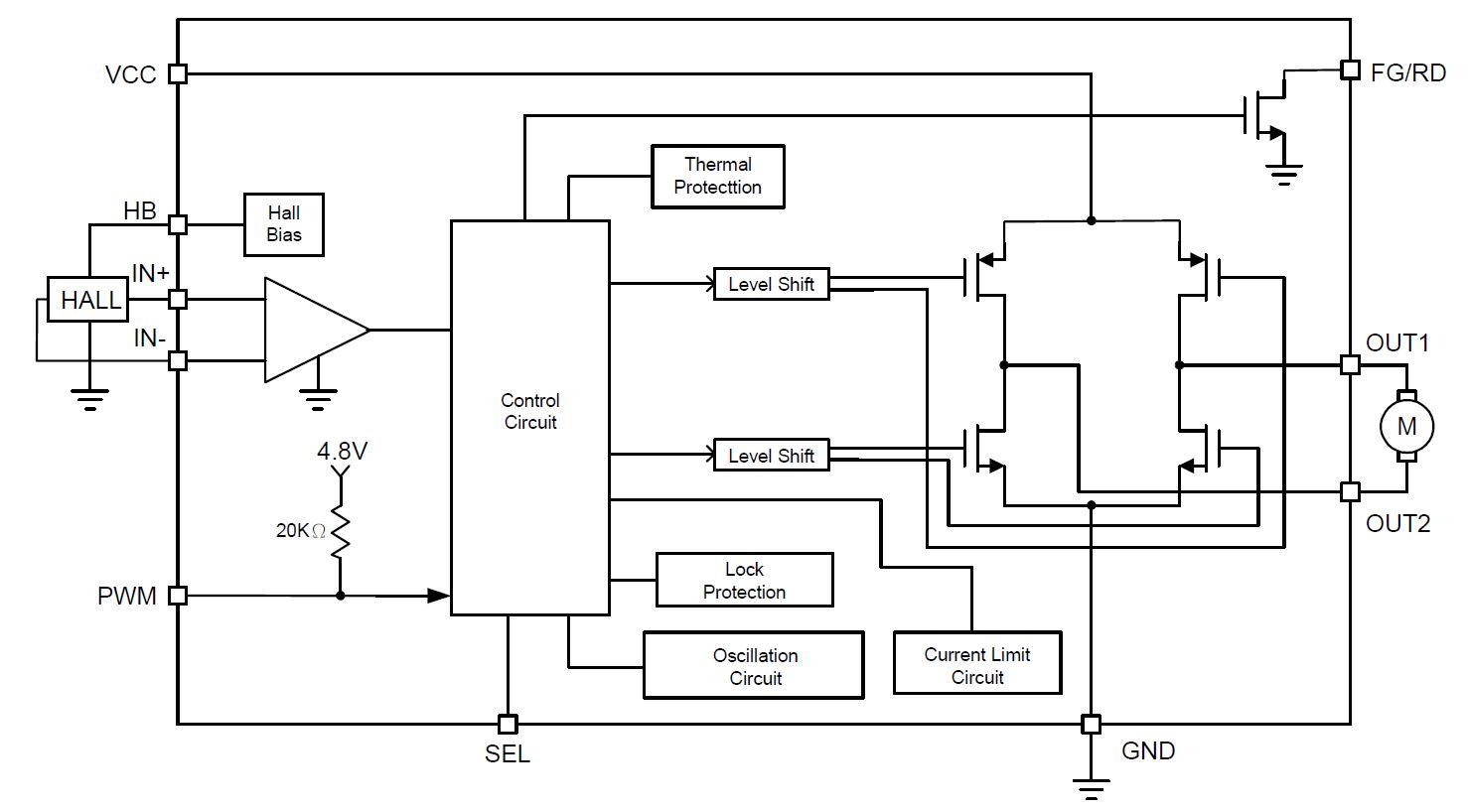

The APX9292 is a single phase full wave DC brushless motor driver with PWM variable speed control and current limit features suitable for the fan of personal computer’s power supply and CPU cooler. The device is built-in lock protection. When fan is locked, the device will enter the lockup protection mode. It is also with rotation detection output and thermal shutdown function. In normal operation, supply current is 4mA. The APX9292 is available in SSOP-16 and TSSOP-16 packages.

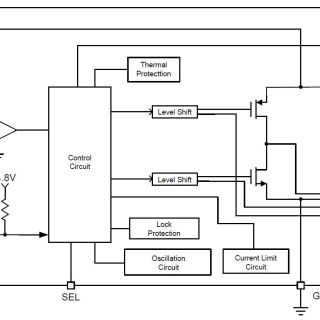

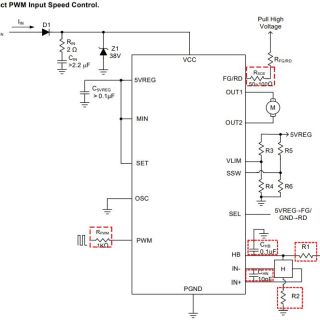

APX9766A
Active
Single-Phase Full-Wave Motor Driver for Fan Motor
Features
General Description

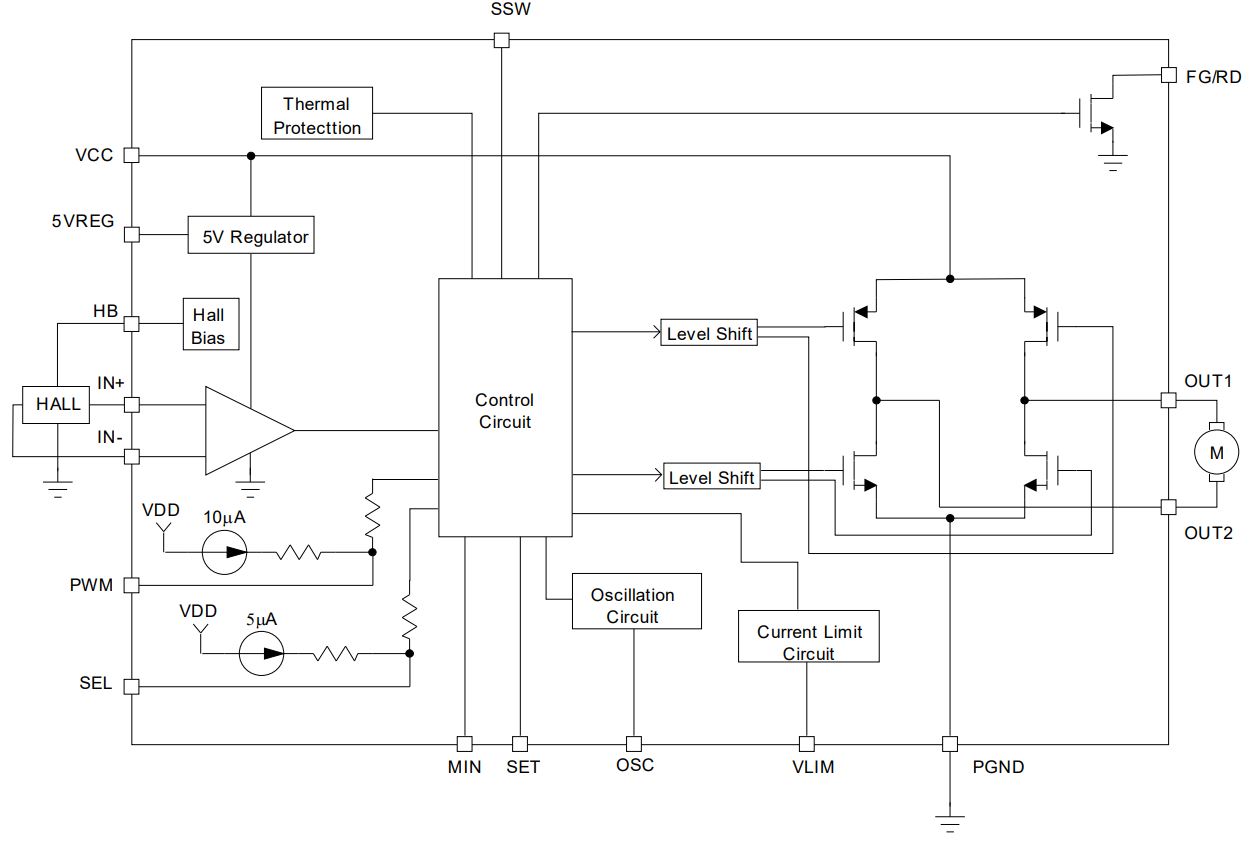

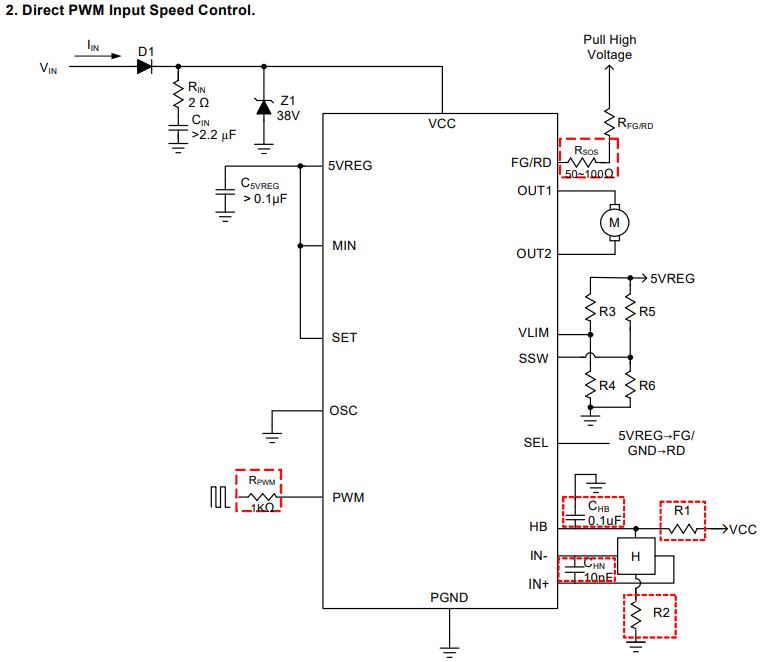

The APX9766A is a single phase full wave DC brushless motor driver with PWM variable speed control and current limit features suitable for the fan of personal computer’s power supply and CPU cooler. The PWM control system fixed input and output duty through internal OTP block setting. The device is equipped with a built-in lock protection, which protects the fan when it is locked. It also has rotation speed detection output and thermal protection function. The APX9766A is available in SOP-10 and TSSOP-14 package (see Pin Configuration).
Features
- Single Phase Full Wave Fan Driver
- Low Quiescent Current
- Built-in Variable Speed Function
- OTP Setting ShutDown Mode or Minimum speed mode
- OTP Setting Minimum Input and Ouput Duty
- OTP Setting Maximum Input Duty for Full Duty
- Output or Setting Maximum Output Duty for 100% PWM Input
- OTP Setting Enable Soft Start Function
- Current Limit Circuit
- Built-in Lock Protection and Auto Restart Function

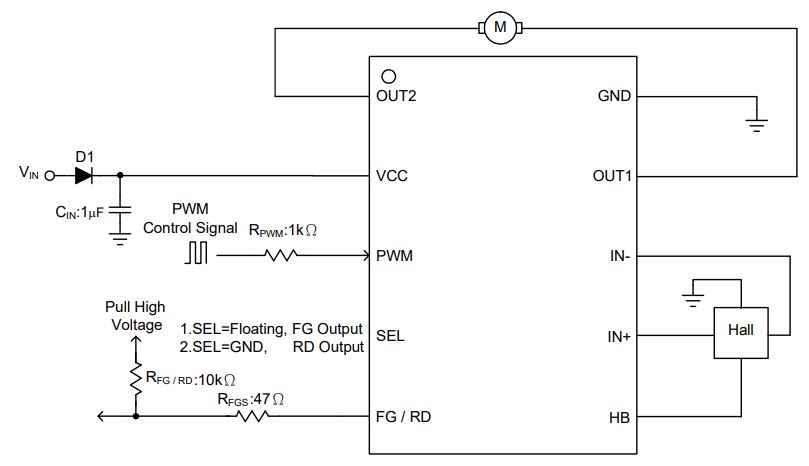

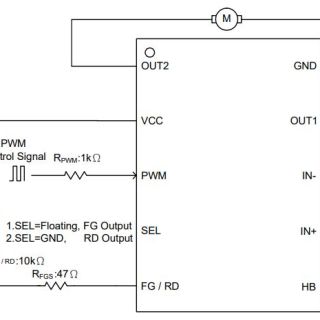

- FG Output (SEL floating) or RD Output (SEL GND)
- Built-in Thermal Protection Circuit
- Lead Free and Green Device Available (RoHS Compliant)
General Description
The APX9766A is a single phase full wave DC brushless motor driver with PWM variable speed control and current limit features suitable for the fan of personal computer’s power supply and CPU cooler. The PWM control system fixed input and output duty through internal OTP block setting. The device is equipped with a built-in lock protection, which protects the fan when it is locked. It also has rotation speed detection output and thermal protection function. The APX9766A is available in SOP-10 and TSSOP-14 package (see Pin Configuration).
