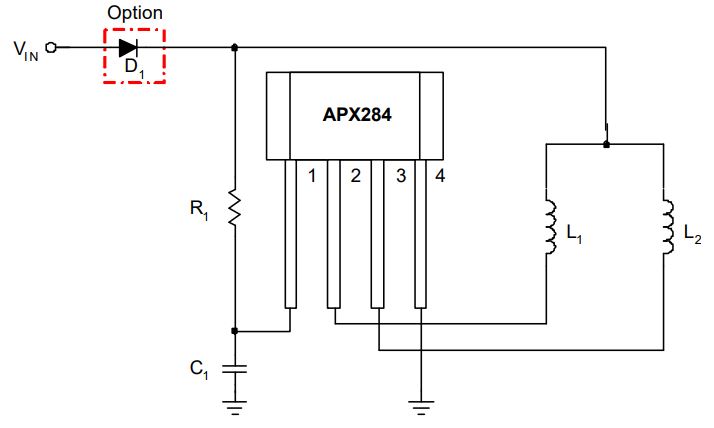

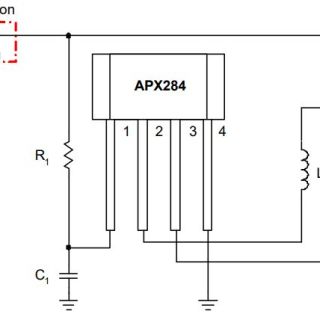

APX284
Active
High Sensitivity Hall IC for FAN Driver
Features
General Description
The APX284 is an integrated Hall Effect Sensor IC designed for electric commutation of two-phase DC brushless motor applications. The device is built-in lock protection. When the fan is locked, the device will enter the lock protection mode. The APX284 is available in a low cost TO-92M4 package.
Features
- On-Chip Hall Sensor
- Low Operating Supply Voltage: 2.7V
- High Sensitivity Hall Effect Sensor IC: ±20G (Type.)
- Soft-Switch to Reduce Phase-Switching Noise
- Built-In Output Protection Clamping Circuit
- Lock Protection and Auto Restart Function
- Built-In Thermal Protection Circuit
- 4 Pin TO-92M4 and 5 Pin TSOT-23-5F Packages
- Lead Free and Green Devices Available (RoHS Compliant)
General Description
The APX284 is an integrated Hall Effect Sensor IC designed for electric commutation of two-phase DC brushless motor applications. The device is built-in lock protection. When the fan is locked, the device will enter the lock protection mode. The APX284 is available in a low cost TO-92M4 package.

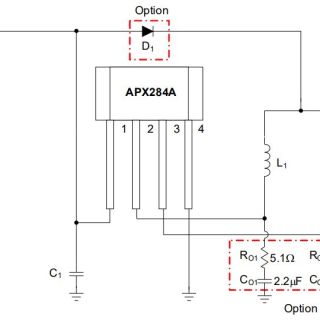

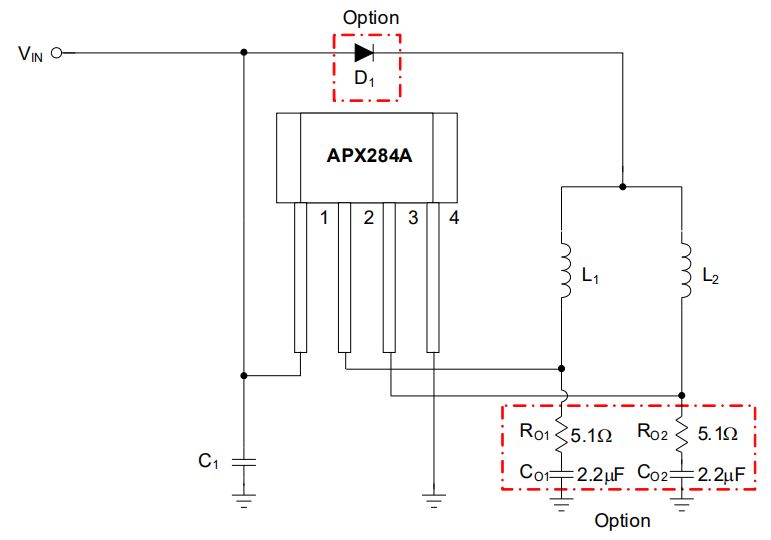

APX284A
Active
High Sensitivity Hall IC for FAN Driver
Features
General Description
The APX284A is an integrated Hall Effect Sensor IC designed for electric commutation of two-phase DC brushless motor applications. The device is built-in lock protection. When the fan is locked, the device will enter the lock protection mode. The APX284A is available in a low cost TO-92M4 package.
Features
- On-Chip Hall Sensor
- Low Operating Supply Voltage: 3V
- High SensitivityHall Effect Sensor IC: ±30G (Type.)
- Built-In Reverse Voltage Protection Diode
- Built-In Output Protection Clamping Circuit
- Lock Protection and Auto Restart Function
- Built-In Thermal Protection Circuit
- 4 Pin TO-92M4 Package
- Lead Free and Green Devices Available (RoHS Compliant)
General Description
The APX284A is an integrated Hall Effect Sensor IC designed for electric commutation of two-phase DC brushless motor applications. The device is built-in lock protection. When the fan is locked, the device will enter the lock protection mode. The APX284A is available in a low cost TO-92M4 package.

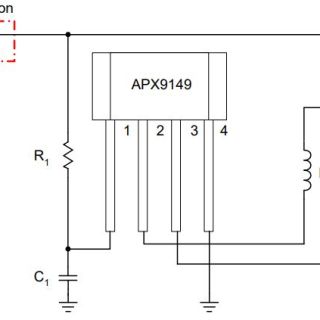

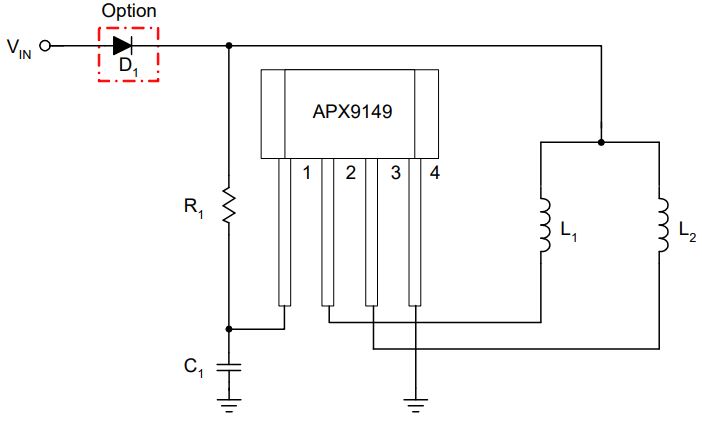

APX9149
Active
High Sensitivity Hall IC for FAN Driver
Features
General Description
The APX9149 is an integrated Hall Effect Sensor IC designed for electric commutation of two-phase DC brushless motor applications. In DC fan applications, the APX9149 provides lower driving current under 7.5V (typ.) VDD supply voltage for low noise applications. The device is built-in lock protection. When the fan is locked, the device will enter the lock protection mode. The APX9149 is available in a low cost TO-92M4 package.
Features
- On-Chip Hall Sensor
- Low Operating Supply Voltage: 2.5V
- Lower Speed Under 7.5V (Typ.) VDD Supply Voltage
- High Sensitivity Hall Effect Sensor IC: ±20G (Type.)
- Soft-Switch to Reduce Phase-Switching Noise
- Built-In Output Protection Clamping Circuit
- Lock Protection and Auto Restart Function
- Built-In Thermal Protection Circuit
- 4 Pin TO-92M4 Package
- Lead Free and Green Devices Available (RoHS Compliant)
General Description
The APX9149 is an integrated Hall Effect Sensor IC designed for electric commutation of two-phase DC brushless motor applications. In DC fan applications, the APX9149 provides lower driving current under 7.5V (typ.) VDD supply voltage for low noise applications. The device is built-in lock protection. When the fan is locked, the device will enter the lock protection mode. The APX9149 is available in a low cost TO-92M4 package.

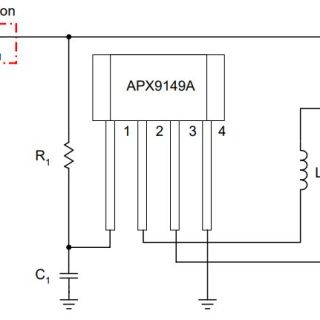

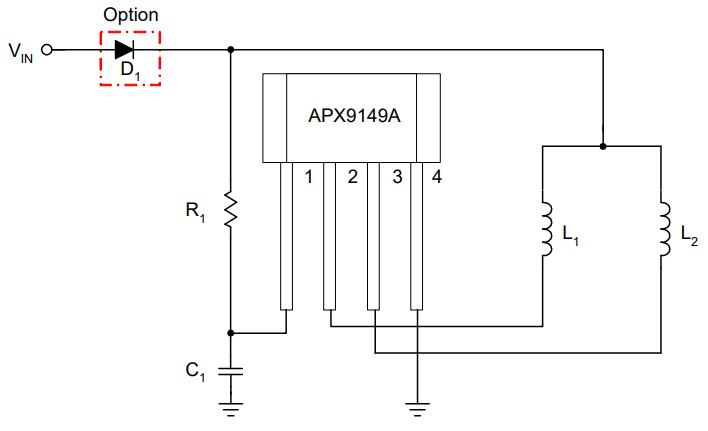

APX9149A
Active
High Sensitivity Hall IC for FAN Driver
Features
General Description
The APX9149A is an integrated Hall Effect Sensor IC designed for electric commutation of two-phase DC brushless motor applications. In DC fan applications, the APX9149A provides lower driving current under 7.5V (typ.) VDD supply voltage for low noise applications. The device is built-in lock protection. When the fan is locked, the device will enter the lock protection mode. The APX9149A is available in a low cost TO-92M4 package.
Features
- On-Chip Hall Sensor
- Low Operating Supply Voltage: 2.5V
- Lower Speed Under 7.5V(Typ.) VDD Supply Voltage
- High Sensitivity Hall Effect Sensor IC: ±20G(Type.)
- Soft-Switch to Reduce Phase-Switching Noise
- Built-In Output Protection Clamping Circuit
- Lock Protection and Auto Restart Function
- Built-In Thermal Protection Circuit
- 4 Pin TO92-M4 Package
- Lead Free and Green Devices Available (RoHS Compliant)
General Description
The APX9149A is an integrated Hall Effect Sensor IC designed for electric commutation of two-phase DC brushless motor applications. In DC fan applications, the APX9149A provides lower driving current under 7.5V (typ.) VDD supply voltage for low noise applications. The device is built-in lock protection. When the fan is locked, the device will enter the lock protection mode. The APX9149A is available in a low cost TO-92M4 package.

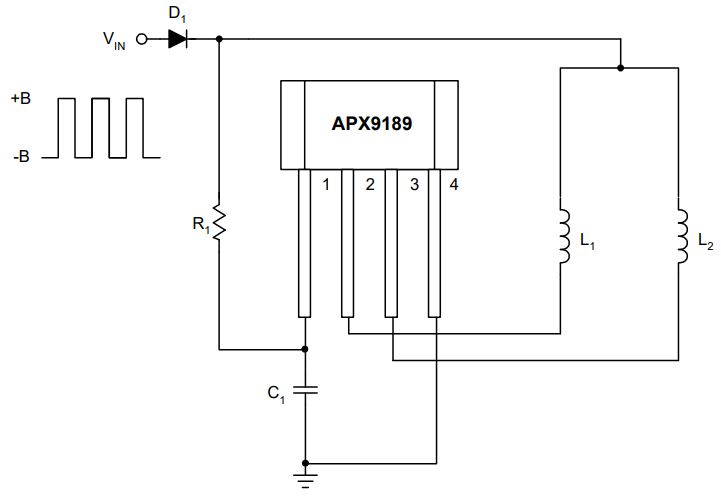

APX9189
Active
12V/24V High Sensitivity Hall IC for FAN Driver
Features
General Description
The APX9189 is an integrated Hall Effect Sensor IC designed for electric commutation of two-phase DC brushless motor applications. The device is built-in lock protection. When fan is locked, the device will enter the lock protection mode. The APX9189 is available in a low cost TO-92M4 package.
Features
- On-Chip Hall Sensor
- 12V/24V Operating Supply Voltage Available
- High Sensitivity Hall Effect Sensor IC: ±60G
- Built-in Output Protection Clamping Circuit
- Lock Protection and Auto Restart Function
- 4 Pin TO-92M4 Package
- Lead Free and Green Devices Available (RoHS Compliant)
General Description
The APX9189 is an integrated Hall Effect Sensor IC designed for electric commutation of two-phase DC brushless motor applications. The device is built-in lock protection. When fan is locked, the device will enter the lock protection mode. The APX9189 is available in a low cost TO-92M4 package.
